LogiLink SlimLine Cat.6A S/FTP LSZH patch-kaapeli, 15 m, sininen

Experience 10 Gigabit Ethernet at 500 MHz with this ultra-slim Cat.6A patch cable. The S/FTP shielding with individually foiled pairs and overall braid virtually eliminates alien crosstalk, while the 3.8 mm LSZH jacket fits into high-density racks where standard cables won't.

Overview

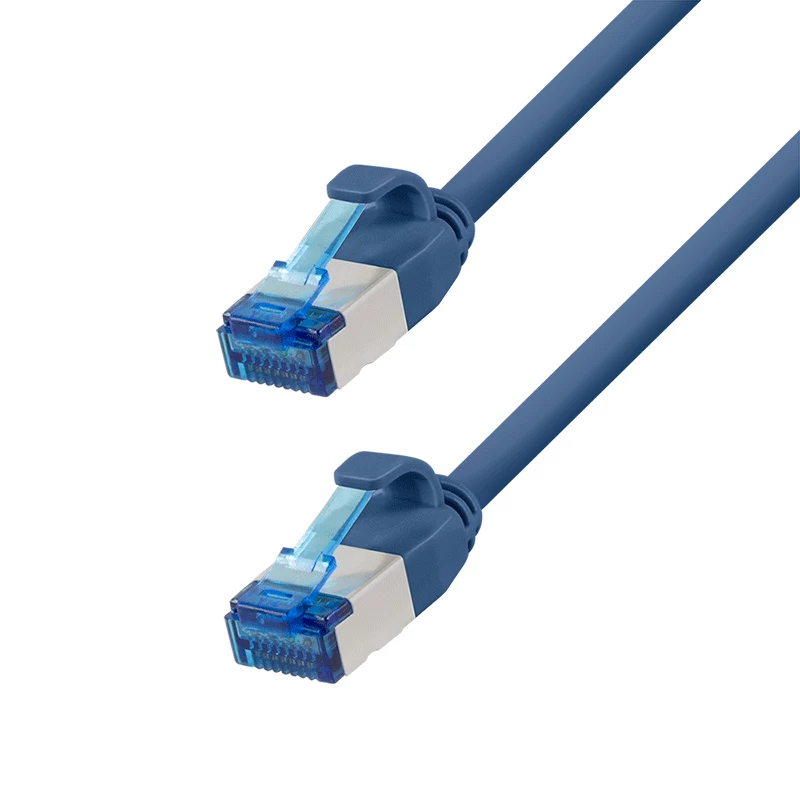

The LogiLink SlimLine CP5106S is a premium Cat.6A patch cable engineered for demanding network environments. At 15 meters, it provides ample reach for structured cabling between patch panels, switches, and workstations. The cable meets ISO/IEC 11801 and TIA/EIA 568-C.2 standards, ensuring reliable performance in 10GBASE-T applications.

What stands out

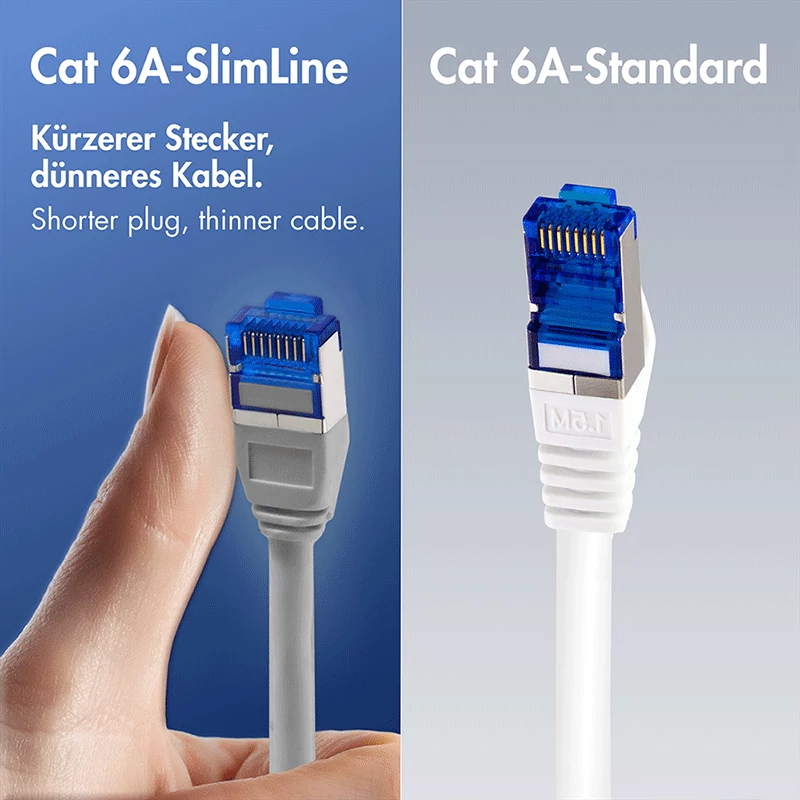

• Ultra-slim 3.8 mm diameter for improved airflow and easier cable management in dense racks
• S/FTP construction: each pair individually shielded with metal foil plus an overall braid for maximum EMI immunity
• LSZH jacket emits low smoke and zero halogen, making it safe for enclosed spaces and public buildings
• Gold-plated RJ45 connectors (50µ) resist corrosion and ensure consistent contact over thousands of insertions
• Snagless molded boots protect the locking tab during installation and removal

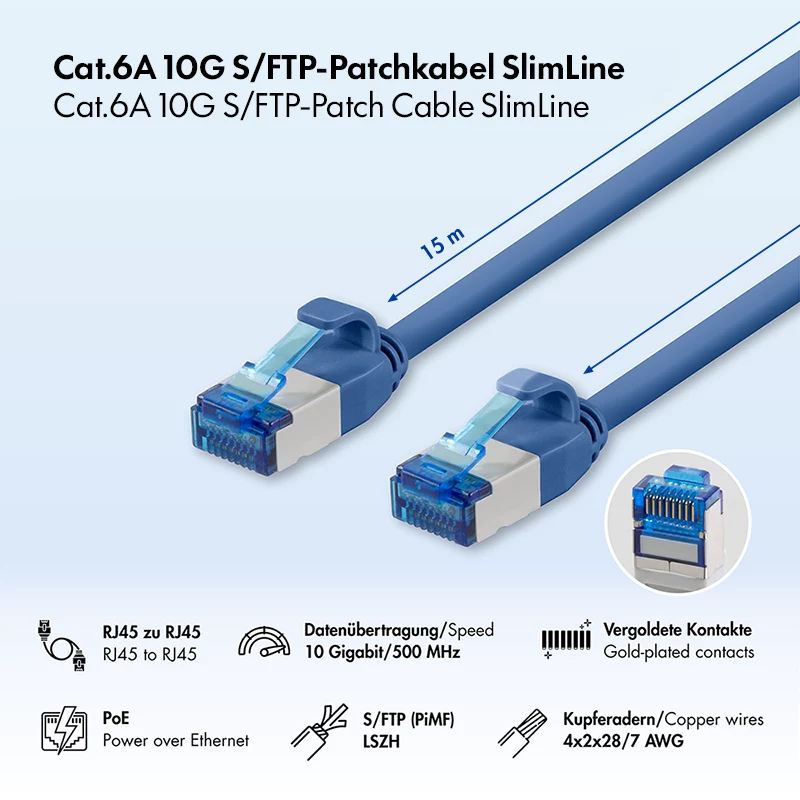

Technical details

• Category: Cat.6A (Class EA)
• Shielding: S/FTP (PiMF)
• Length: 15 m
• Conductor: 28 AWG stranded copper
• Bandwidth: up to 500 MHz
• Data rate: 10 Gbps
• Wiring: TIA/EIA 568B
• Jacket: LSZH (Low Smoke Zero Halogen)
• Connector: RJ45 male to male, 8P8C
• Operating temperature: -20°C to +60°C
• Compliance: ISO/IEC 11801, EN 50173, TIA/EIA 568-C.2

Our verdict

For high-density 10G networking, the LogiLink SlimLine Cat.6A cable offers an exceptional balance of performance, flexibility, and safety. Its slim profile and robust shielding make it a top choice for data centers and enterprise installations.
