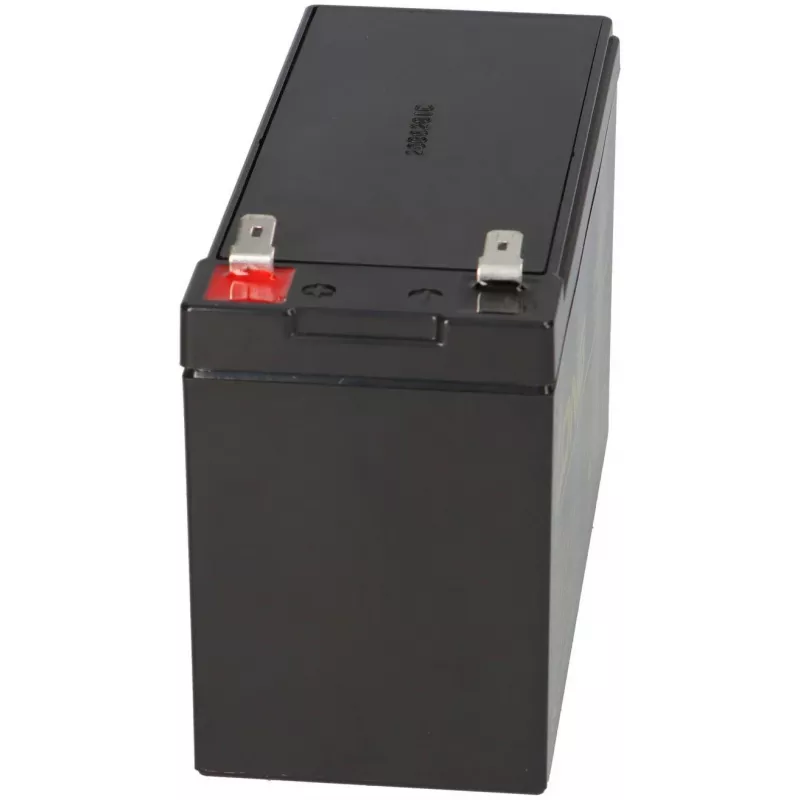

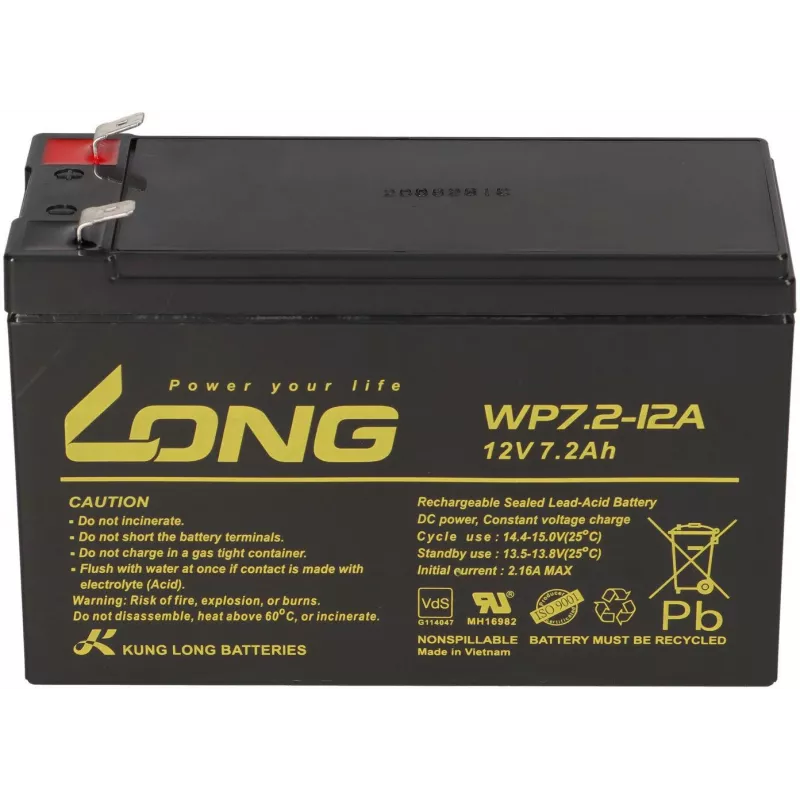

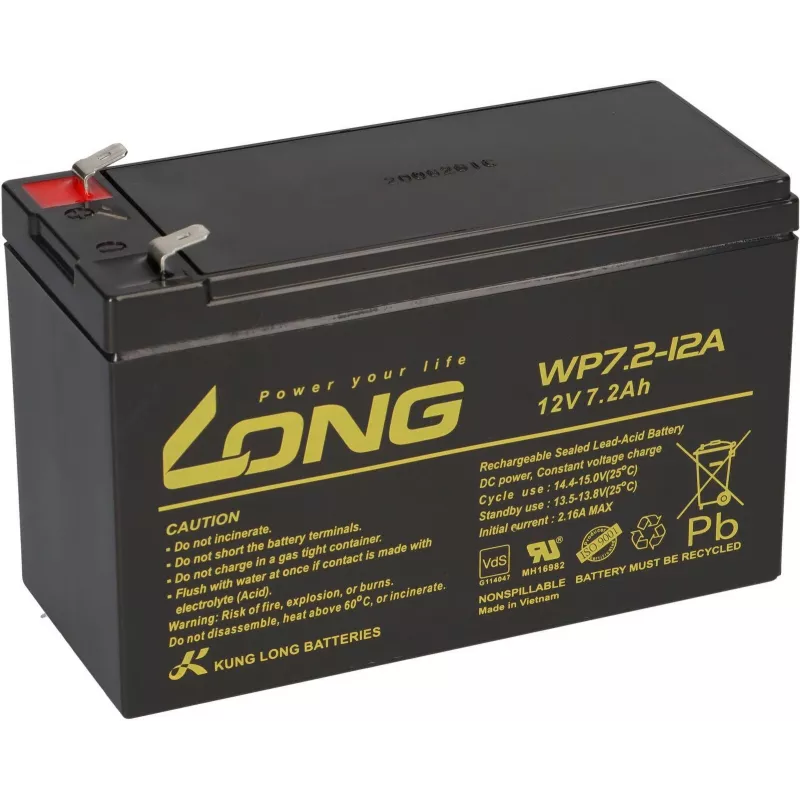

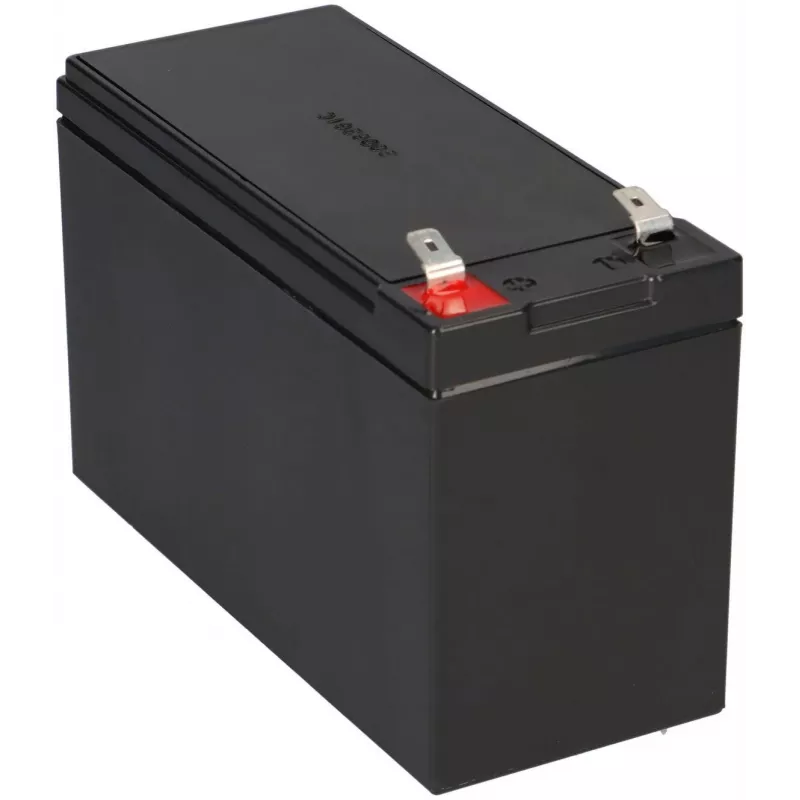

LONG WP7.2-12A AGM-akku 12V 7,2Ah VdS

The LONG WP7.2-12A is a high-quality AGM (Absorbed Glass Mat) sealed lead-acid battery, designed for reliable standby and cyclic power applications. With a nominal voltage of 12V and a capacity of 7.2Ah (C20), this VRLA battery is VdS certified (G109098) for safety and performance. It features F1 (Faston 187) terminals and a compact design, making it ideal for alarm systems, emergency lighting, UPS, and other backup power needs.

Advantages

Maintenance-free operation with immobilized electrolyte, low self-discharge rate (less than 3% per month at 25°C), and a design life of 3-5 years in standby use. The AGM technology ensures high discharge rates and excellent recovery after deep discharge.

Suitable for

• Alarm and security systems (VdS approved)
• Emergency lighting
• Uninterruptible power supplies (UPS)
• Telecommunications equipment
• Medical devices
• Portable power tools and toys

Key specifications

• Battery Type: AGM (Sealed Lead-Acid, VRLA)
• Nominal Voltage: 12 V
• Nominal Capacity: 7.2 Ah (C20)
• Terminal Type: F1 (Faston 187 / 4.75mm)
• VdS Certification: Yes (G109098)
• Design Life: 3-5 years (Eurobat classification)
• Max. Discharge Current (5 sec): 108 A
• Internal Resistance: Approx. 25 mΩ (at 25°C)
• Operating Temperature Range (Discharge): -15°C to 50°C
• Operating Temperature Range (Charge): -15°C to 40°C
• Operating Temperature Range (Storage): -15°C to 40°C
• Self-Discharge Rate: <3% per month at 25°C
• Charging Voltage (Standby Use): 13.5 - 13.8 V
• Charging Voltage (Cycle Use): 14.4 - 15.0 V
• Max. Charging Current: 2.16 A (0.3C)
• Electrolyte: Sulfuric Acid (immobilized)
• Housing Material: ABS (UL94-HB)

Recommendations

For optimal performance and longevity, charge the battery with a compatible 12V charger. Store in a cool, dry place. Ensure proper ventilation during charging. This battery is a direct replacement for many 12V 7Ah SLA batteries.
