M12-liitin A-koodattu 8-napainen liitin DeLOCK 60538 ruuviliitäntä

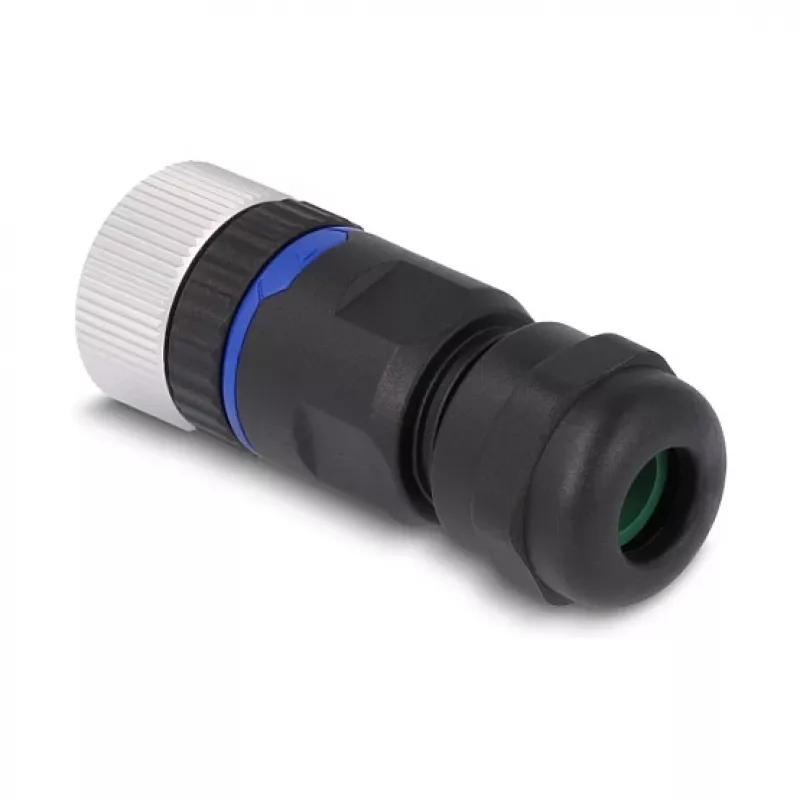

The DeLOCK M12 Connector A-coded 8 pin female (model 60538) provides a secure screw terminal connection for linking cables to devices with an M12 interface. Constructed with a robust metal housing and measuring 52 mm wide by 20 mm deep, this connector is intended for machine control, automation and other industrial applications that require reliable connectivity.

Advantages

The connector offers a durable metal construction and A-coded M12 design for standardized interfacing. The screw terminal contact enables straightforward, tool-assisted cable termination without soldering. Compact dimensions and a female 8-pin configuration allow integration into confined installation spaces while supporting multi-conductor connections.

Suitable for

• Machine control systems
• Industrial automation equipment
• Sensor and actuator cabling
• Signal and data connections in control cabinets

Key specifications

• Manufacturer: DELOCK
• Model / MPN: 60538
• EAN: 4043619605385
• Connector type: M12 A-coded female, 8 pin
• Termination: Screw terminal
• Housing material: Metal
• Dimensions (W x D): 52 mm x 20 mm
• Colour: Black, Silver

How to use

Strip the cable conductors to the required length, insert each conductor into the appropriate screw terminal and tighten the screws to secure the connection. Align the M12 female connector with the mating male connector and engage by turning until the coupling is fully seated. Verify proper contact and strain relief before powering the system.

Recommendations

Use appropriate wire cross-sections and torque values for the screw terminals as specified by your installation standards. Ensure the mating connector is compatible with A-coded M12 female 8-pin configurations and verify environmental requirements (e.g., IP rating) for the intended application.
