Synergy 21 LED-virtalähde - CC-ajuri 1400mA 42V Meanwell

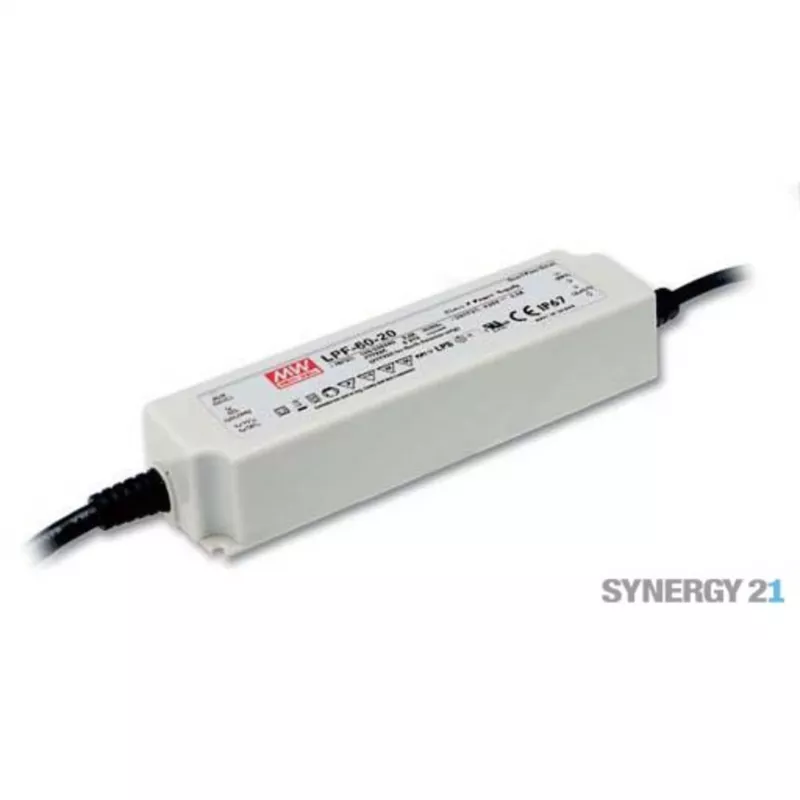

The Synergy 21 LED Power Supply, based on the Meanwell LPF-60-42, is a high-performance constant current (CC) / constant voltage (CV) driver designed for professional LED lighting applications. With an output of 60W at 42V DC and a constant current of 1430mA, it delivers stable and efficient power for a wide range of LED fixtures. This IP67-rated driver is fully encapsulated in a plastic case, making it waterproof and dustproof, ideal for both indoor and outdoor use.

Advantages

This LED driver offers exceptional reliability and versatility. It features 3-in-1 dimming (0-10VDC, PWM signal, resistance) for precise light control. With a high efficiency of 90% and a power factor >0.95, it reduces energy costs and meets stringent energy regulations. The wide input voltage range (90-305V AC) ensures global compatibility, while comprehensive protections (short circuit, over current, over voltage, over temperature) guarantee long-lasting performance.

Suitable for

• LED lighting systems requiring constant current or constant voltage
• Outdoor and indoor LED fixtures (e.g., street lights, floodlights, panel lights)
• Commercial and industrial lighting installations
• Dimmable LED applications with 0-10V, PWM, or resistance control

Key specifications

• Brand: Meanwell
• Model: LPF-60-42
• Output Power: 60W
• Output Current: 1430mA (1.43A)
• Output Voltage: 42V DC (Constant Current Mode Range: 21-42V DC)
• Input Voltage: 90-305V AC / 127-431V DC
• Driver Type: Constant Current (CC) / Constant Voltage (CV)
• Dimming: 3-in-1 (0-10VDC, PWM, resistance)
• IP Rating: IP67
• Efficiency: 90% (at 230VAC full load)
• Power Factor: >0.95
• Protections: Short Circuit, Over Current, Over Voltage, Over Temperature
• Operating Temperature: -40 to +85°C (Case Temperature)
• Certifications: UL, CUL, TUV, CE, CB, RCM
• Housing Material: Fully encapsulated plastic case
• Electrical Safety Class: Class II (no FG)
• Setup Time: 500ms / 230VAC (full load)
• Ripple & Noise: 150mVp-p (max)
• Frequency Range: 47-63 Hz

Recommendations

For optimal performance, ensure the LED load is within the specified constant current range (21-42V DC) and total power does not exceed 60W. Use with compatible dimming controllers for 0-10V, PWM, or resistance dimming. Suitable for outdoor installations due to IP67 rating.
