MENNEKES 400 pinta-asennettava kojerasia 16A 5-napainen 6h 400V IP44 punainen

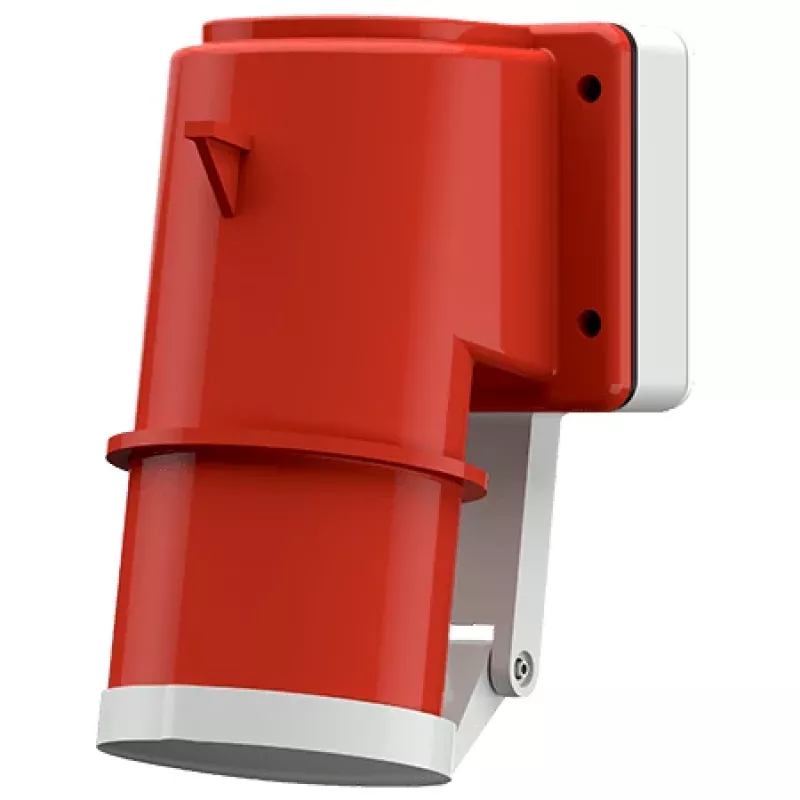

Rated at 16 A and 400 V with a 5-pole (3P+N+PE) configuration and 6h hour position, this MENNEKES 400 surface-mounted appliance inlet delivers reliable three-phase power in demanding environments. The IP44 splash-proof housing and screw terminals make it a robust choice for fixed wiring installations.

Overview

The MENNEKES 400 is a CEE surface-mounted appliance inlet designed for industrial and commercial applications. It features a red polyamide housing with brass/nickel-plated contacts, conforming to IEC 60309-1 and IEC 60309-2 standards. The 6h hour position ensures correct voltage and frequency matching for 400 V systems.

What stands out

• 16 A current rating for reliable power delivery
• 5-pole (3P+N+PE) configuration for three-phase with neutral and earth
• IP44 splash-proof protection for indoor and sheltered outdoor use
• Screw terminals for secure, maintenance-free connections
• Surface-mounted design with 75 x 75 mm flange and 60 x 60 mm hole spacing

Technical details

• Connector type: CEE surface-mounted appliance inlet
• Current rating: 16 A
• Voltage rating: 400 V
• Frequency: 50/60 Hz
• Number of poles: 5 (3P+N+PE)
• Hour position: 6 h
• Protection class: IP44
• Connection technology: screw terminals
• Housing material: polyamide
• Contact material: brass / nickel-plated brass
• Mounting type: surface-mounted
• Colour: red
• Standards: IEC 60309-1, IEC 60309-2
• Rated impulse voltage: 6 kV
• Operating temperature range: -25 °C to +40 °C
• Flange dimensions: 75 x 75 mm
• Mounting hole spacing: 60 x 60 mm
• Cable entry: rear (for fixed wiring)

Our verdict

A dependable, standards-compliant inlet for 400 V three-phase installations, built to withstand everyday industrial use.
