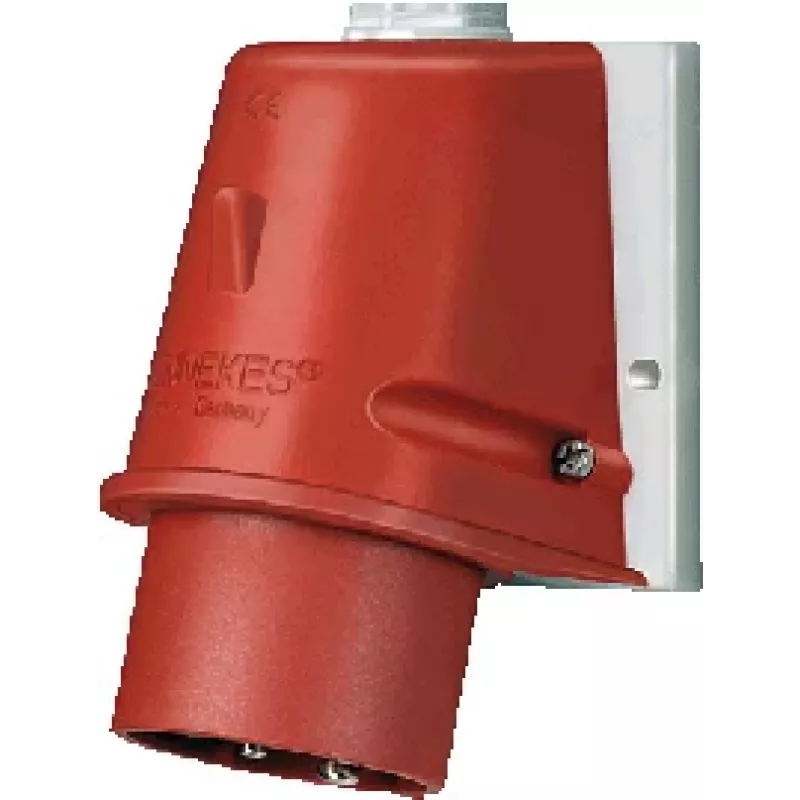

MENNEKES 804 CEE-laitepistoke 5-napainen 32A 400V 6h IP44 ruuviliittimet kulma

CEE device plug for industrial power connections, delivering a robust 32 A at 400 V with a 5-pole configuration and 6h earth contact position. The right-angled design with screw terminals ensures a secure and space-efficient connection in demanding environments.

Advantages

IP44 protection guards against splashing water and solid objects larger than 1 mm, while the self-extinguishing plastic housing enhances safety. The red colour coding indicates a 400 V three-phase supply, and the 6h earth contact prevents mismating with different voltages.

Suitable for

• Industrial machinery and equipment
• Commercial power distribution systems
• Three-phase 400 V applications
• Wet or dusty environments requiring IP44

Key specifications

• Product type: CEE device plug
• Number of poles: 5-pole
• Rated current: 32 A
• Rated voltage: 400 V
• Earth contact position: 6h
• Ingress protection: IP44
• Connection technology: Screw terminals
• Design: Right-angled
• Housing material: Plastic
• Colour: Red
• Frequency range: 50/60 Hz
• Standard: IEC 60309-1, IEC 60309-2
• Gender: Male plug
• Application area: Industrial, commercial
• Mounting type: Device mounting
• Flammability rating: Self-extinguishing

Recommendations

Ideal for connecting equipment to 400 V three-phase supplies where a right-angled plug saves space and IP44 protection is required.
