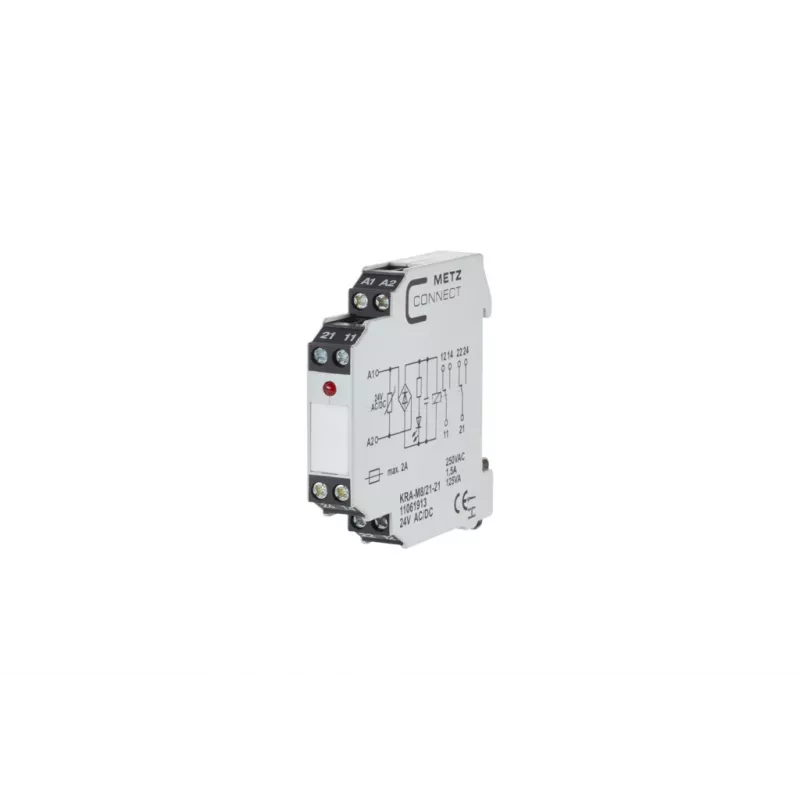

METZ CONNECT 11061913 liitäntärelemoduuli, 24 V AC kela, 1 vaihtokosketin, 6 A, valkoinen

Industrial control systems often demand reliable switching of high-power loads from low-power control signals. The METZ CONNECT 11061913 interface relay module bridges this gap, converting a 24 V AC control signal into a robust 250 V AC / 6 A switched output. Its slim 11.2 mm housing saves valuable DIN rail space, while the AgNi contact ensures long-term durability in demanding environments.

Who is it for

This relay module is ideal for electrical engineers, panel builders, and maintenance technicians working in industrial automation, building management, and HVAC systems. It suits applications where a PLC or controller output must drive contactors, valves, or other loads requiring galvanic isolation and higher current capacity.

Main features

• 1 changeover contact (SPDT) with 6 A / 250 V AC rating
• 24 V AC coil voltage for direct integration with common control circuits
• Compact 11.2 mm width for high-density DIN rail mounting
• Silver nickel (AgNi) contacts for excellent conductivity and arc resistance
• Wide operating temperature range from -20 °C to 55 °C
• Screw terminals for secure, maintenance-friendly wiring
• IP20 protection suitable for control cabinet installation

Specifications

• Product type: Interface relay module
• Contact configuration: 1 changeover (SPDT)
• Coil voltage: 24 V AC
• Contact rating: 250 V AC / 6 A
• Switching capacity: 1500 VA
• Electrical life: 100,000 operations
• Mechanical life: 10,000,000 operations
• Mounting: DIN rail
• Connection: Screw terminals
• Protection class: IP20
• Contact material: AgNi
• Operating temperature: -20 °C to 55 °C

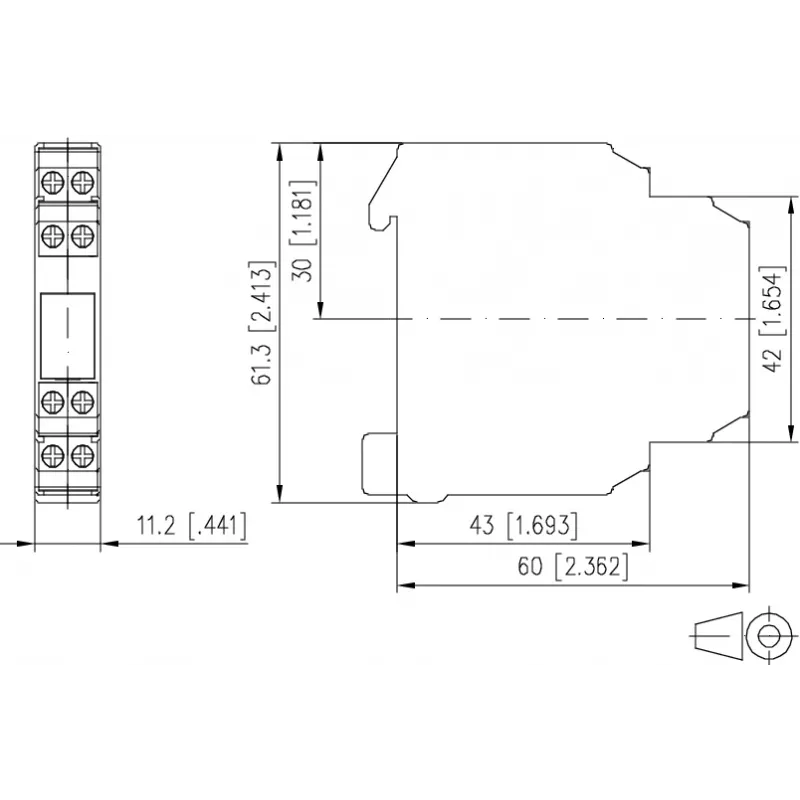

• Dimensions (W x D x H): 11.2 x 60 x 61.3 mm
• Weight: 45 g
• Colour: White

Tips

When installing, ensure the coil voltage matches your control signal to prevent premature failure. Use appropriate wire ferrules for screw terminals to maintain reliable connections. For inductive loads, consider adding a snubber or varistor across the contact to extend relay life. The module's slim profile allows side-by-side mounting without derating, but maintain adequate ventilation in the enclosure.
