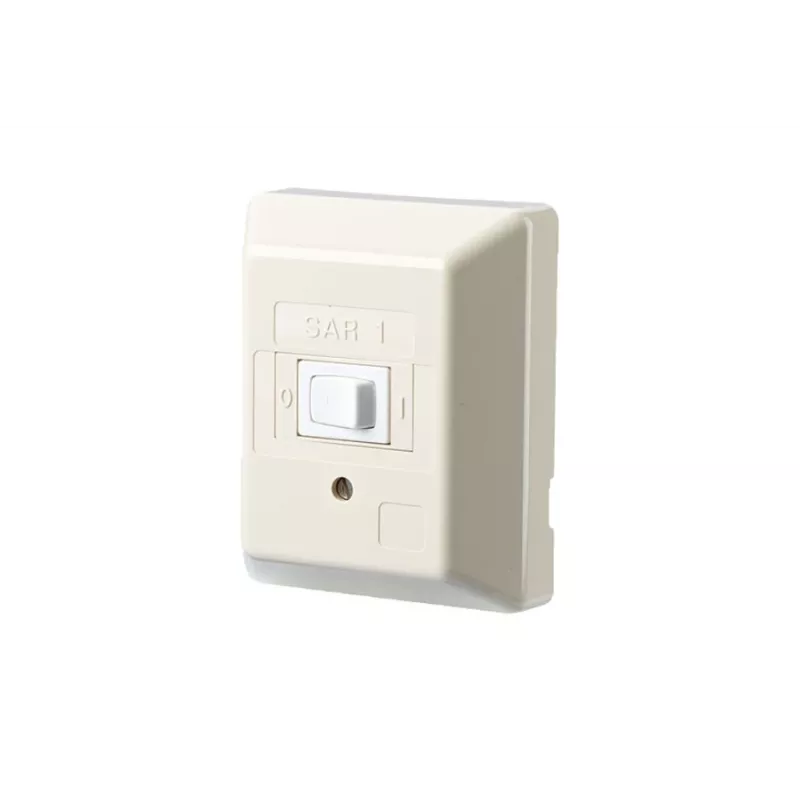

METZ CONNECT SAR 1 AP vaiherele 230 V AC 16 A 1 vaihtokosketin DIN-kisko

The METZ CONNECT SAR 1 AP is a high-quality switching relay designed for reliable control of electrical loads. With a rated switching voltage of 250 V AC and a rated current of 16 A, it is suitable for a wide range of industrial and commercial applications. The relay features a 1 changeover contact (SPDT) and is controlled by a 230 V AC coil. Its compact DIN rail mounting (1 TE) saves space in control cabinets.

Advantages

Robust AgSnO2 contact material ensures long service life and high switching capacity. Integrated LED indicator provides clear visual status feedback. Screw terminals allow secure and easy wiring. VDE and CE certified for safety and compliance.

Suitable for

• Industrial automation and control systems
• Building management and lighting control
• Heating, ventilation, and air conditioning (HVAC) systems
• Machine and plant engineering

Key specifications

• Relay type: Switching relay
• Contact configuration: 1 changeover (SPDT)
• Rated switching voltage: 250 V AC
• Rated switching current: 16 A
• Control voltage (coil): 230 V AC
• Max. switching capacity (resistive): 4000 VA
• Contact material: AgSnO2
• Mounting: DIN rail (1 TE)
• Connection: Screw terminals
• Operating temperature: -20°C to +55°C
• Protection class: IP20
• Power consumption: 1.5 VA
• LED status indicator: Yes
• Width: 1 TE (17.5 mm)
• Certifications: VDE, CE

Recommendations

For optimal performance, ensure the relay is installed in a clean, dry environment within the specified temperature range. Use appropriate cable cross-sections and torque settings for screw terminals as per manufacturer guidelines.
