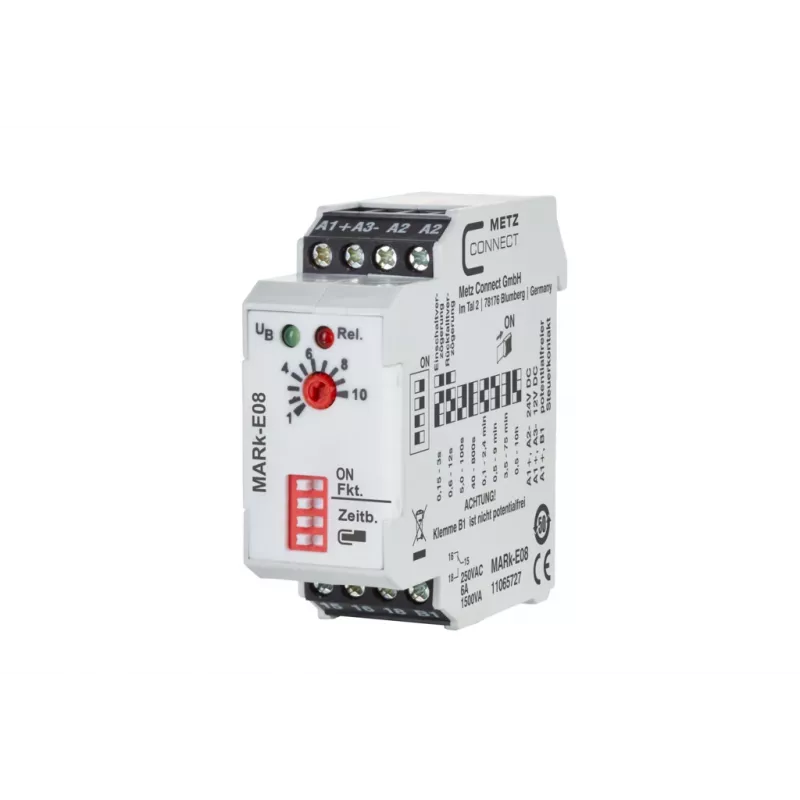

METZ Connect 11065727 MARk-E08 monitoimiaikarele 24 V AC/DC, 1 vaihtokosketin

Multifunctional time relay with 8 selectable functions and a wide time range from 0.05 seconds to 100 hours. The METZ Connect MARk-E08 delivers precise timing control for industrial and building automation applications, operating on 24 V AC/DC and featuring one changeover contact rated up to 5 A at 250 V AC.

Advantages

Compact DIN rail housing (1 TE width) saves space in distribution boards. Screw terminals ensure secure, maintenance-free connections. LED status indication provides clear operational feedback. Control input enables external start/stop or reset functions. Wide temperature range (-20 °C to +55 °C) suits harsh environments.

Suitable for

• Staircase lighting timers
• Pump and fan control
• Access control systems
• Machine start-up sequencing
• Ventilation and heating control

Key specifications

• Operating voltage: 24 V AC/DC

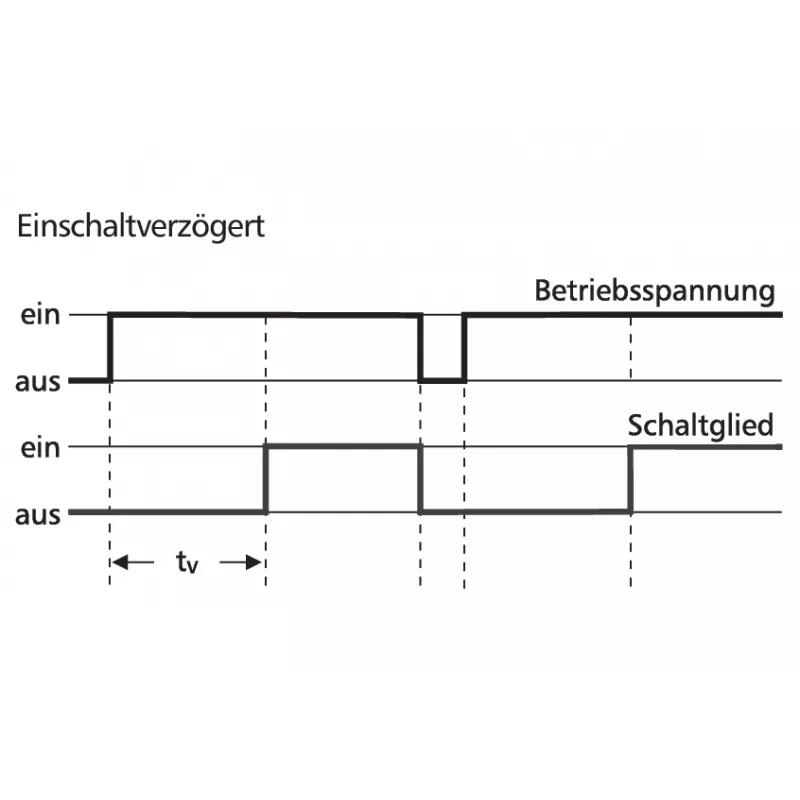

• 8 timing functions (on-delay, off-delay, pulse, etc.)
• Time range: 0.05 s – 100 h, adjustable in 10 ranges
• Output: 1 changeover contact (SPDT), 5 A / 250 V AC
• Mounting: DIN rail TS35, width 17.5 mm (1 TE)
• Protection: IP40 housing, IP20 terminals
• Approvals: CE, UL, cULus

Recommendations

For reliable timing tasks in control cabinets, pair with METZ Connect power supplies and interface relays. Verify load current does not exceed 5 A AC1; use contactor for higher loads.
