METZ CONNECT kuitujatkos-patch-paneeli 6xLC-D OM5 1U 19 tuuman räkkiasennus 1504587M06-F

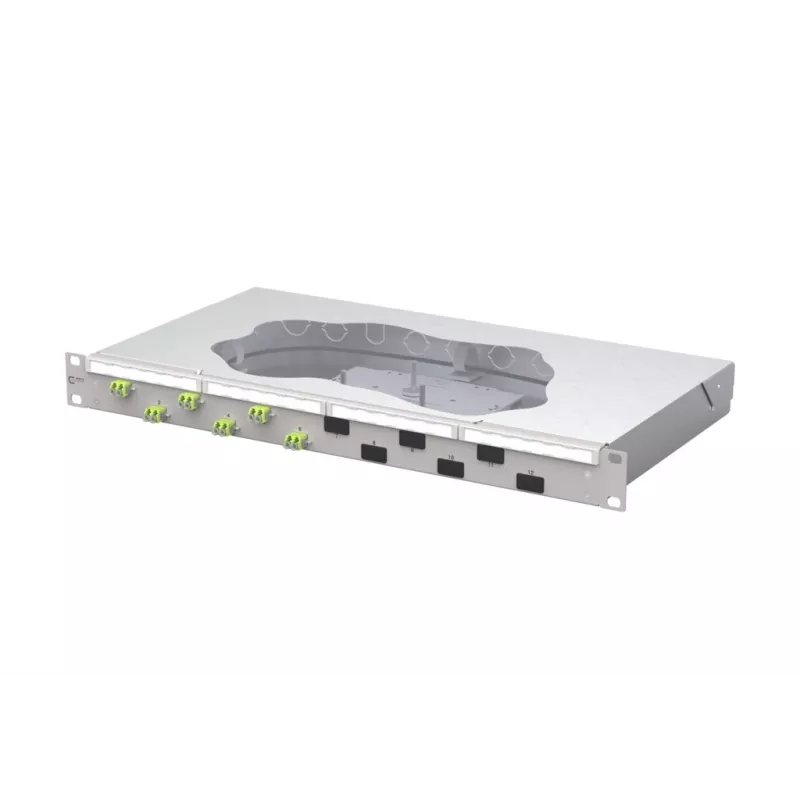

Managing fiber optic splices in a 19-inch rack often means choosing between fragile open trays and bulky enclosures. The METZ CONNECT splice patch panel 6xLC-D OM5 solves this by combining six LC duplex adapters with an integrated splice cassette in a single 1U steel housing. It is built for direct splicing of OM5 multimode cables in data centers and LAN backbones where lime green OM5 is specified for short-wave WDM.

Who is it for

Network installers and data center technicians who need a rack-mountable splice point for OM5 multimode fiber. The panel suits projects where cables are terminated on-site by splicing pigtails, and where rack space is limited but port density must remain manageable.

Main features

• 6 LC duplex adapters (12 fibers) with insertion loss below 0.2 dB and return loss above 35 dB
• Integrated splice cassette holds up to 12 crimp or heat shrink splice protectors
• Steel sheet housing in light grey RAL 7035, 1U height for 19-inch racks
• Rear cable entry with options for M20/M25 cable glands
• Operating temperature range -20 °C to +70 °C

Specifications

• Product type: Fiber optic splice patch panel
• Mounting: 19-inch rack, 1U
• Number of ports: 6
• Connector type: LC duplex
• Fiber type: Multimode OM5
• Adapter type: LC-D duplex
• Housing material: Steel sheet
• Housing colour: Light grey (RAL 7035)
• Splice tray capacity: 1 integrated cassette (up to 12 splice protectors)
• Cable entry: Rear, multiple options
• Insertion loss: < 0.2 dB
• Return loss: > 35 dB
• Operating temperature: -20 °C to +70 °C
• Protection class: IP20
• Standards compliance: IEC 61753-1, IEC 61754-20, TIA/EIA-568.3-D, ISO/IEC 11801

Tips

Pair with OM5 pigtails and splice protectors that fit the cassette. For high-density racks, multiple panels can be installed side by side; ensure rear cable management allows for bend radius of the incoming cables.
