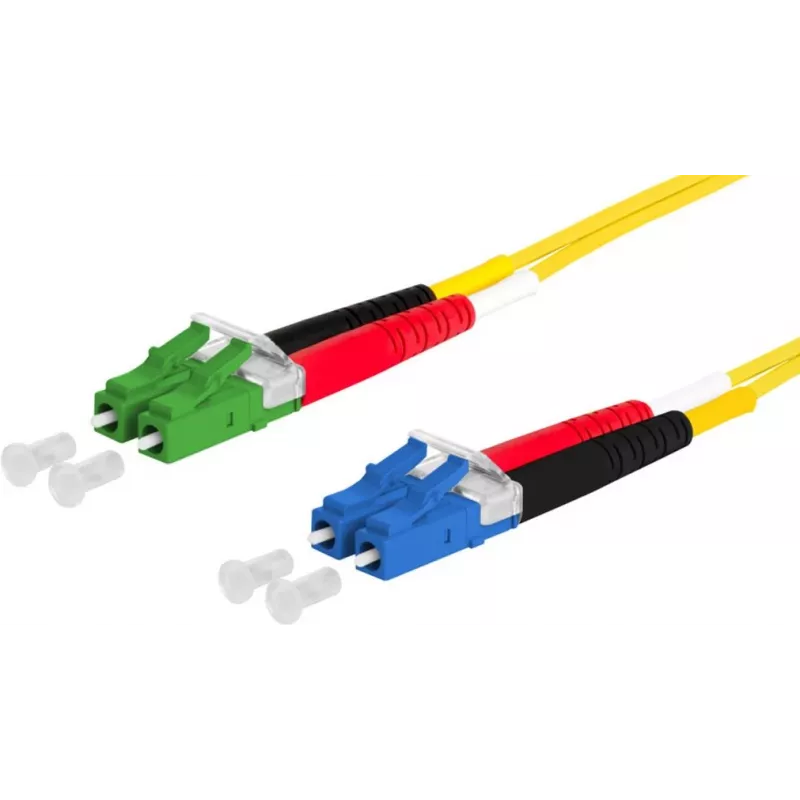

METZ CONNECT OpDAT patchkaapeli LC-duplex - LC-duplex APC OS2 yksimuotokaapeli 3,0 m

The METZ CONNECT OpDAT Patch Cable is a high-performance fiber optic patch cable designed for reliable single-mode connections in data centers, telecommunications, LAN, and FTTx applications. With LC duplex connectors on both ends featuring APC (Angled Physical Contact) polish, this cable ensures low insertion loss and high return loss for optimal signal integrity.

Advantages

This patch cable offers exceptional performance with typical insertion loss ≤0.2 dB and return loss ≥60 dB. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces, while the duplex zipcord construction allows for easy routing and management. The yellow jacket color ensures quick identification of single-mode cables.

Suitable for

• Data center cabling
• Telecommunications networks
• Local Area Networks (LAN)
• FTTx deployments
• High-speed fiber optic connections

Key specifications

• Fiber type: Single-mode OS2 (G.657.A1 / G.652.D compatible)
• Connectors: LC Duplex to LC Duplex, APC polish
• Length: 3.0 m
• Fiber count: 2 (duplex)
• Cable construction: Duplex zipcord
• Jacket material: LSZH
• Jacket color: Yellow
• Cable diameter: 3.0 mm
• Insertion loss (typical): ≤0.2 dB
• Return loss (typical): ≥60 dB
• Operating wavelengths: 1310 nm, 1550 nm
• Attenuation: ≤0.35 dB/km @ 1310 nm, ≤0.25 dB/km @ 1550 nm
• Minimum bend radius: 10 mm
• Operating temperature: -10°C to +60°C
• Standards: IEC 61753-1, IEC 61754-20, TIA/EIA-604-10

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is ideal for backbone and horizontal cabling in structured cabling systems. Pair with METZ CONNECT patch panels and outlets for a complete solution.
