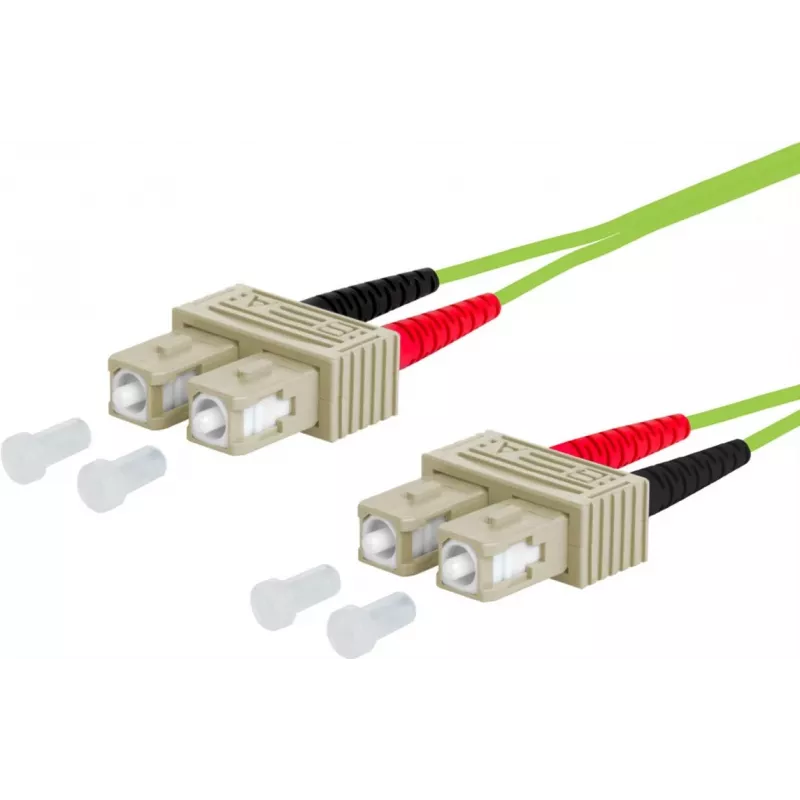

METZ CONNECT OpDAT patchkaapeli SC-duplex/SC-duplex OM5, 2,0 m

The METZ CONNECT OpDAT Patch Cable SC Duplex/SC Duplex OM5 is a high-performance fiber optic patch cable designed for demanding network environments. With a length of 2.0 meters, this cable supports OM5 wideband multimode fiber (WBMMF) for high-speed data transmission over short to medium distances. It features SC duplex connectors on both ends, ensuring reliable and secure connections. The lime green LSZH (Low Smoke Zero Halogen) jacket provides safety and easy identification. Ideal for data centers, enterprise networks, and high-bandwidth applications.

Advantages

OM5 fiber supports multiple wavelengths for increased bandwidth; LSZH jacket enhances safety; low insertion loss ensures signal integrity; duplex SC connectors for polarity control.

Suitable for

• Data center cabling
• Enterprise network infrastructure
• High-speed fiber optic connections (10/40/100 Gbps and beyond)
• Wideband multimode applications

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Multimode OM5 (Wideband Multimode Fiber)
• Connector A: SC Duplex
• Connector B: SC Duplex
• Cable Length: 2.0 m
• Number of Fibers: 2
• Core Diameter: 50/125 µm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Lime Green
• Insertion Loss (typical): ≤ 0.3 dB
• Return Loss (typical): ≥ 20 dB
• Attenuation @ 850 nm: ≤ 2.3 dB/km
• Attenuation @ 953 nm: ≤ 2.3 dB/km
• Modal Bandwidth (OFL) @ 850 nm: 3500 MHz·km
• Modal Bandwidth (OFL) @ 953 nm: 1850 MHz·km
• Effective Modal Bandwidth (EMB) @ 850 nm: 4700 MHz·km
• Effective Modal Bandwidth (EMB) @ 953 nm: 2470 MHz·km
• Polarity: A-B (Crossed)
• Standards Compliance: IEC 60793-2-10 type A1a.4, ISO/IEC 11801, EN 50173-1, TIA/EIA-568.3-D

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with OM5 transceivers and supports applications up to 100 Gbps and beyond.
