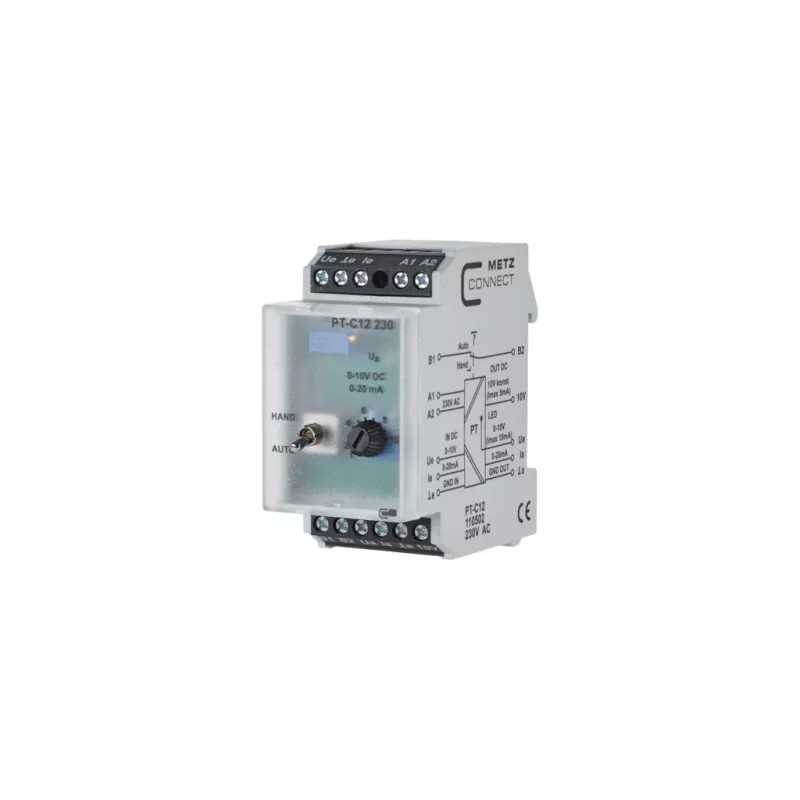

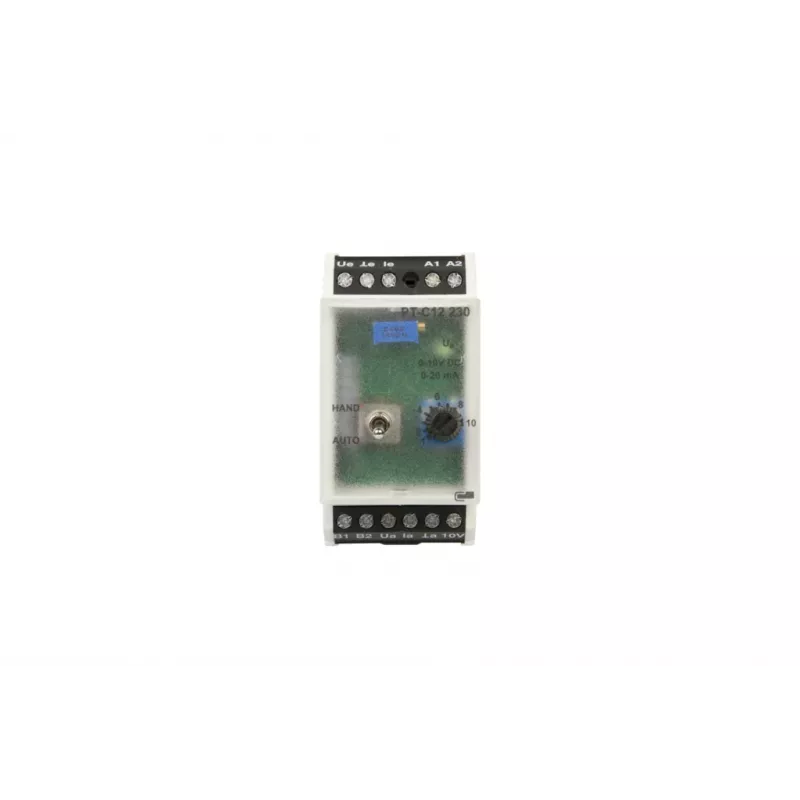

METZ CONNECT potentiaalierotin 230VAC 110502

For installations where a 230 VAC control signal must trigger a floating relay output without any direct electrical connection, the METZ CONNECT Potential Isolator 110502 provides a clean, safe interface. Unlike basic signal converters, this unit combines a compact DIN-rail housing with a 4 kV isolation barrier and a potential-free changeover contact, making it suitable for building automation, HVAC control, and industrial signal distribution.

Highlights

• Galvanic isolation between input and output up to 4 kV test voltage
• Potential-free changeover relay contact rated 250 VAC / 2 A
• LED status indication for operating voltage

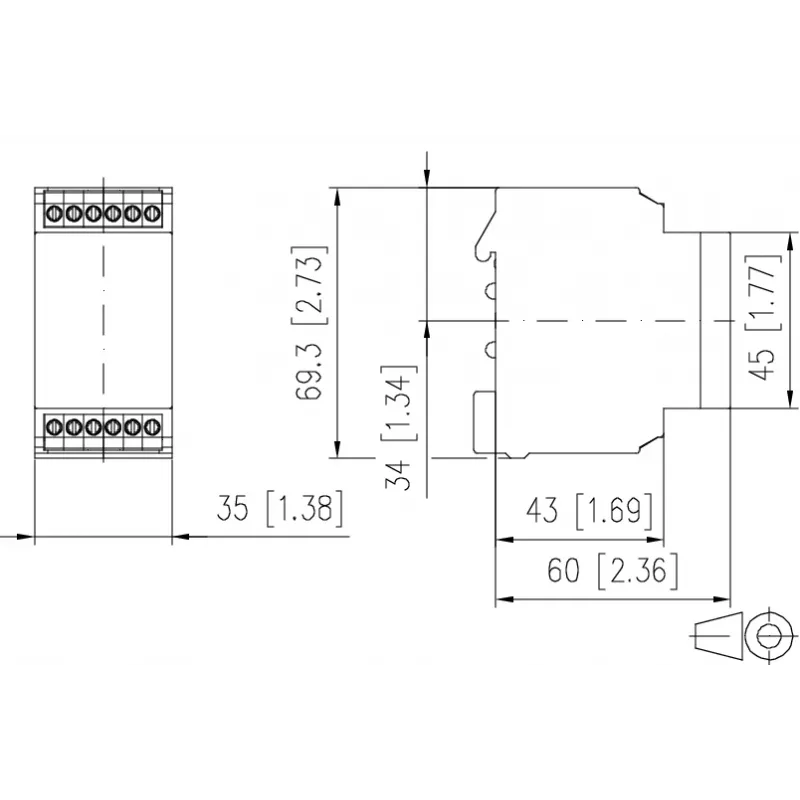

• DIN rail mounting (TS35) for quick installation in distribution boards
• Wide operating temperature range from -25 °C to +70 °C
• Compact polyamide housing with IP20 protection

In daily use

The isolator accepts a 230 VAC input and drives an internal relay, providing a dry contact output that can switch low-power loads or feed into PLC inputs. Its screw terminals accept solid or stranded conductors, and the green LED confirms supply presence at a glance. The 1.5 VA power consumption keeps heat generation minimal, allowing continuous operation in confined enclosures.

Full specifications

• Input voltage: 230 VAC, 50/60 Hz
• Output: 1 potential-free changeover contact (relay)
• Contact rating: 250 VAC / 2 A (resistive load)
• Isolation voltage: 4 kV AC (input/output/supply)
• Response time: < 10 ms
• Power consumption: approx. 1.5 VA
• Mounting: DIN rail TS35

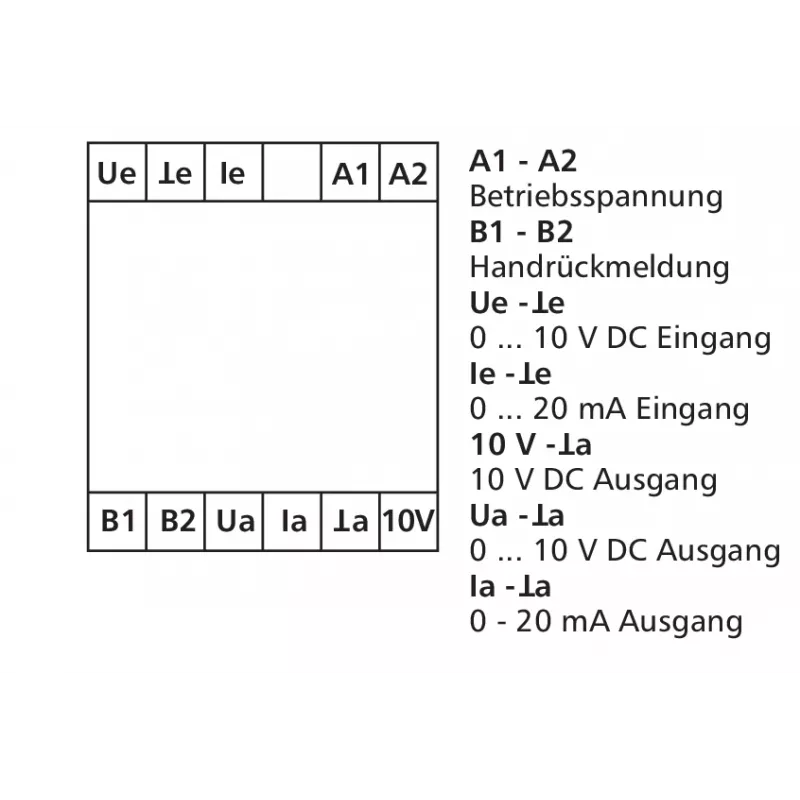

• Connection: screw terminals
• Housing material: polyamide PA 6.6
• Protection class: IP20
• Operating temperature: -25 °C to +70 °C
• Storage temperature: -40 °C to +85 °C
• Standards: EN 61010-1, EN 61000-6-2, EN 61000-6-4

Final note

A reliable isolation solution for separating 230 VAC control circuits from sensitive electronics, the METZ CONNECT 110502 ensures safe signal transfer in demanding environments.
