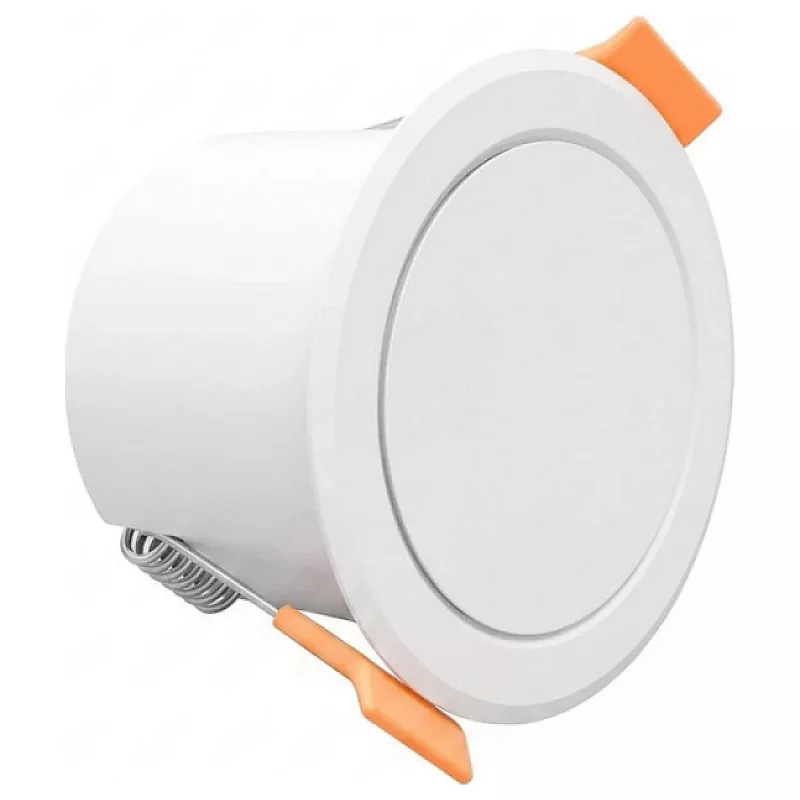

Miboxer Synergy 21 LED-anturi mikroaaltotutka läsnäolo 2,4 GHz (HPS1-RF)

The Miboxer Synergy 21 HPS1-RF is a high-precision microwave radar sensor designed for detecting human presence, motion, and micro-motion. Operating on a 2.4GHz wireless protocol, it offers a detection range of 0.3-9 meters with a 360° angle, making it ideal for smart lighting and automation systems. Compatible with MiBoxer 2.4G gateways and remotes, it enables seamless integration into existing setups.

Advantages

This sensor provides reliable human presence detection with adjustable sensitivity and hold time, ensuring energy efficiency and convenience. Its compact design supports both ceiling and wall mounting, and the ambient light sensor allows for daylight-aware operation.

Suitable for

• Smart home lighting automation
• Office and commercial spaces
• Corridors, staircases, and bathrooms
• Warehouses and storage areas

Key specifications

• Sensing Technology: Microwave Radar
• Detection Type: Human Presence, Motion, Micro-motion
• Wireless Protocol: 2.4GHz RF
• Communication Range: 30m (line of sight)
• Detection Angle: 360°
• Detection Distance: 0.3-9m (adjustable)
• Power Input: DC 5V (via USB-C)
• Standby Power Consumption: <0.5W
• Operating Temperature: -20~60°C
• Operating Humidity: 0~95% RH (non-condensing)
• Installation Method: Ceiling Mount / Wall Mount
• Recommended Mounting Height: 2-6m
• Adjustable Sensitivity: Yes
• Adjustable Hold Time: Yes
• Ambient Light Sensor: Yes
• Compatibility: MiBoxer 2.4G Gateways/Remotes (e.g., WL-Box1, FUT089, B8)
• Material: PC
• Color: White

Recommendations

For optimal performance, mount the sensor at a height of 2-6 meters and pair it with a compatible MiBoxer 2.4G gateway. Adjust sensitivity and hold time according to the application environment.
