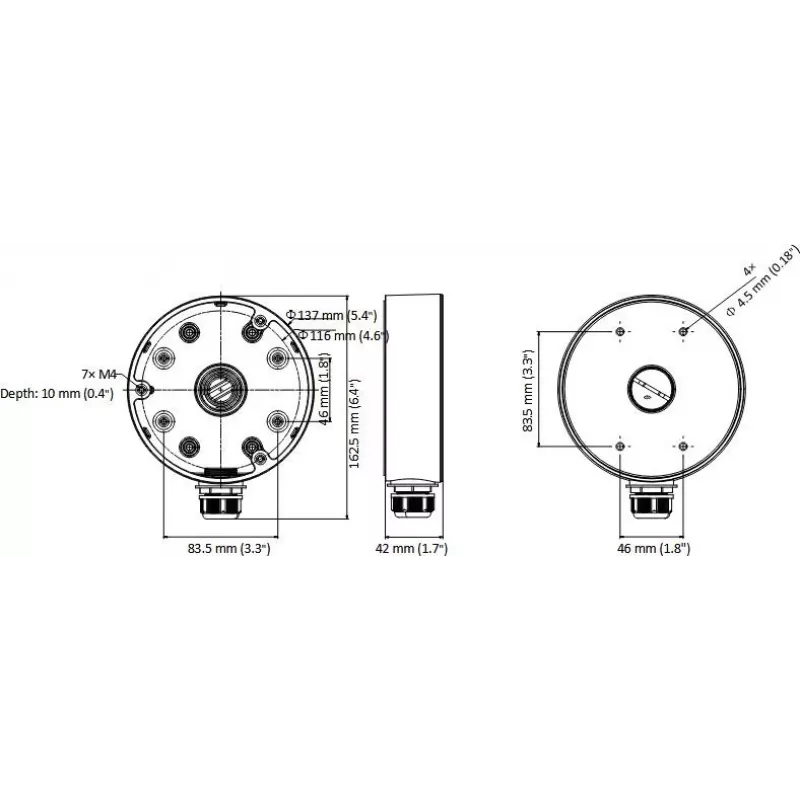

MITON MT-P1280-D21-B pinta-asennettava jakorasia, harmaa (RAL 7035), IP65, IK07, ABS

The MITON MT-P1280-D21-B is a robust surface-mounted junction box designed for demanding electrical installations. Manufactured from high-quality ABS material, this enclosure offers excellent durability and protection against dust and water jets with an IP65 rating. Its IK07 impact resistance ensures reliability in harsh environments. The opaque screw-on lid with four screws provides secure sealing, while the smooth walls allow for custom cable entry drilling or gland installation. Ideal for use as a junction box, control panel housing, or consolidation point in industrial and commercial settings.

Advantages

High protection class IP65 and impact resistance IK07 make it suitable for outdoor and industrial use. The ABS material is lightweight yet strong, and the screw-on lid ensures a tight seal. Customizable cable entries offer flexibility for various installation requirements.

Suitable for

• Electrical junction boxes in industrial environments
• Control panel enclosures
• Consolidation points for network cabling
• Outdoor electrical installations requiring dust and water protection

Key specifications

• Enclosure Type: Surface-Mounted
• Material: ABS (Acrylonitrile Butadiene Styrene)
• IP Rating: IP65
• Impact Resistance: IK07
• Colour: Grey (RAL 7035)
• Lid Type: Opaque, Screw-on
• Number of Lid Screws: 4
• Operating Temperature Range: -25°C to +60°C
• Flammability Rating: UL94-HB
• Cable Entry: Smooth walls for custom drilling/glands
• Internal Mounting: Mounting bosses for DIN rail or mounting plate

Recommendations

For optimal performance, use appropriate cable glands and ensure proper sealing of all entries. This enclosure is designed for surface mounting; ensure the mounting surface is flat and clean. Suitable for use with DIN rail components and mounting plates.
