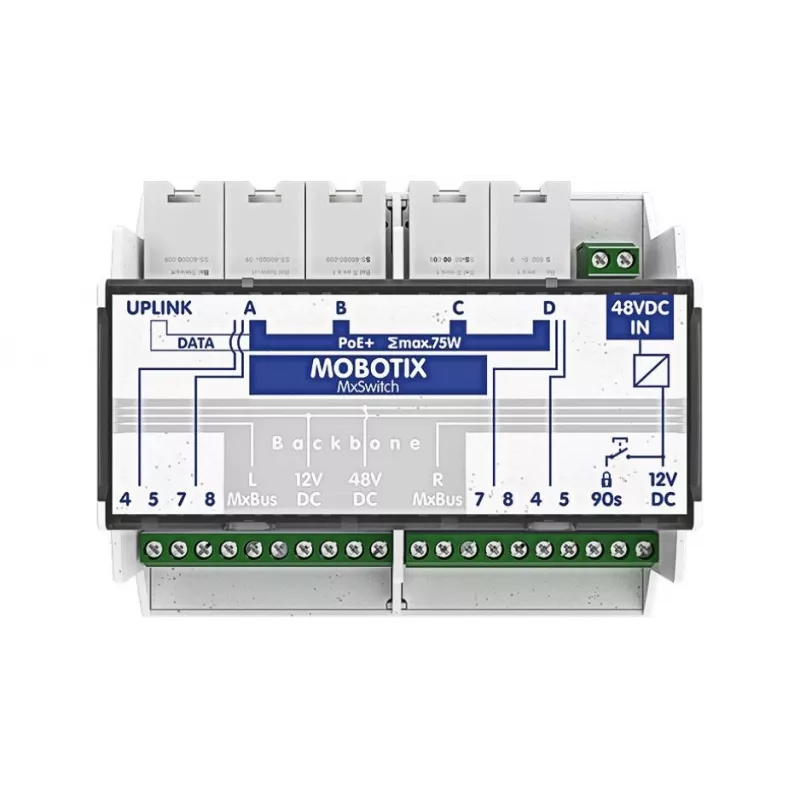

MOBOTIX MX-SWITCH1 - verkkokytkin - 4 x 10/100 (PoE+) - DIN-kisko

The MOBOTIX MX-SWITCH1 is a compact, unmanaged Fast Ethernet switch designed for industrial and security applications. With 4 PoE+ ports and a total power budget of 60 W, it provides reliable power and data connectivity for IP cameras, access points, and other network devices. Its fanless design ensures silent operation, while the metal housing and DIN rail mounting capability make it ideal for control cabinets and harsh environments.

Advantages

• PoE+ support (IEEE 802.3af/at) with 60 W budget simplifies installation by eliminating separate power cables.
• Fanless operation ensures zero noise and reduced maintenance.
• Compact metal enclosure with DIN rail and wall-mount options for flexible deployment.
• Unmanaged plug-and-play design requires no configuration.
• Auto MDI/MDI-X and flow control for seamless integration.

Suitable for

• Powering and connecting MOBOTIX IP cameras and other PoE devices.
• Industrial automation and security systems requiring reliable network infrastructure.

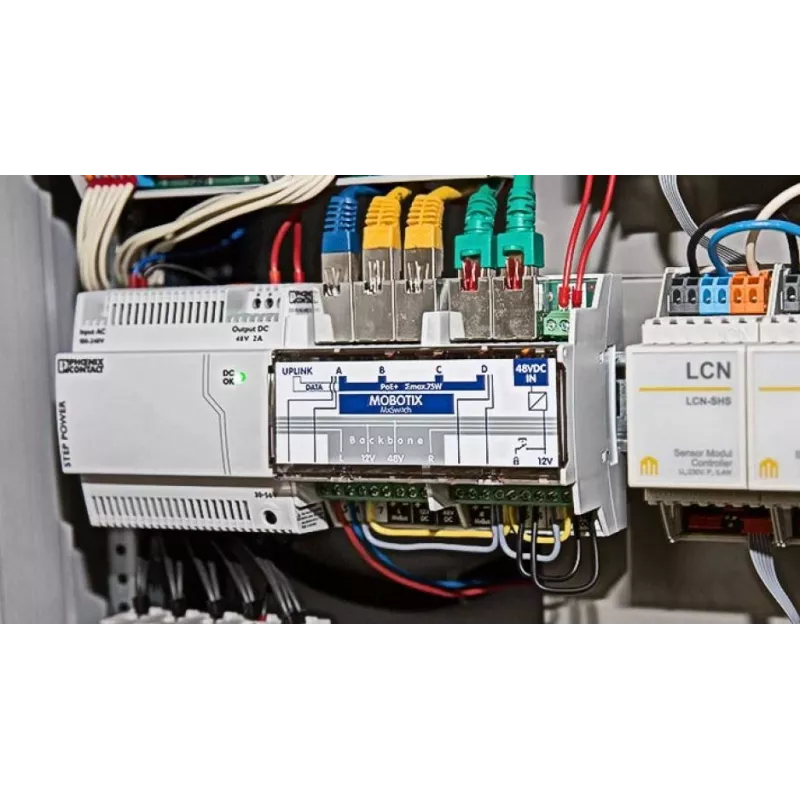

• Installations in control cabinets, server rooms, or wall-mounted setups.

Key specifications

• Ports: 4 x 10/100Base-TX (PoE+)
• PoE Standard: IEEE 802.3af/at
• PoE Power Budget: 60 W
• Switching Capacity: 1 Gbps
• Forwarding Rate: 0.74 Mpps
• MAC Address Table: 1K entries
• Management: Unmanaged
• Input Voltage: 48 V DC
• Max Power Consumption: 65 W
• Operating Temperature: -10°C to 50°C (14°F to 122°F)
• Enclosure Material: Metal
• Mounting: DIN Rail, Wall-mountable
• Compliant Standards: IEEE 802.3, 802.3u, 802.3x, 802.3af, 802.3at
• LED Indicators: Power, Link/Activity, PoE

Recommendations

For optimal performance, use with MOBOTIX cameras and ensure the power supply provides 48 V DC. The switch is fanless, so ensure adequate ventilation in enclosed spaces.
