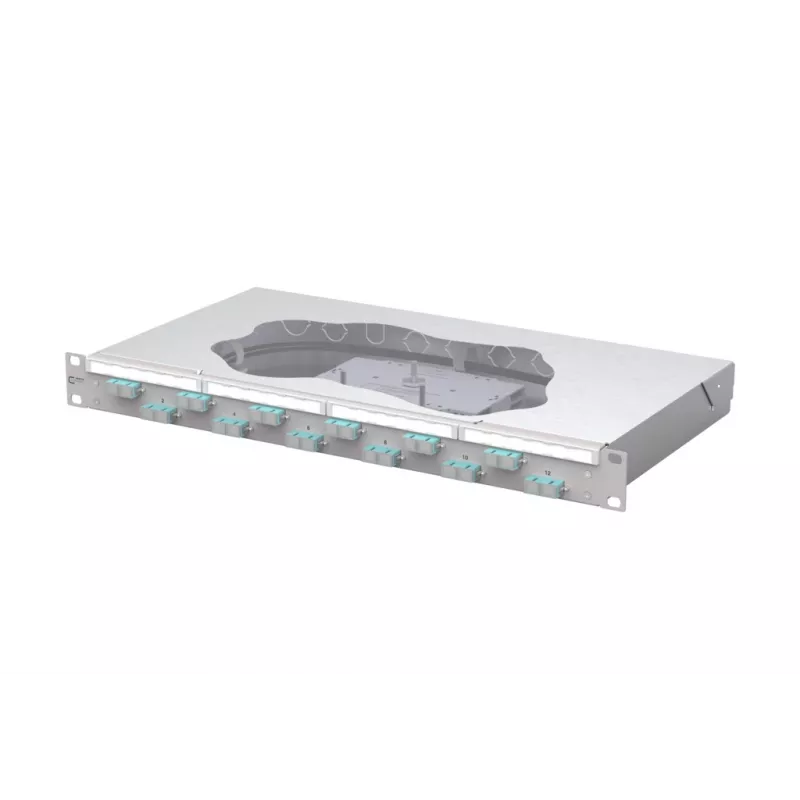

METZ CONNECT kuitujatkos-patchpaneeli 12xSC duplex OM3, 1U, vaaleanharmaa 150455BA12-F

This fiber optic splice patch panel provides a robust 19-inch rack-mount solution for terminating and managing up to 12 SC duplex multimode OM3 connections in a compact 1U form factor. Its integrated splice trays and rear cable glands ensure organized fiber routing and strain relief for reliable network performance.

Advantages

The panel's steel housing with light grey finish (RAL 7035) offers durability and a professional appearance. Two included splice trays support up to 12 crimp splice holders each, enabling efficient fusion or mechanical splicing. Labeling strips on the front panel allow clear port identification, simplifying maintenance and troubleshooting.

Suitable for

• Data centers requiring high-density fiber termination
• Enterprise backbone cabling with OM3 multimode fiber
• Telecommunications rooms and equipment racks
• Splice-intensive installations needing organized fiber management

Key specifications

• Connector type: SC Duplex
• Number of ports: 12 (24 fibers)
• Fiber type: Multimode OM3
• Mounting: 19-inch rack, 1U height
• Housing material: Steel, light grey (RAL 7035)
• Cable entry: Rear, 4x PG16/M20 cable glands
• Splice trays: 2 included, each holds 12 crimp splice holders (holders not included)
• Operating temperature: -20 °C to 70 °C

Recommendations

Pair with OM3 multimode SC duplex patch cords and crimp splice protectors for a complete splicing solution. Ensure proper rack ventilation and maintain bend radius guidelines during installation.
