Gembird Cablexpert NPPC648CM001 musta kaapeli EIA/TIA T568B/A

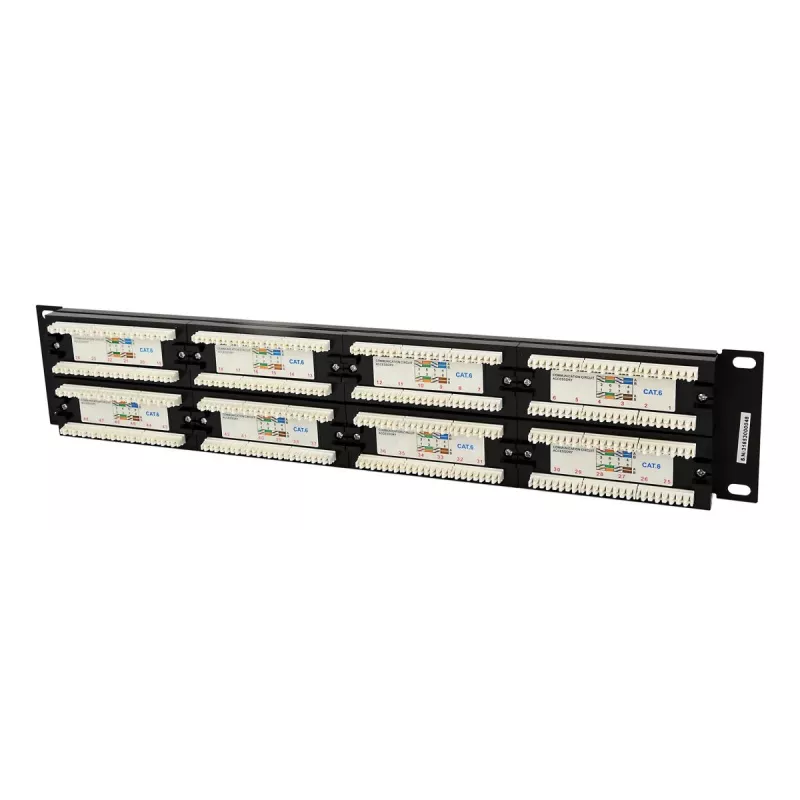

The Gembird Cablexpert NPPC648CM001 is a black, high-density 19" panel designed for organized termination of network cables using the EIA/TIA T568B/A wiring standards. Built for mounting in any standard 19" rack or cabinet, the unit features 110-type termination and 50µ gold-plated contacts for reliable signal transfer. Its compact dimensions (483 mm × 33 mm × 89 mm) and powder-coated steel construction provide durability and a space-saving solution for patching and cable management.

Advantages

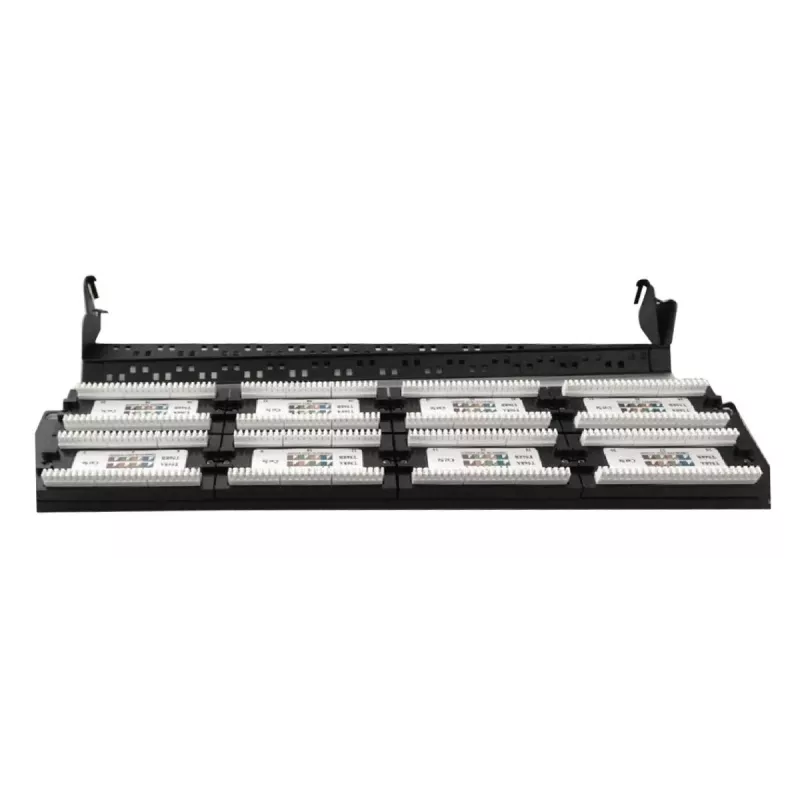

The panel supports top, bottom or side cable entry and includes a rear cover with a wire management bar to preserve proper patch cable bend radius and provide strain relief. A write-on designation label with a clear holder on the front simplifies port identification. The black electrostatic powder-coated steel finish resists corrosion and wear, while RoHS, ISO 9002 and UL certifications attest to manufacturing and safety standards.

Suitable for

• High-density patch panels in data centers and telecom rooms
• 19" rack or cabinet installations for structured cabling
• Termination of horizontal or vertical network runs using T568B/A

Key specifications

• Model: Gembird Cablexpert NPPC648CM001
• Termination type: 110-type
• Wiring standard: EIA/TIA T568B/A
• Contacts: 50µ gold-plated
• Material/finish: Black electrostatic powder-coated steel
• Mounting: Standard 19" rack/cabinet
• Dimensions: 483 mm (W) × 33 mm (H) × 89 mm (D)
• Cable entry: Top, bottom or side
• Certifications: RoHS, ISO 9002, UL

How to use

Mount the panel into a standard 19" rack or cabinet using appropriate screws and cage nuts. Route cables into the panel via the chosen entry (top, bottom or side) and terminate each conductor on the 110-type blocks following the EIA/TIA T568B or T568A wiring diagram. Use the rear wire management bar to guide patch cables and maintain bend radius; secure the rear cover after termination to protect connections. Label each port using the write-on designation label in the clear holder for straightforward identification.

Recommendations

For best performance, follow EIA/TIA termination practices, avoid sharp cable bends, and ensure strain relief is applied. Verify continuity and pair integrity with a cable tester after termination. Use compatible patch panels and connectors rated for gold-plated contacts to maintain signal quality.
