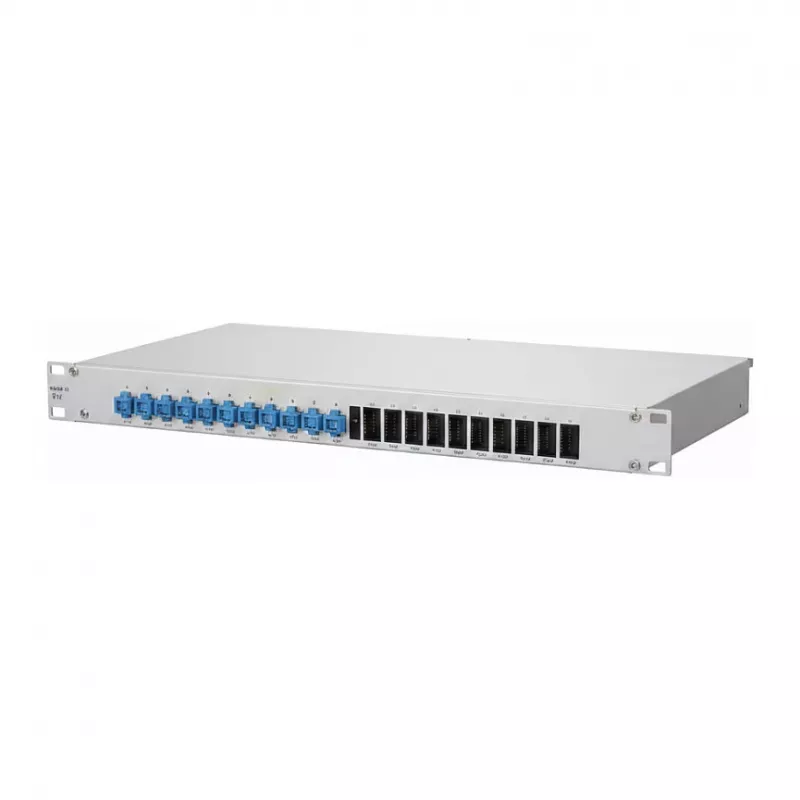

METZ CONNECT Patch Panel Splice 12xLC-D OM4 1504577512-F

The METZ CONNECT patch panel splice 12xLC-D OM4 is a high-quality fiber optic patch panel designed for professional network infrastructure. It provides a reliable and organized solution for splicing and terminating fiber optic cables in data centers, LAN, and telecommunications environments.

Advantages

This patch panel offers easy installation and maintenance with its integrated splice tray and 19-inch rack mount design. The 1U form factor saves valuable rack space while providing 12 duplex LC ports (24 fibers) for high-density connectivity. The robust steel housing with light grey powder coating ensures durability and a professional appearance.

Suitable for

• Data center cabling
• Local area networks (LAN)
• Telecommunications rooms
• Fiber optic distribution points

Key specifications

• Product Type: Fiber Optic Patch Panel
• Connector Type: LC-Duplex
• Number of Ports: 12
• Number of Fibers: 24 (12x Duplex LC)
• Fiber Mode: Multimode
• Fiber Grade: OM4
• Splicing Capability: Yes, integrated splice tray
• Mounting Type: 19-inch Rack Mount
• Rack Units: 1U
• Housing Material: Steel, powder-coated
• Color: Light Grey (RAL 7035)
• Front Panel Material: Anodized Aluminum
• Included Accessories: Splice cassettes/trays, cable glands, mounting hardware
• Standards Compliance: IEC 61753-1, TIA/EIA-568-C.3, ISO/IEC 11801
• Typical Insertion Loss: < 0.3 dB
• Typical Return Loss: > 20 dB (PC)
• Operating Temperature: -10°C to +60°C
• Protection Class: IP20
• Cable Entry: Rear, multiple options (e.g., M20/M25)

Recommendations

For optimal performance, use with OM4 multimode fiber cables and LC duplex connectors. Ensure proper cable management and bend radius protection.
