Patch-paneeli 1U Lanberg PPS7-1024-B

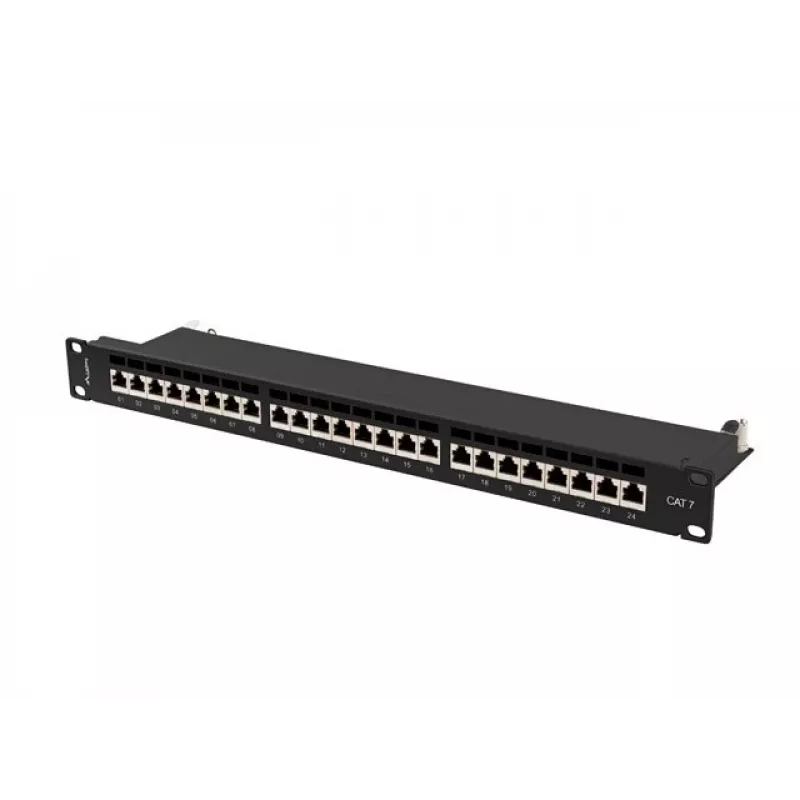

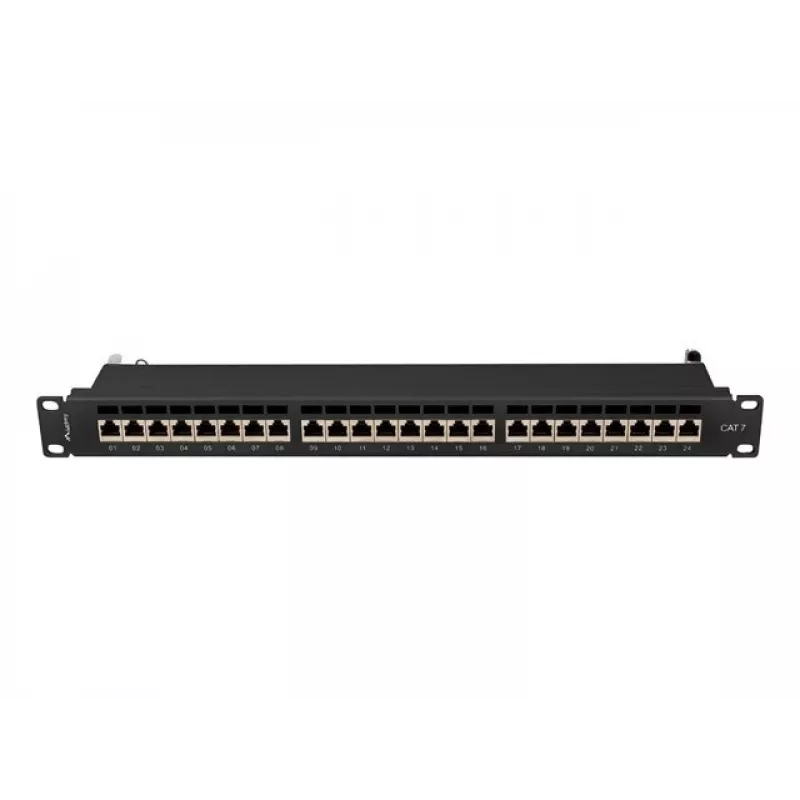

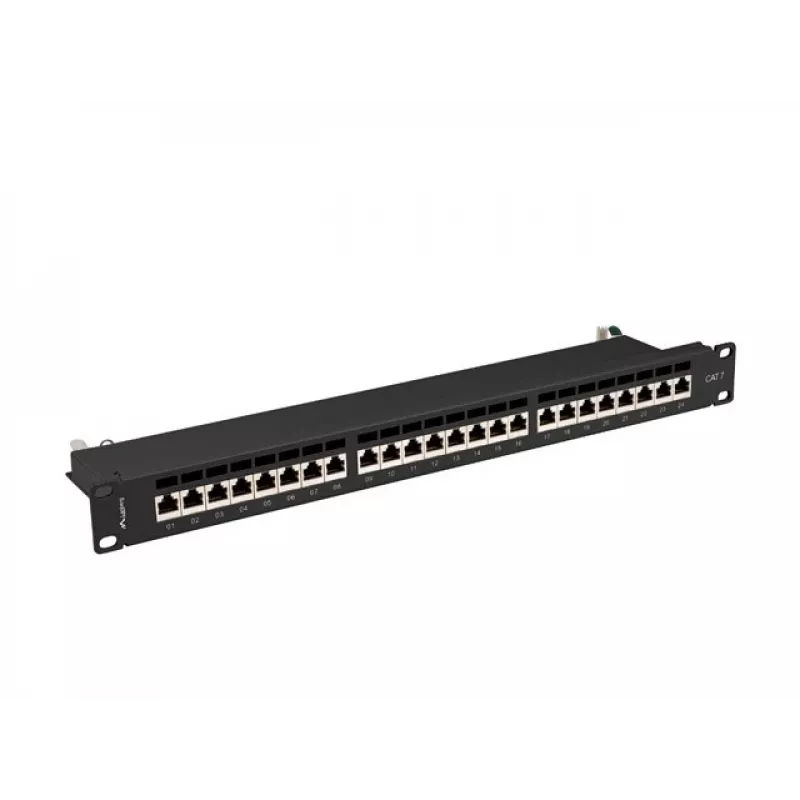

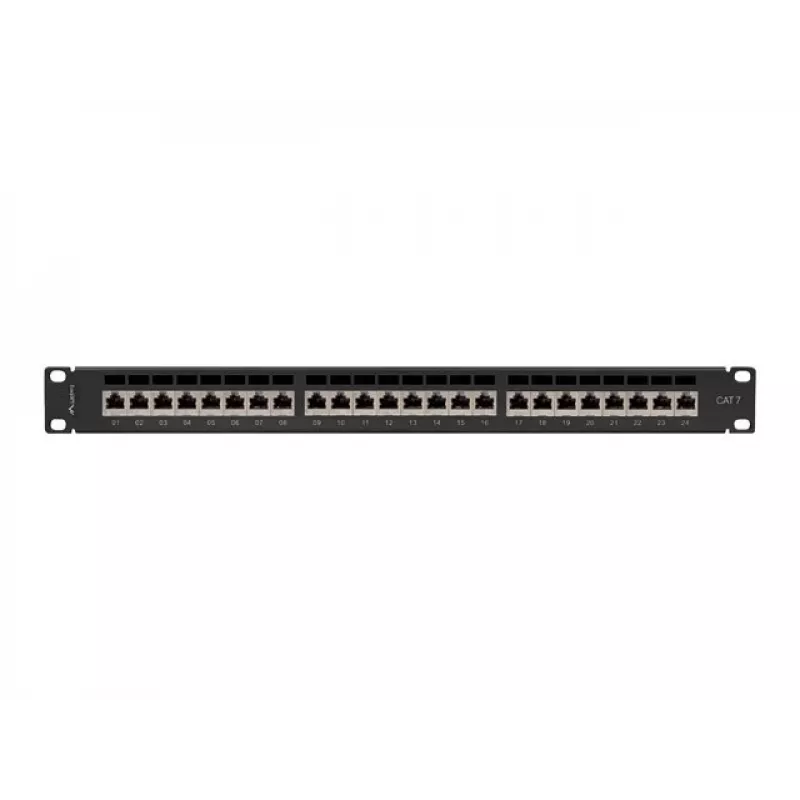

The Lanberg PPS7-1024-B is a 1U patch panel for Cat7 F/UTP twisted-pair cables, intended for use in main and secondary distribution points of high-speed telecommunication systems. It is a passive element of structured cabling designed for termination and organization of cables within 19" rack cabinets and combines ABS and metal construction with a black finish. The panel includes 24 shielded RJ-45 ports (Category 7) and a cable management shelf for stable assembly and tidy routing.

Advantages

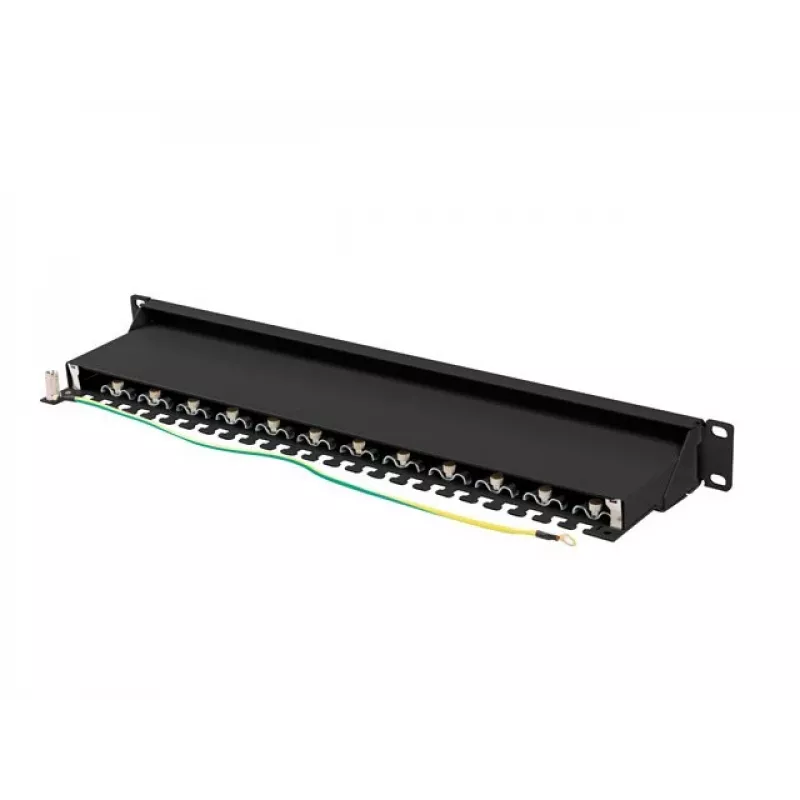

The patch panel provides 24 shielded RJ-45 Cat7 ports for reliable, high-frequency connections. IDC/LSA termination enables fast and simple installation of twisted-pair cables. A stiffened shelf with handles and an integrated cable management panel support orderly cable routing and mechanical stability in a 1U rack space. Its compact dimensions (445 × 44.5 × 102 mm) and light weight (0.7 kg) make it suitable for standard 19" rack mounting while saving space.

Suitable for

• Data center and server room horizontal and vertical cable terminations
• Telecommunications distribution points in enterprises and institutions
• Structured cabling installations requiring Cat7/F-UTP shielding
• 19" rack cabinets where 1U space efficiency is required

Key specifications

• Brand: LANBERG
• Model: PPS7-1024-B
• Ports quantity: 24 shielded RJ-45 (Category 7)
• Shielding: F/UTP (foil over twisted pairs with overall braid)
• Dimensions (W × H × D): 445 × 44.5 × 102 mm
• Weight: 0.7 kg
• Colour: Black
• Form factor: 1U, for 19" rack cabinets

How to use

Mount the panel in a standard 19" rack using the front mounting points. Terminate each Cat7 F/UTP twisted-pair cable into the IDC/LSA connectors according to the chosen wiring standard (e.g., T568A/T568B). Route cables along the integrated cable management shelf and secure them with appropriate ties or clamps; use the handles on the stiffened shelf to position and stabilize the bundle during installation. Connect patch cords to the front RJ-45 ports to complete links to network equipment.

Recommendations

Install and terminate cables in a clean environment, follow the selected wiring standard consistently across the installation, and ensure proper shielding continuity to maintain Cat7 performance. Use compatible shielded patch cords and maintain bend radii recommended for Cat7 to avoid signal degradation.
