Moduulipidike DeLOCK Easy 45 130 x 80 mm

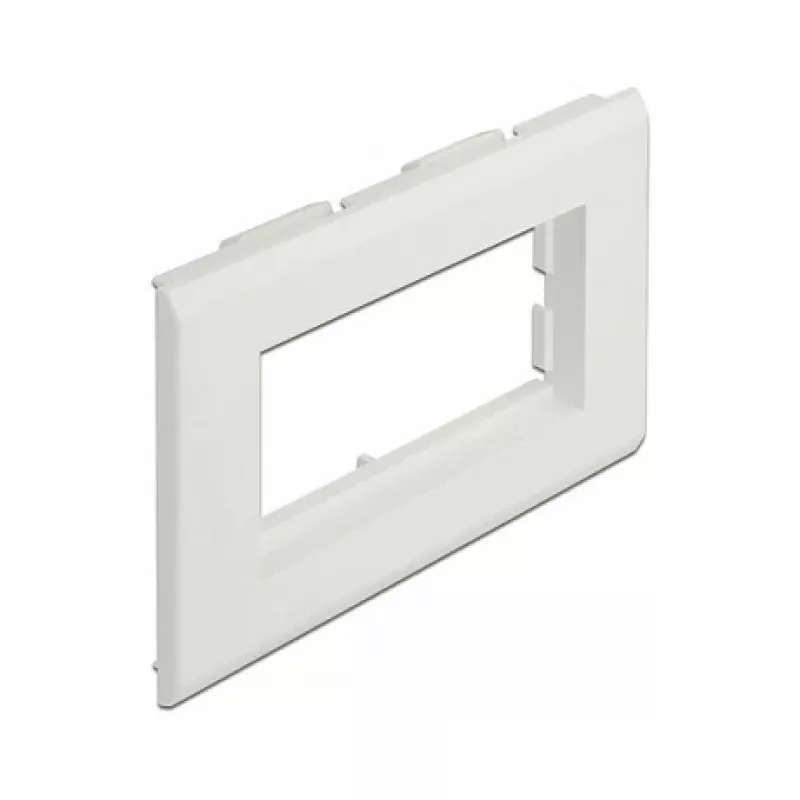

The DeLOCK Easy 45 module holder is designed to accommodate Easy 45 modules with sizes of 45 x 45 mm or 22.5 x 45 mm and to be mounted into installation trunking with an opening of approximately 76.5 mm. It is made of white ABS and provides a compact mounting frame sized for a 130 x 80 mm footprint, intended for tidy integration of sockets, HDMI, USB and other standard Easy 45 modules.

Advantages

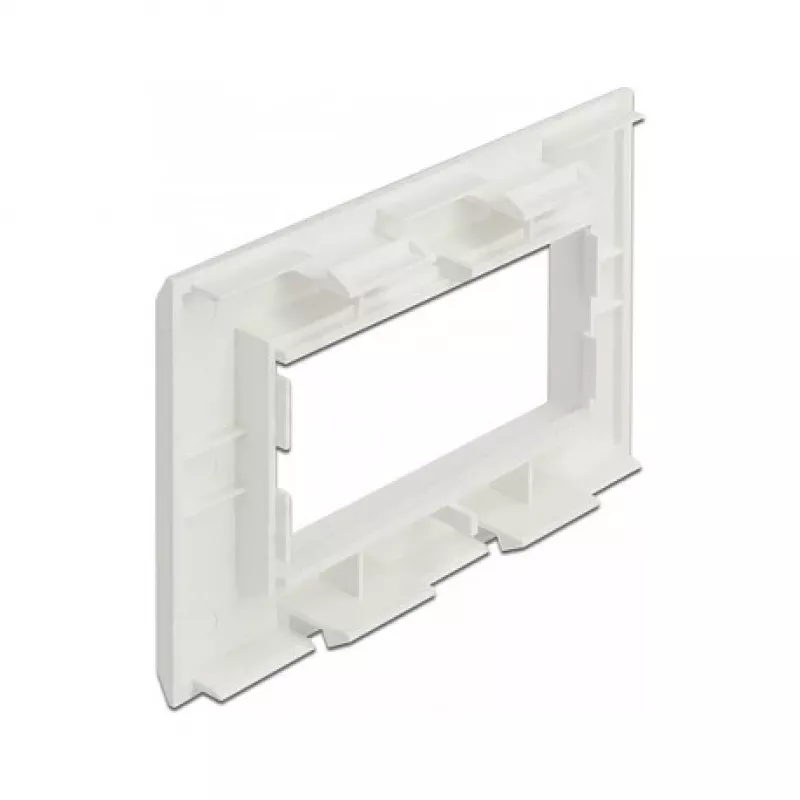

The screwless design allows tool-free insertion and snap-in mounting into compatible trunking, reducing installation time. Constructed from acrylonitrile butadiene styrene (ABS), the holder is lightweight and durable. Its standardised format supports a variety of Easy 45 modules, enabling flexible module selection and arrangement.

Suitable for

• Mounting Easy 45 modules (45 x 45 mm or 22.5 x 45 mm)
• Installation trunking with an opening of approximately 76.5 mm

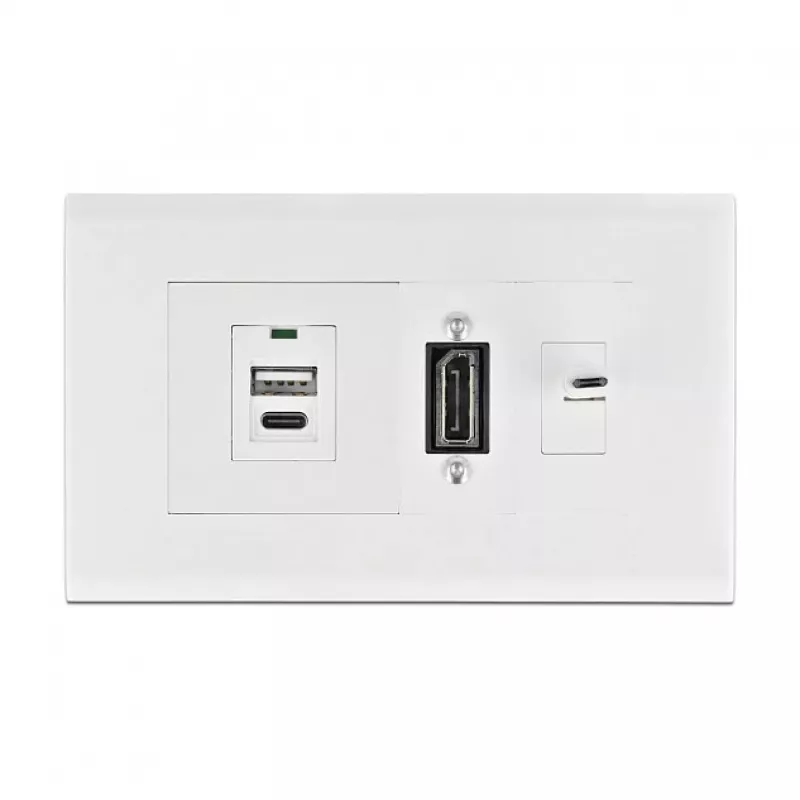

• Applications requiring HDMI, USB, power sockets or other Easy 45 interfaces

Key specifications

• Brand: DELOCK
• Model / MPN: 81316
• EAN: 4043619813162
• Compatible module sizes: 45 x 45 mm and 22.5 x 45 mm
• Holder outer dimensions (footprint): 130 x 80 mm
• Material: Acrylonitrile Butadiene Styrene (ABS)
• Product colour: White
• Designed for trunking opening: approx. 76.5 mm
• Made in Taiwan

How to use

Select the required Easy 45 modules and assemble them into the module holder. Align the holder with the installation trunking opening (approx. 76.5 mm) and push the holder into the opening until it snaps into place; no screws or tools are required. Verify that the modules are seated correctly and connect the cables to the installed interfaces according to the module instructions.

Recommendations

Use this holder with standard Easy 45 modules only and ensure the trunking opening matches approximately 76.5 mm for secure snap-in mounting. Avoid excessive force when inserting or removing the holder to prevent damage to the snap-fit features.
