Näyttöpidike Hagor 8403 190,5 cm (75") seinä musta

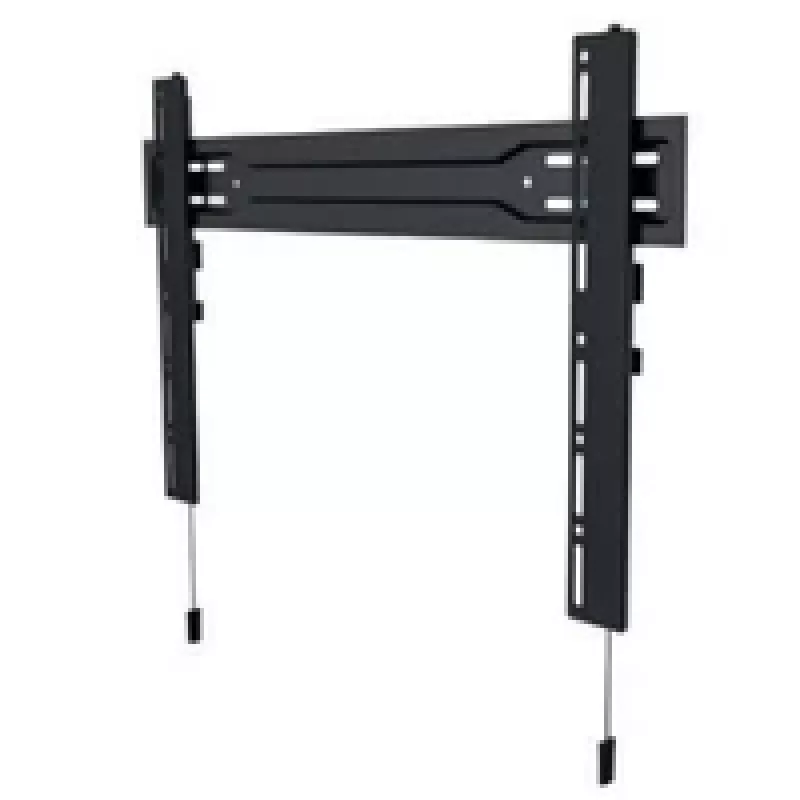

The BL Superslim 600 is a fixed wall mount for displays with diagonals from 55" to 75" (140–191 cm). It supports VESA patterns from 100 x 100 mm up to 600 x 400 mm, provides a slim 18 mm distance from the wall and has a maximum load capacity of 40 kg. The mount is finished in black with an impact- and scratch-resistant powder coating. A quick-release mechanism with a rope-drawn spring latch is secured to the mount by included magnets.

Advantages

The BL Superslim 600 offers an ultra-slim 18 mm profile that keeps the display close to the wall, independent height adjustment of ±8 mm on each side via adjusting screws, broad VESA compatibility from 100 x 100 mm to 600 x 400 mm, and a robust powder-coated finish for improved scratch and impact resistance. The quick-release device simplifies installation and is held in place by magnets when not engaged.

Suitable for

• Mounting 55"–75" screens in residential or commercial spaces
• Displays requiring VESA 100 x 100 up to 600 x 400 compatibility
• Installations where a low-profile, near-wall appearance is desired
• Setups needing small independent height adjustments after installation

Key specifications

• Screen size compatibility: 55"–75" (140–191 cm)
• VESA compatibility: from 100 x 100 mm to 600 x 400 mm
• Wall distance: 18 mm
• Height adjustment: ±8 mm per side (independent)
• Maximum load: 40 kg
• Colour and finish: Black, impact- and scratch-resistant powder coating

How to use

Secure the fixed plate to a suitable load-bearing wall following local building codes and using appropriate anchors (not supplied). Attach the matching VESA brackets to the display, lift the display to the mount and engage the quick-release rope-drawn spring latch. Use the adjusting screws to set independent height alignment of ±8 mm per side. The quick-release mechanism can be held to the mounting plate by the supplied magnets when disconnected.

Recommendations

Ensure the wall and fixings chosen are rated for the combined weight of the display and mount. Do not exceed the maximum load of 40 kg. For heavy or high installations, use two installers and verify VESA compatibility before mounting.
