TV-seinäkiinnike Hagor BrackIT L HD

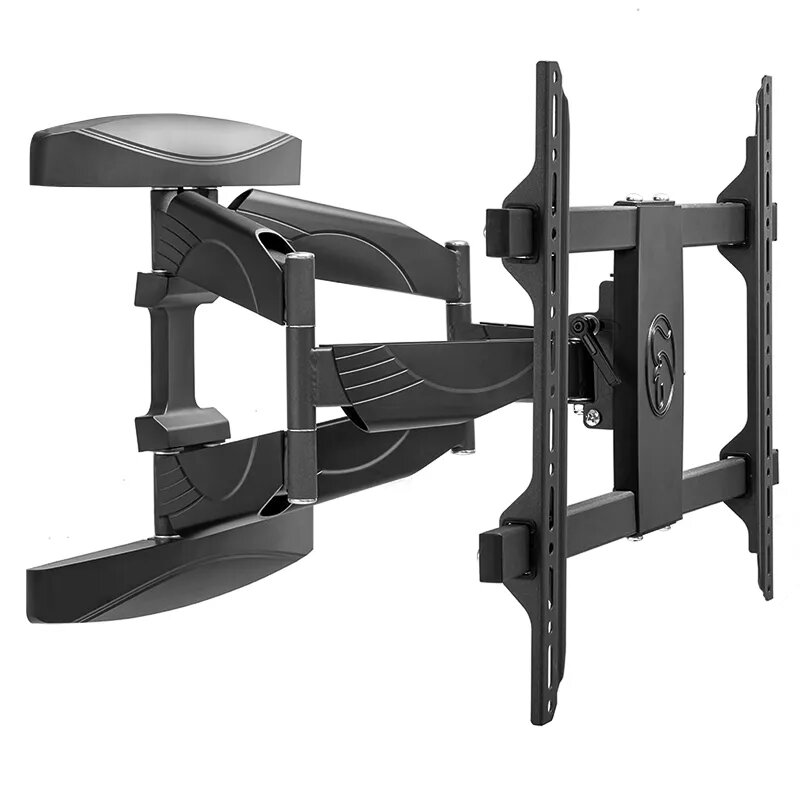

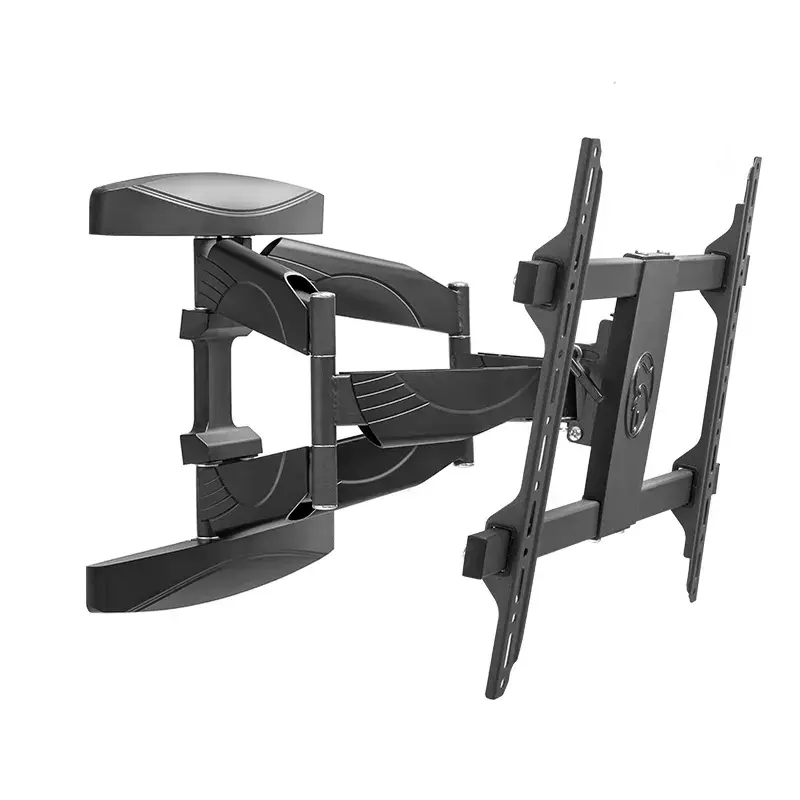

BrackIT L HD Full motion wall mount is designed for single flat screens from 32" to 55" (81–140 cm) and supports VESA patterns from 200 x 100 mm up to 600 x 400 mm. The mount allows installation in landscape or portrait orientation and provides adjustable extension from the wall between 60 mm and 500 mm. Its maximum load capacity is 40 kg and the product is finished in black.

Advantages

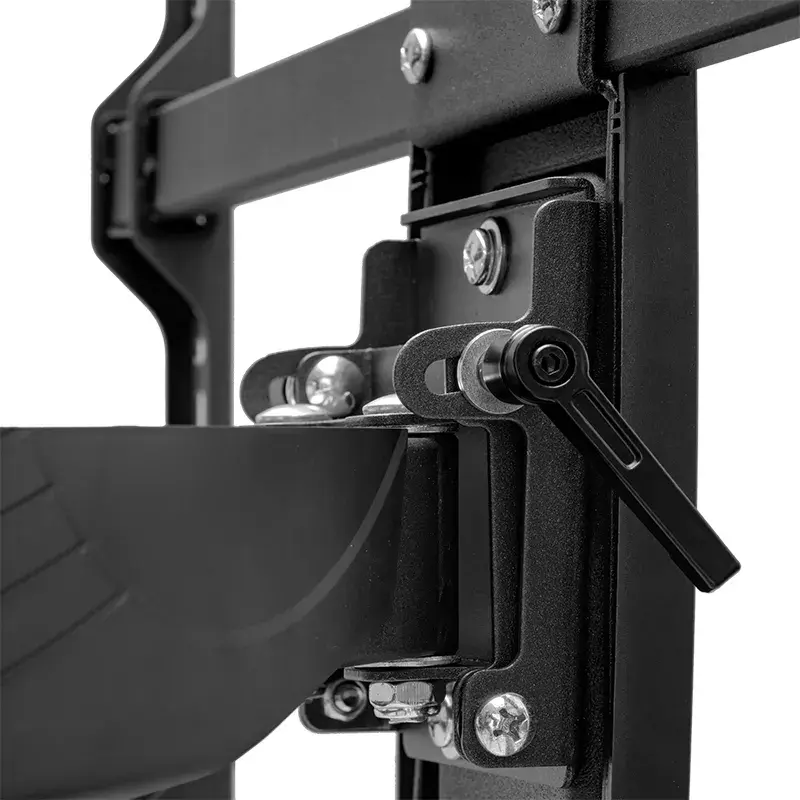

The bracket offers continuous tilt adjustment between -2° and +12° with position locking via two side handles, swivel up to ±45° depending on screen size, and a laterally adjustable level compensation of ±5° (tool required). Cable clips along the arms keep cables tidy without restricting movement. Broad VESA compatibility and a wide extension range deliver flexible placement and viewing angles.

Suitable for

• Mounting 32"–55" TVs or displays (81–140 cm)
• Installations requiring portrait or landscape orientation
• Rooms needing adjustable viewing angle and distance from wall
• Setups where neat cable management along the mount is desired

Key specifications

• Maximum load capacity: 40 kg
• Supported screen size: 32"–55" (81–140 cm)
• VESA compatibility: 200 x 100 mm up to 600 x 400 mm
• Tilt range: -2° to +12°
• Swivel range: up to ±45° (depends on screen size)
• Level compensation: ±5° (tool required)
• Distance to wall: 60 mm min. — 500 mm max.
• Colour: Black

How to use

Attach the universal VESA plate to the back of the screen using the appropriate screws for the screen's VESA pattern, then fix the wall plate to a suitable load-bearing surface following local building regulations. Mount the screen to the arm assembly, adjust the extension to the desired distance from the wall, set the tilt and swivel using the side handles, and lock the position. If fine leveling is required, use a tool to adjust the ±5° compensation.

Recommendations

Ensure the wall and fixings support the combined weight of the mount and screen (up to 40 kg). Use suitable screws and anchors for the wall material and check VESA compatibility before installation. When adjusting tilt or swivel, secure the handles to lock the screen in place and route cables with the supplied clips to avoid pinching during movement.
