TV-seinäpidike Hagor BL Superslim Tilt 600 75" musta

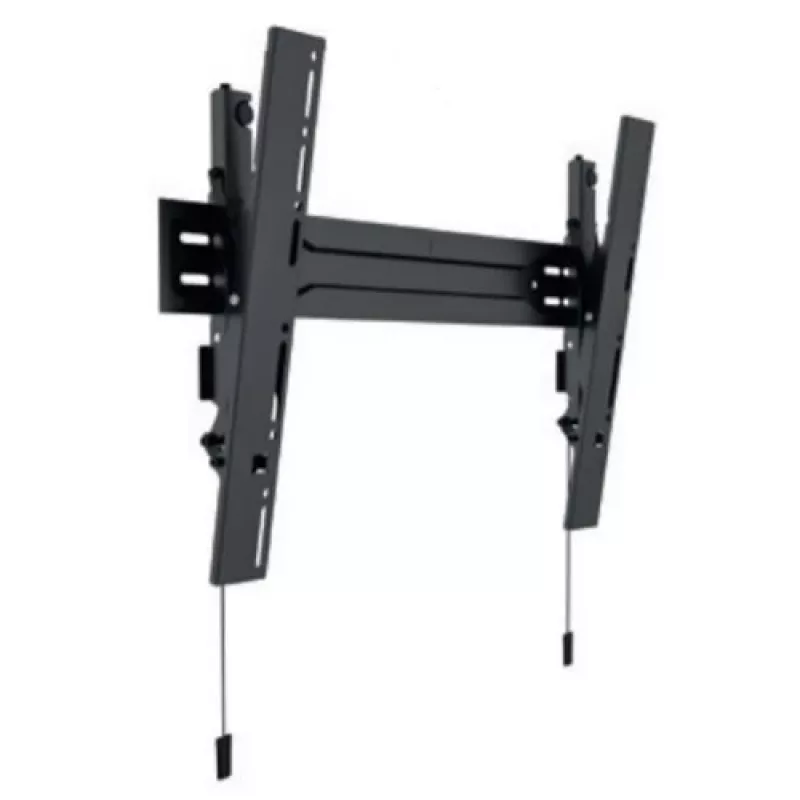

The BL Superslim Tilt 600 is a tiltable wall mount for TVs and screens with diagonals from 55" to 75" (140–191 cm). It provides a very slim 30 mm distance to the wall and a VESA compatibility range from 100 x 100 mm up to 600 x 400 mm. The mount is finished in black with an impact- and scratch-resistant powder coating and supports a maximum load of 35 kg.

Advantages

The design offers a low-profile installation with only 30 mm wall clearance while still allowing a tilt adjustment between 0° and +12°. Independent fine height adjustment (±8 mm) is possible on each side via adjusting screws. A rope-operated quick-release latch at the back enables easy attachment and removal of the screen; magnets hold the latch in place during installation.

Suitable for

• Home living rooms and bedrooms — 55" to 75" flat-panel TVs
• Offices and meeting rooms where a slim wall-mounted display is required
• Public waiting areas and reception spaces with single-display installations

Key specifications

• Screen diagonal: 55"–75" (140–191 cm)
• VESA compatibility: from 100 x 100 mm up to 600 x 400 mm
• Tilt range: 0° to +12°
• Wall distance: 30 mm
• Height adjustment: ±8 mm per side (independent)
• Maximum load: 35 kg
• Colour and finish: Black, impact- and scratch-resistant powder coating

How to use

Mount the wall plate on a suitable load-bearing wall following the VESA pattern and local mounting instructions. Attach the corresponding VESA brackets to the screen and hook the display onto the wall mount using the rope-drawn spring-loaded latch. Use the adjusting screws to set independent height alignment (±8 mm) on each side. Set the required tilt between 0° and +12°. Ensure all fasteners are tightened and the maximum load (35 kg) is not exceeded.

Recommendations

Verify the TV's VESA pattern and weight before installation. Use appropriate wall anchors for the wall type and, if unsure, seek professional mounting services to guarantee secure installation.
