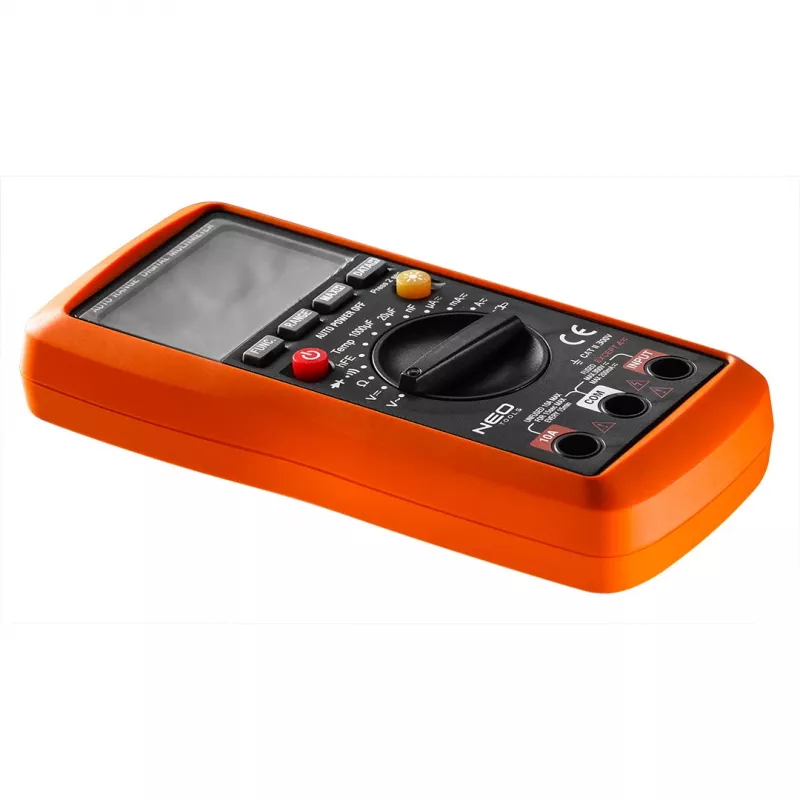

NEO TOOLS 94-001 yleismittari

The NEO TOOLS 94-001 Universal Multimeter is a reliable and versatile measuring instrument designed for professionals and hobbyists. It offers accurate measurements of DC and AC voltage, DC current, resistance, diode, continuity, and transistor hFE. With a clear LCD display and manual ranging, this multimeter is ideal for electrical diagnostics, maintenance, and educational purposes.

Advantages

This multimeter combines essential measurement functions in a compact, easy-to-use design. Its manual ranging allows precise selection of measurement ranges, while the continuity buzzer and diode test enhance troubleshooting efficiency. The included test leads and user manual ensure you can start working immediately.

Suitable for

• Electricians and technicians for routine voltage and current checks
• Hobbyists working on electronics projects
• Automotive electrical system diagnostics
• Educational demonstrations in classrooms

Key specifications

• Measurement Functions: DC Voltage, AC Voltage, DC Current, Resistance, Diode, Continuity, hFE
• Display: LCD, 3.5 digits (max 1999)
• DC Voltage Range: 200mV / 2V / 20V / 200V / 1000V
• AC Voltage Range: 200V / 750V
• DC Current Range: 200µA / 2mA / 20mA / 200mA / 10A
• Resistance Range: 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ
• Diode Test: Yes
• Continuity Test: Yes (with buzzer)
• Transistor hFE Test: Yes
• Ranging: Manual
• Power Source: 1x 9V (6F22) battery
• Safety Rating: CAT I 600V
• Overload Protection: Yes
• Operating Temperature: 0°C to 40°C
• Data Hold: No
• Backlight: No
• Included Accessories: Test leads, User Manual

Recommendations

For accurate and safe measurements, always select the correct range and function before testing. Replace the battery when the display dims. This multimeter is suitable for low-voltage applications; do not use on circuits exceeding 600V.
