Neomounts DS70-450WH1 näyttövarsi 17-42 tuuman - kaasujousi - Topfix - 180°-pysäytin

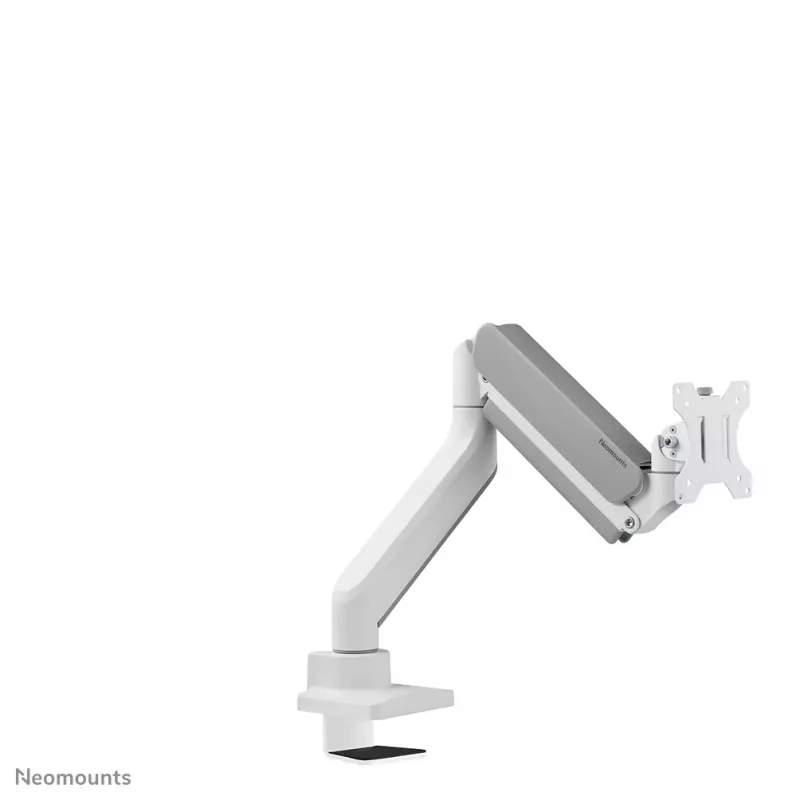

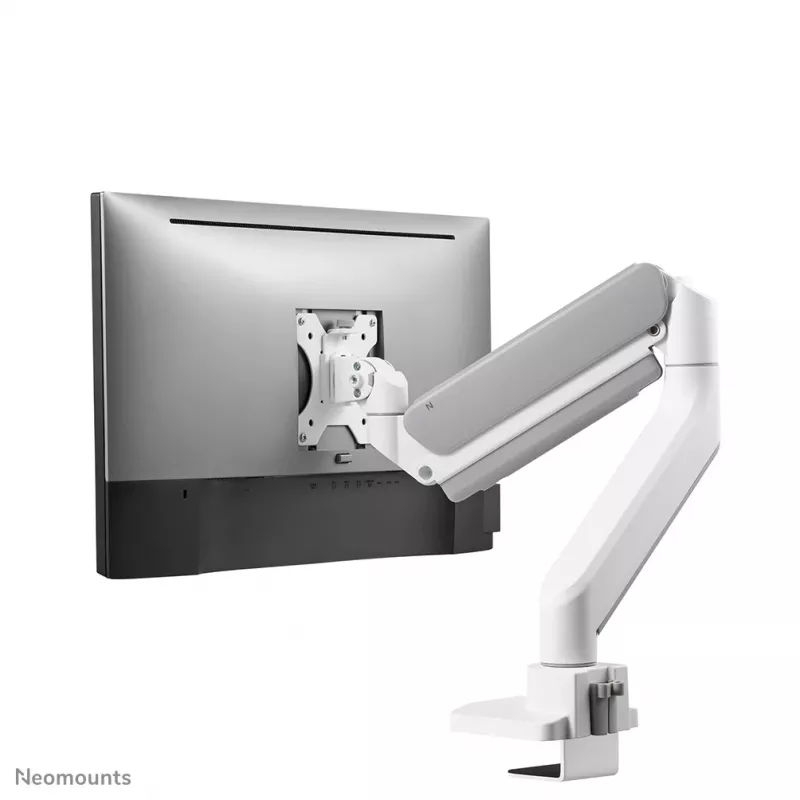

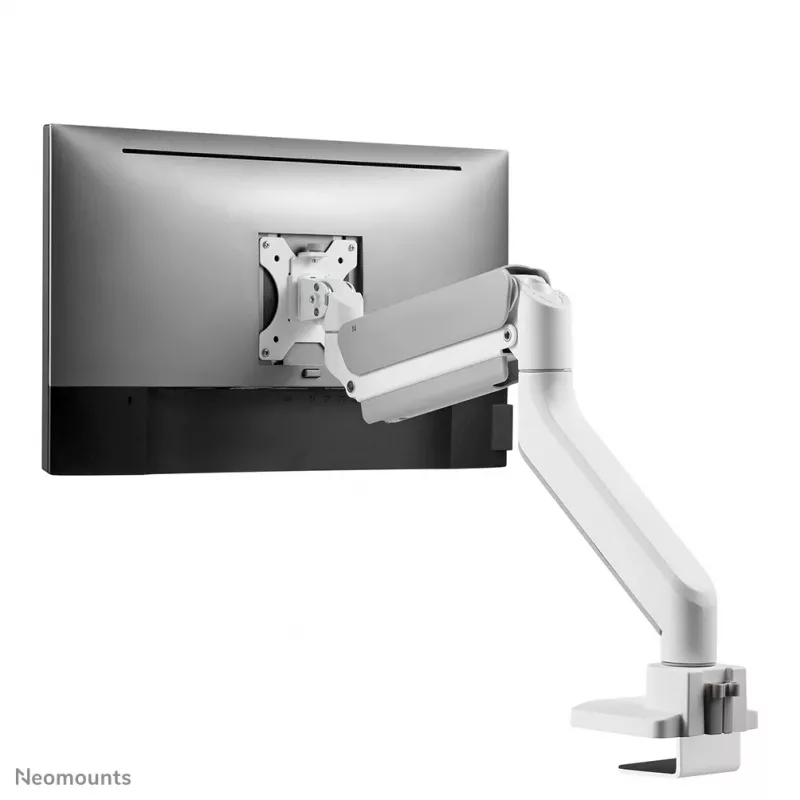

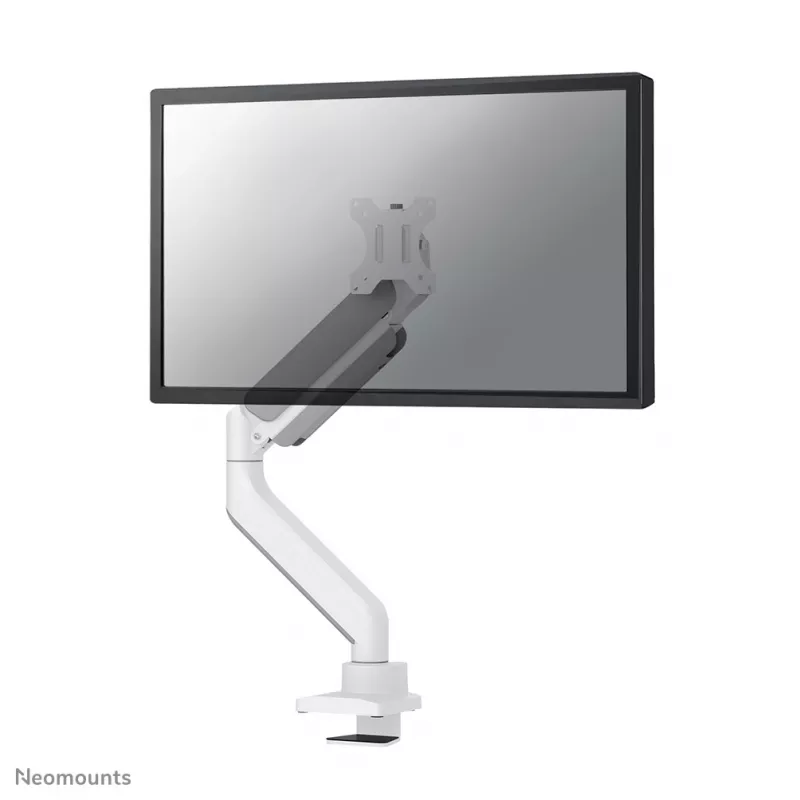

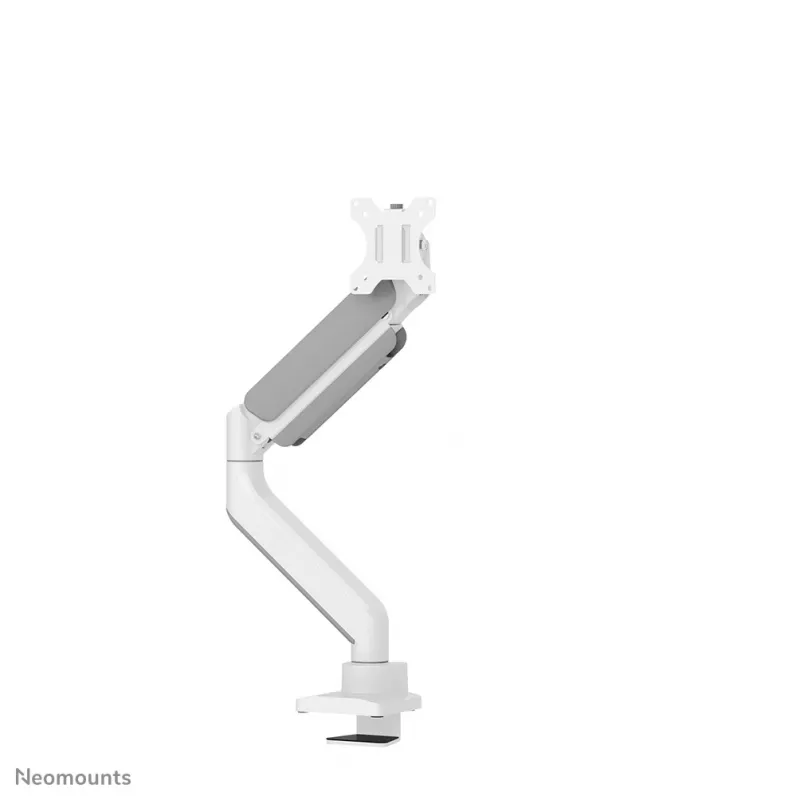

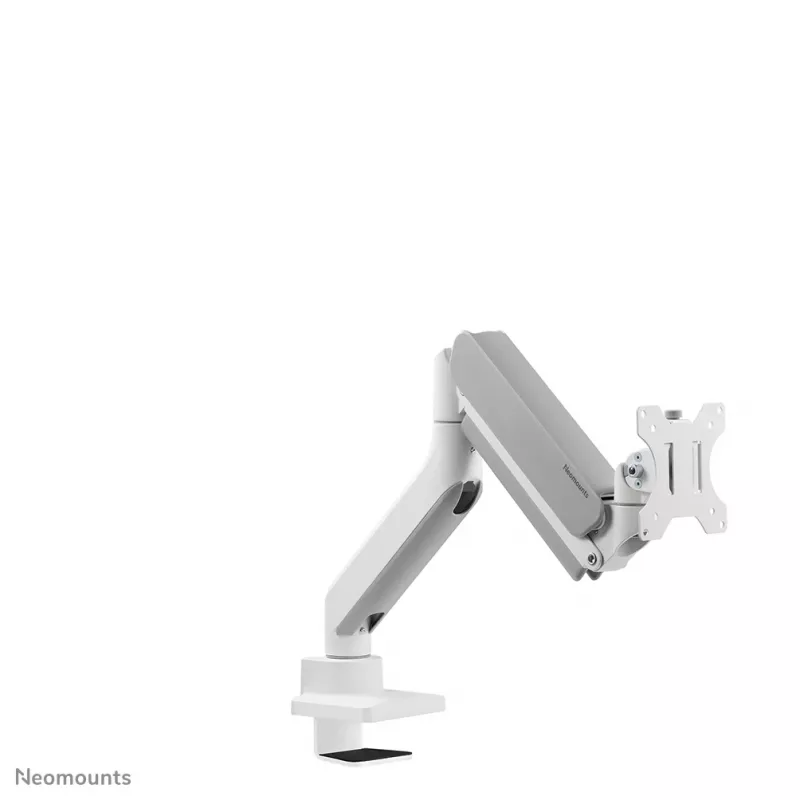

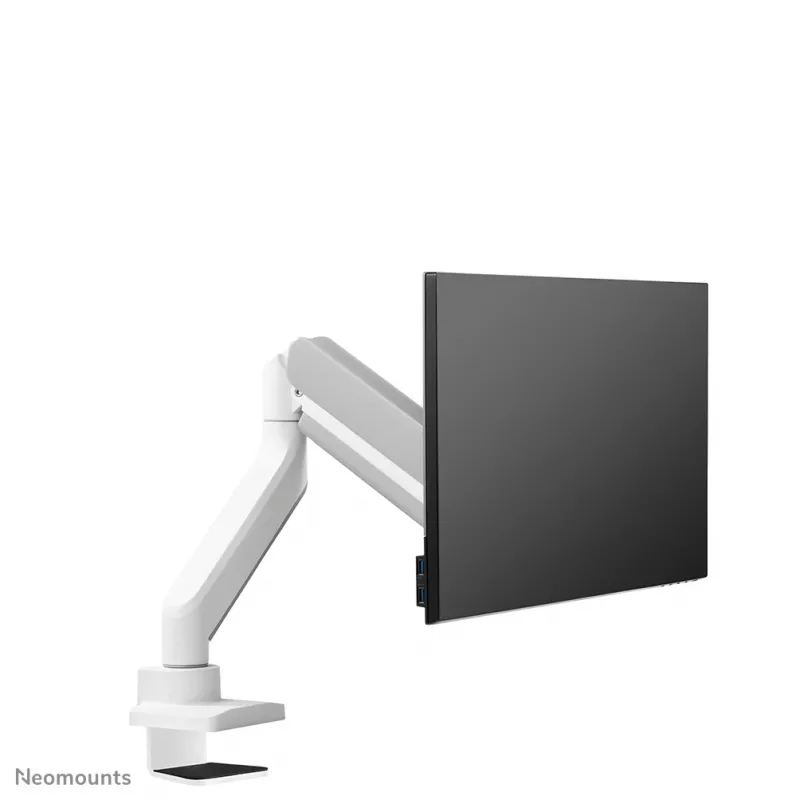

The Neomounts DS70-450WH1 NEXT Core is a full-motion desk mount for one flat screen up to 42" with a maximum load of 15 kg. It provides gas-spring height adjustment (26.1–55 cm), depth adjustment (0–51.4 cm) and full articulation with tilt (90°), rotate (360°) and swivel (180°) movements. The mount includes a quick-release VESA system compatible with 75x75 and 100x100 mm hole patterns and is supplied with both a top-fix clamp and a grommet for desk installation. The inner packaging of the NEXT Core is plastic-free and made from cardboard and paper.

Advantages

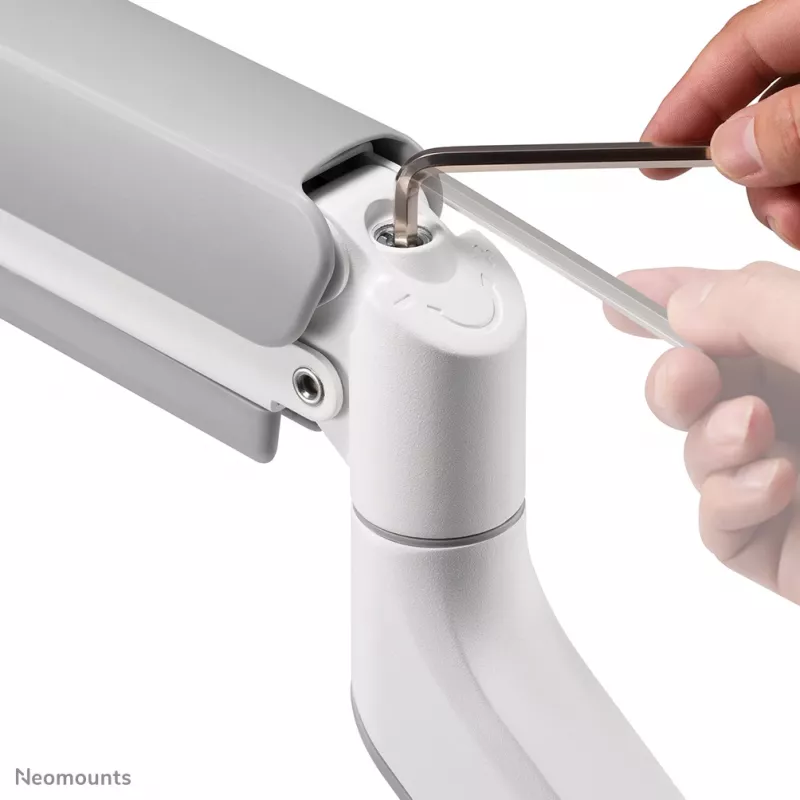

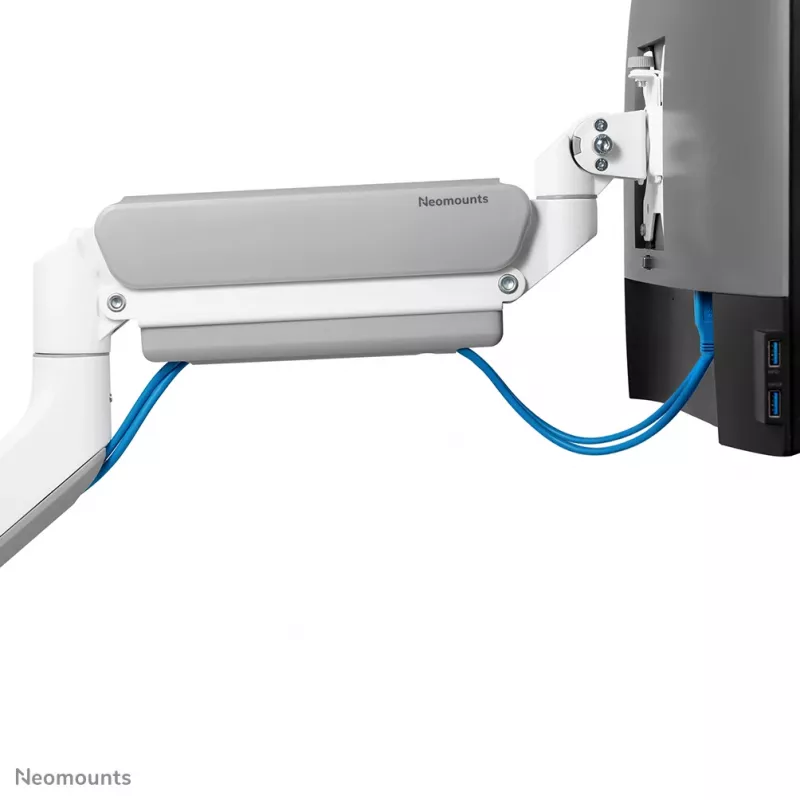

The mount’s gas spring allows smooth and precise height adjustment while depth and articulation features enable flexible positioning for ergonomic viewing. The 180° stop mechanism prevents contact with adjacent walls or panels when adjusting the arm close to a wall. Integrated cable management keeps cables routed neatly. A quick-release VESA and included clamp and grommet simplify installation.

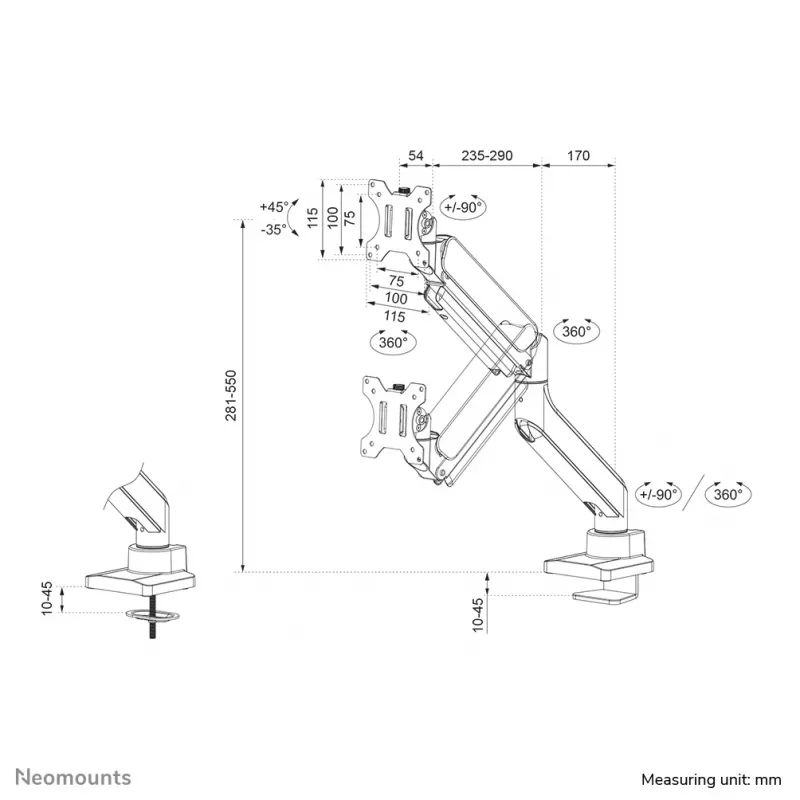

Key specifications

• Screen size compatibility: up to 42"
• Maximum load capacity: 15 kg
• VESA compatibility: 75x75 mm, 100x100 mm

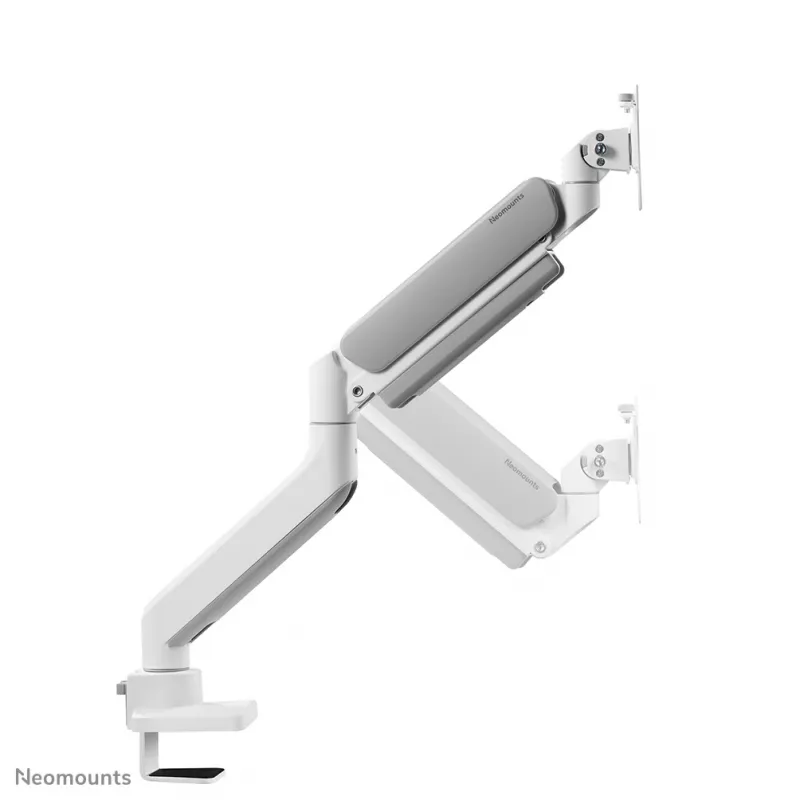

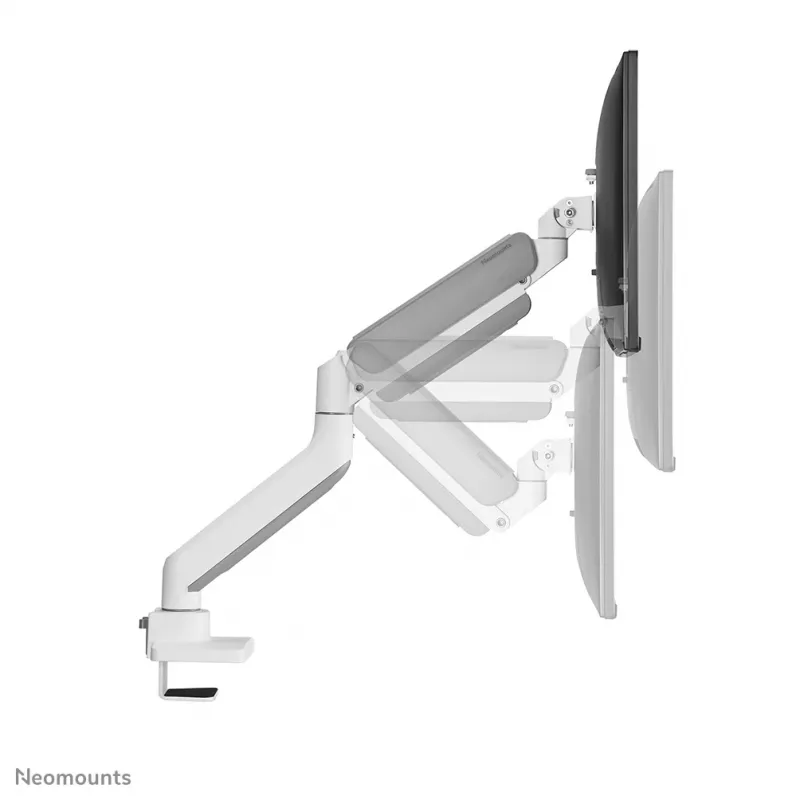

• Height adjustment (gas spring): 26.1–55 cm
• Depth adjustment: 0–51.4 cm
• Tilt range: 90°
• Rotate: 360°

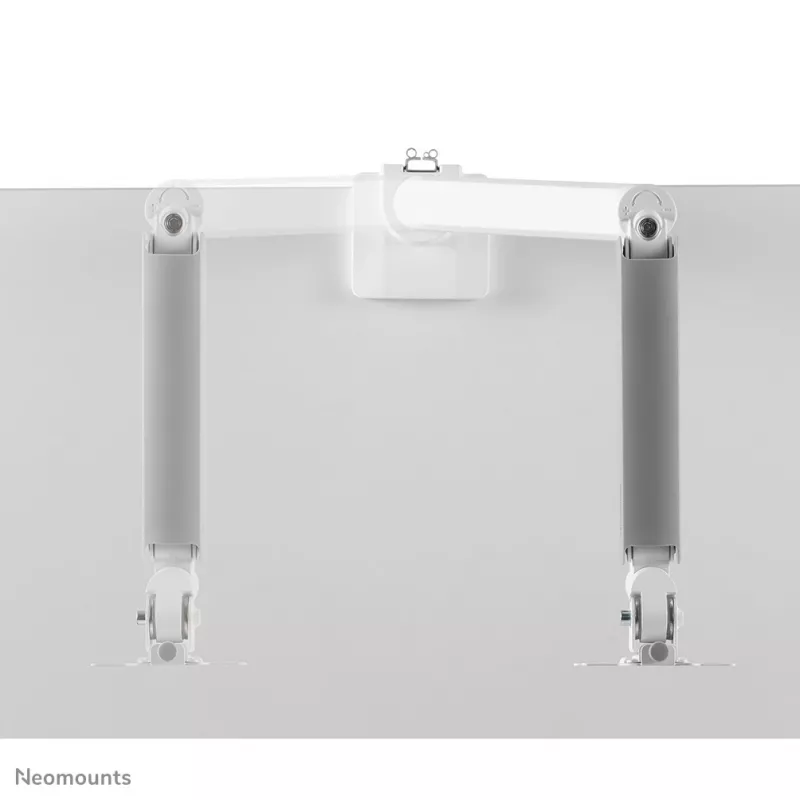

• Swivel: 180° with 180° stop mechanism
• Mounting options: top-fix clamp and grommet included; optional AWL75-450WH wall adapter

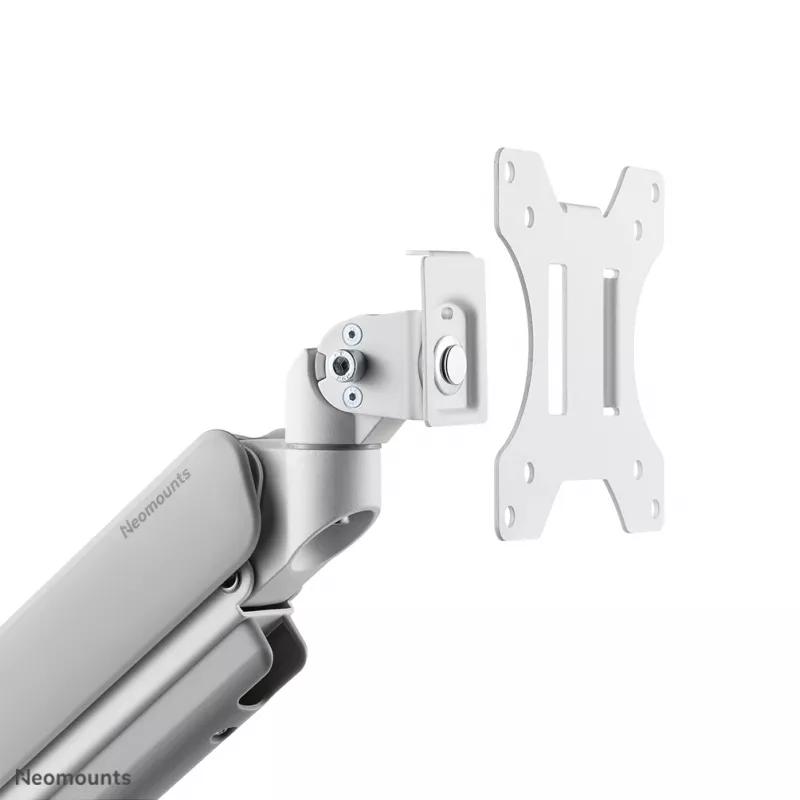

• Quick-release VESA system

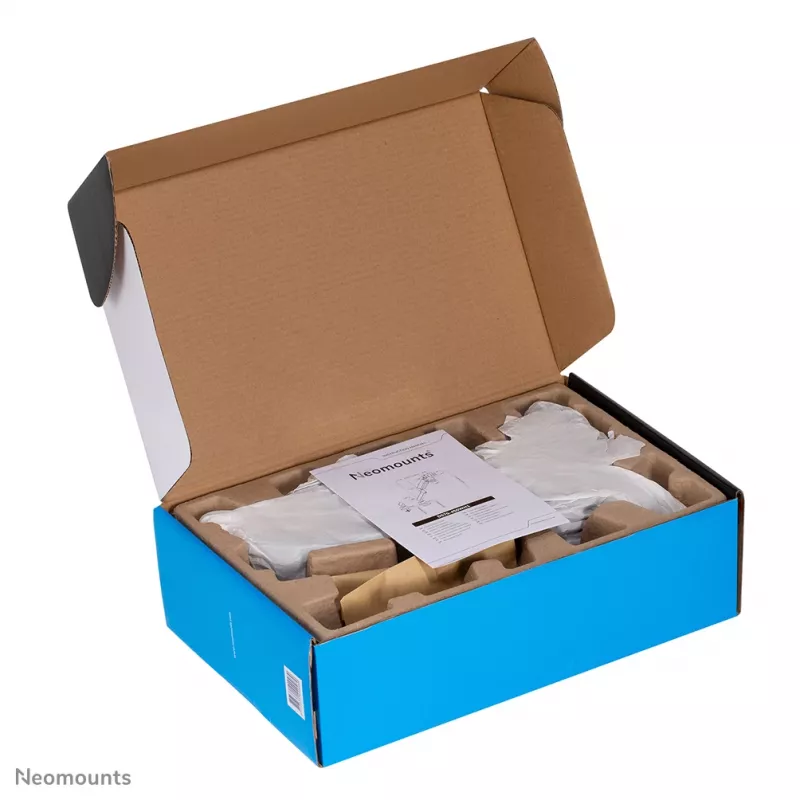

• Inner packaging: plastic-free (cardboard and paper)

How to use

Attach the VESA plate to the screen using the matching 75x75 or 100x100 holes, or use a Neomounts VESA adapter plate for other patterns. Mount the arm to the desk using either the supplied top-fix clamp or the grommet, then secure the quick-release VESA connection to the arm. Adjust screen height with the gas spring between 26.1 and 55 cm and set depth within 0–51.4 cm. Use tilt, rotate and swivel functions to achieve the desired viewing angle; the 180° stop prevents contact with walls or panels when the arm is positioned near them. Route cables through the integrated cable management channels for a tidy setup.

Recommendations

Verify that the monitor weight does not exceed 15 kg and that the screen supports VESA 75x75 or 100x100 mm. For installation on a wall, consider the optional AWL75-450WH wall adapter. Use the included clamp or grommet according to your desk thickness and follow the manufacturer’s instructions for safe assembly.
