Neomounts FPMA-D400 monitorivarsi 10-30"

The Neomounts desk mount FPMA-D400 is a compact desk clamp mount for a single flat screen from 10" up to 30". It supports VESA hole patterns 75x75 and 100x100 mm and has a maximum load capacity of 10 kg. The arm offers manual height adjustment between 7 and 30 cm, depth adjustment from 11 to 34 cm, and a grey finish with integrated cable management to route and hide cables.

Advantages

FPMA-D400 provides tilt, swivel and rotation movement with tilt up to 180°, swivel up to 180° and rotation up to 270°, enabling flexible viewing angles. The mount’s two pivot points and manual height adjustment improve ergonomics to reduce neck and back strain. Included installation materials simplify setup.

Suitable for

• Home and office desks
• Reception counters and service desks
• Workstations where space saving and cable management are needed

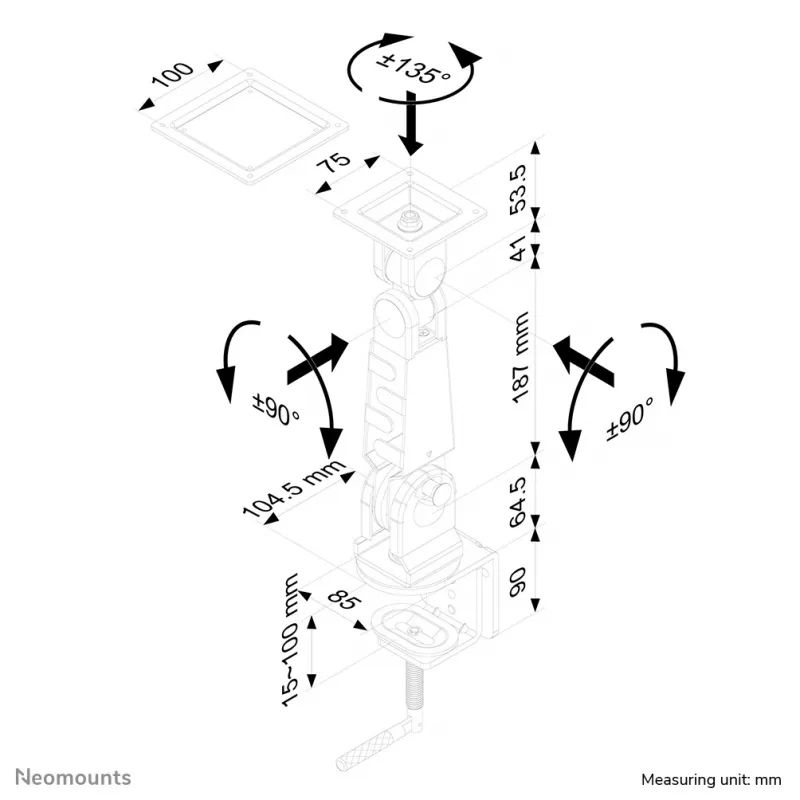

Key specifications

• Model: Neomounts FPMA-D400
• Supported screen size: 10"–30" (up to 76 cm)
• Maximum weight capacity: 10 kg
• VESA compatibility: 75x75 mm and 100x100 mm
• Height adjustment: 7–30 cm (manual)
• Depth adjustment: 11–34 cm
• Tilt: up to 180°; Swivel: up to 180°; Rotate: up to 270°
• Product colour: Grey
• Product weight: 3.81 kg

How to use

Attach the clamp to the desk edge according to the included instructions and secure the arm. Mount the screen using the appropriate VESA holes (75x75 or 100x100 mm) and fasten with the supplied screws. Adjust the arm height and depth manually to the desired position, then set tilt, swivel and rotation to achieve the preferred viewing angle. Route the power and signal cables through the integrated cable management channel to keep the workspace tidy.

Recommendations

Ensure the mounted screen does not exceed the 10 kg weight limit and that the desk edge can support the clamp load. For non-standard VESA patterns, use a compatible Neomounts VESA adapter plate. Periodically check fastenings and cable routing for safety and optimal ergonomics.
