Neomounts FPMA-HAW050 seinäteline Medical valkoinen

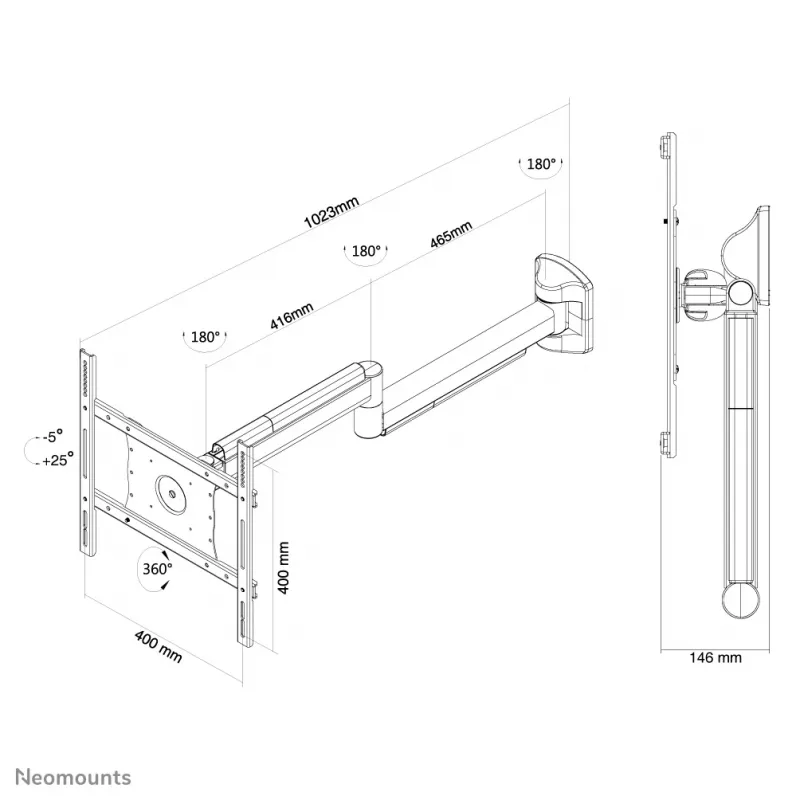

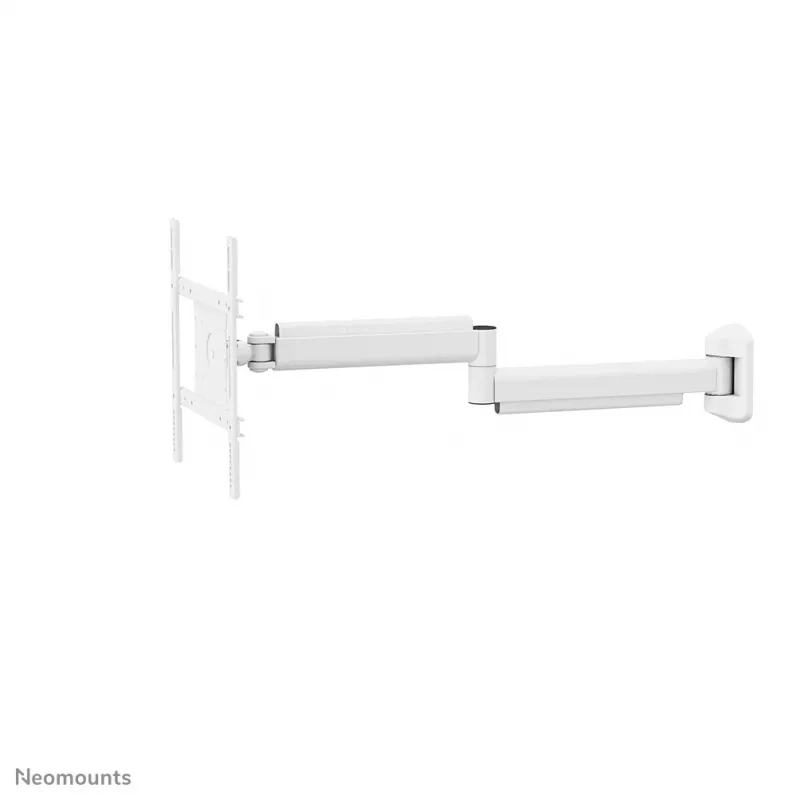

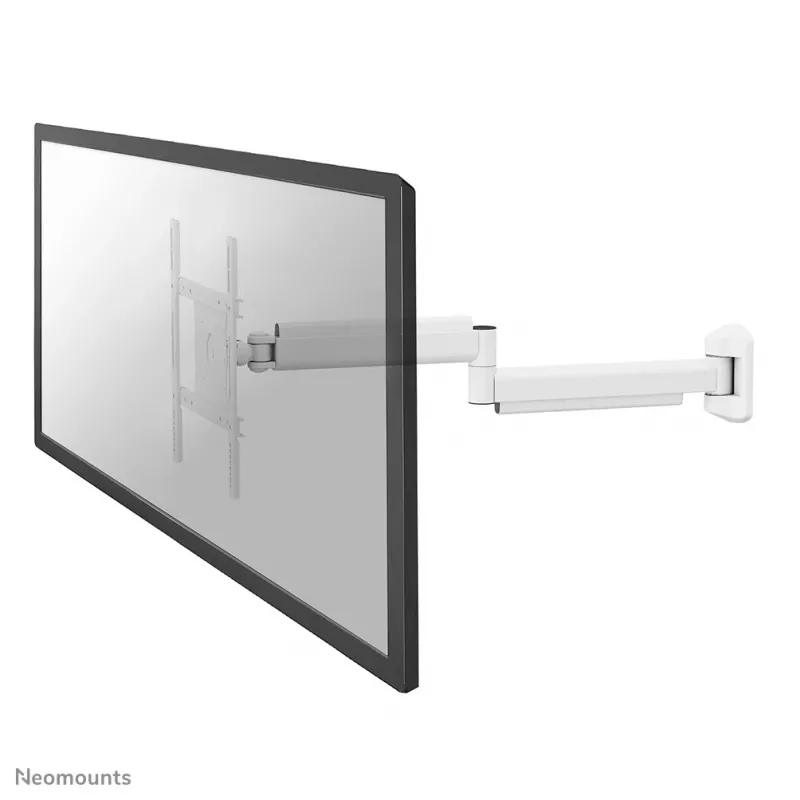

The Neomounts wall mount FPMA-HAW050 is a tilt, turn and swivel mount designed for medical flat screens up to 40" (102 cm). With a white finish and compact footprint, it is intended for wall installation when ceiling mounting or floor placement are not suitable. The arm supports depth adjustment from 15 to 102 cm and includes integrated cable management to conceal and route cables between mount and screen.

Advantages

The mount offers three pivot points with tilt up to 30°, full turn and 180° swivel to enable flexible viewing angles. It supports VESA hole patterns from 100 x 100 mm to 400 x 400 mm and carries up to 10 kg, providing compatibility with a wide range of medical flat screens. All installation materials are included.

Suitable for

• Medical exam rooms and treatment areas
• Patient monitoring screens up to 40"
• Clinics and healthcare facilities where wall mounting is required

Key specifications

• Model: FPMA-HAW050
• Maximum screen size: 40" (102 cm)
• Maximum weight capacity: 10 kg
• VESA compatibility: 100 x 100 mm to 400 x 400 mm
• Tilt range: 0° to 30°
• Depth adjustment: 15–102 cm
• Colour: White

How to use

Attach the mounting bracket to a suitable load-bearing wall using the included installation materials and follow the supplied instructions. Fix the VESA plate to the display (use Neomounts VESA adapter plates if needed for other hole patterns), hang the display on the arm assembly and secure it according to the manual. Adjust tilt, turn and swivel to the required viewing angle and route cables through the integrated cable management.

Recommendations

Ensure the wall structure can support the combined weight of the mount and display (maximum 10 kg). Use appropriate anchors for the wall type and verify VESA compatibility before installation.
