Neutrik NLT8FX-BAG speakON 8-napainen liitin, musta, polyamidi, sinkki, IP50, 250V, 50A

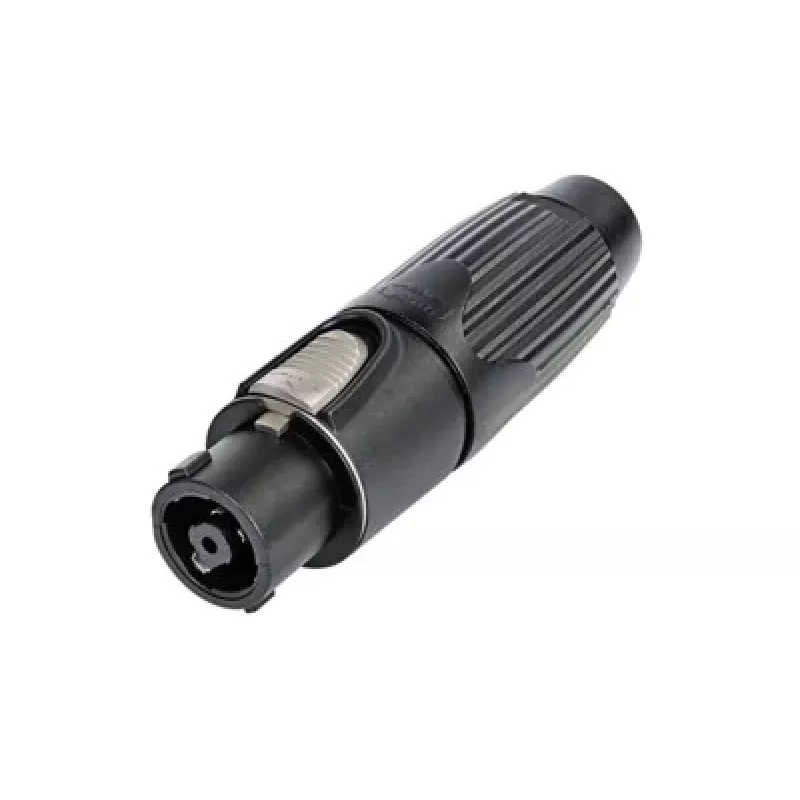

The Neutrik NLT8FX-BAG is a professional-grade speakON 8-pole female cable connector designed for high-power audio applications. Built with a robust polyamide housing and zinc diecast latch, it offers reliable performance and durability. The connector features a quick lock mechanism for secure mating and screw-type terminals for easy wiring. With an IP50 rating, it provides protection against dust ingress, making it suitable for stage, studio, and touring environments.

Advantages

This connector delivers exceptional reliability and ease of use. The quick lock system ensures fast and secure connections, while the silver-plated contacts guarantee low resistance and high conductivity. The rugged construction withstands harsh conditions and frequent mating cycles, exceeding 1000 cycles. Its compact design accommodates cable diameters from 8 to 20 mm, offering flexibility for various cable types.

Suitable for

• Professional audio systems
• PA and sound reinforcement
• Stage lighting and power distribution
• Amplifier and speaker connections
• High-current audio signal transmission

Key specifications

• Connector Type: speakON
• Number of Poles: 8
• Gender: Female
• Connection Type: Cable Connector
• Rated Voltage: 250 V
• Rated Current (RMS continuous): 30 A
• Rated Current (audio signal): 50 A (50% duty cycle)
• Contact Resistance: < 3 mΩ
• Dielectric Strength: 4 kVdc
• Insulation Resistance: > 1 GΩ
• IP Protection Rating: IP50
• Housing Material: Polyamide
• Latch Material: Zinc Diecast
• Contact Plating: Silver
• Cable O.D. Range: 8 - 20 mm
• Wiring Method: Screw-type terminals
• Locking Mechanism: Quick Lock
• Color: Black
• Temperature Range: -30 °C to +80 °C
• Mating Cycles: > 1000

Recommendations

For optimal performance, use with Neutrik speakON compatible cables and connectors. Ensure proper cable stripping and secure screw termination to maintain low contact resistance. Suitable for both permanent installations and portable applications.
