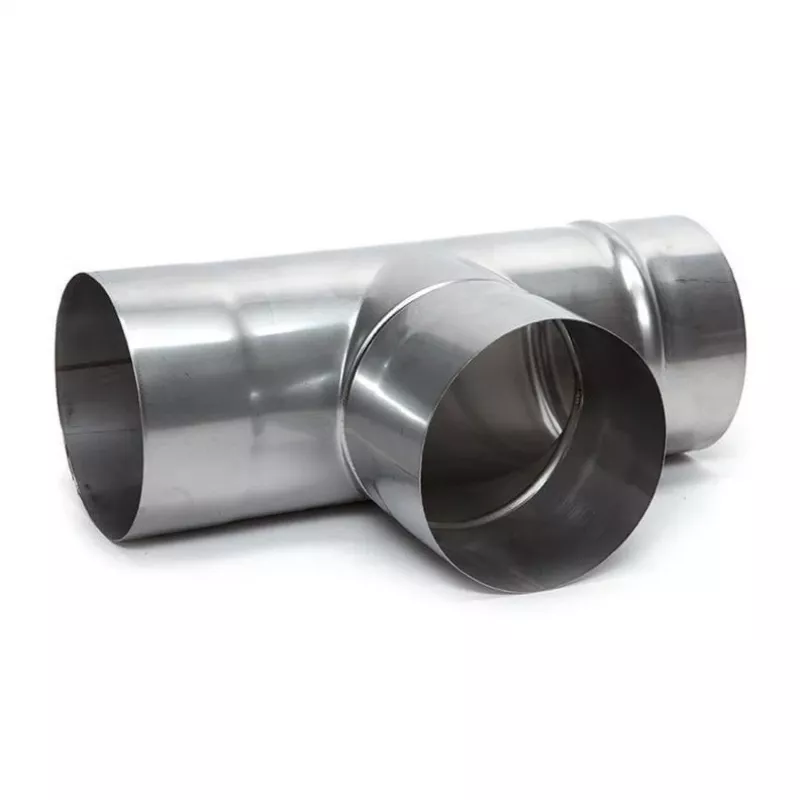

Sinkitty teräs savupiippuvedon T-liitin 107mm x 160mm 90°

Engineered for robust exhaust ventilation, this tee connector handles temperatures up to 250°C with a 0.6 mm galvanized steel body, providing a reliable 90° branch from a 107 mm main flue to a 160 mm appliance connection.

Overview

Part of a single-wall flue system, this tee enables a perpendicular branch connection or serves as a cleaning and inspection port. Its spigot/socket ends are designed for use with clamps (not included) to ensure a secure fit. The galvanized finish offers good corrosion resistance in dry, indoor applications, and the component complies with EN 1856-2.

What stands out

• 90° tee configuration for efficient branch connections
• Dual diameter: 107 mm main flue, 160 mm branch
• Galvanized steel construction with 0.6 mm wall thickness
• Maximum operating temperature of 250°C
• Compliant with EN 1856-2 for safety and performance

Technical details

• Product type: Chimney flue tee connector
• Main flue diameter: 107 mm
• Branch flue diameter: 160 mm
• Connection angle: 90 degrees
• Material: Galvanized steel
• Wall thickness: 0.6 mm
• Finish: Galvanized
• System type: Single wall flue system
• Application: Exhaust gas ventilation, appliance connection, cleaning access
• Connection type: Spigot/socket (requires clamps for secure fit)
• Maximum operating temperature: 250°C
• Corrosion resistance: Good for dry applications
• Standard compliance: EN 1856-2
• Installation environment: Indoor use
• Compatibility: Compatible with 107mm and 160mm galvanized steel flue pipes
• Function: Allows for a 90-degree branch connection to a main flue or provides a cleaning/inspection port
• Color: Metallic grey

Our verdict

A practical and durable tee for galvanized flue systems, ideal for creating branch lines or inspection points in dry indoor installations.
