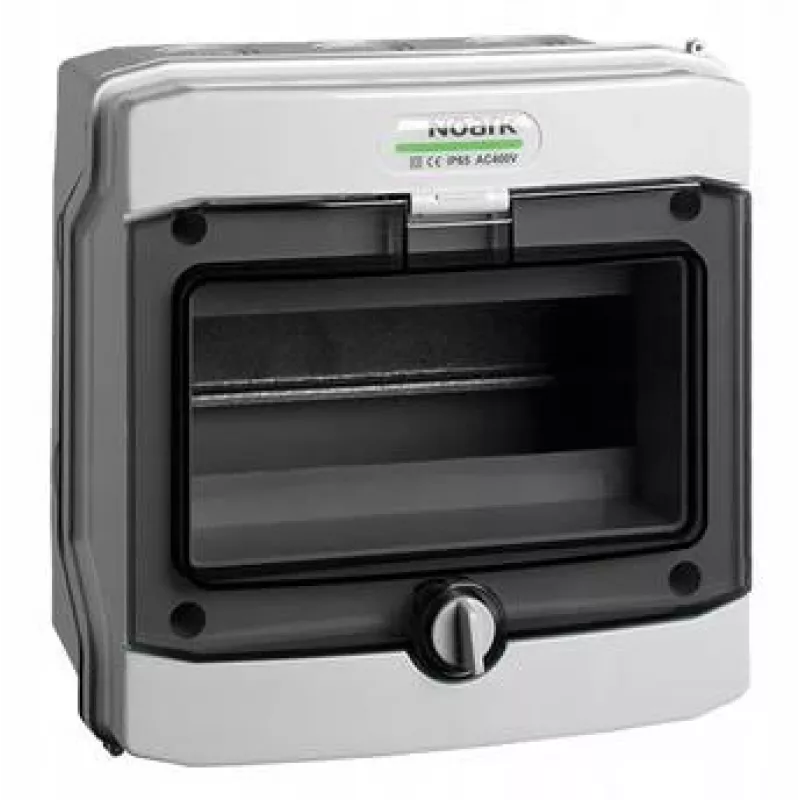

NOARK PHS 6T pinta-asennettava kotelo IP65 1x6 moduulia harmaa

The NOARK PHS 6T is a high-quality surface mounted electrical enclosure designed for indoor and outdoor installations. With an IP65 protection rating and IK08 impact resistance, it provides reliable protection for electrical components in demanding environments. The enclosure features a transparent polycarbonate door for easy inspection and is made from durable ABS plastic in light grey (RAL 7035). It accommodates up to 6 modules in a single row and includes an integrated DIN rail and N+PE terminal blocks for quick wiring.

Advantages

Robust construction with IP65 and IK08 ratings ensures protection against dust, water jets, and mechanical impacts. The transparent door allows visual status checks without opening. Compact design saves space while offering ample capacity for 6 modules. Easy installation with pre-mounted DIN rail and terminal blocks.

Suitable for

• Distribution boards in residential and commercial buildings
• Control and automation systems
• Outdoor electrical installations
• Industrial environments requiring dust and water protection

Key specifications

• Brand: NOARK
• Model: PHS 6T
• EAN: 8592765132628
• Product Type: Surface Mounted Electrical Enclosure
• IP Protection Rating: IP65
• IK Impact Rating: IK08
• Number of Modules: 6
• Number of Rows: 1
• Mounting Type: Surface
• Enclosure Material: ABS
• Door Material: Polycarbonate
• Door Type: Transparent
• Colour: Grey (RAL 7035)
• Rated Insulation Voltage (Ui): 500 V
• Rated Operational Voltage (Ue): 400 V
• Operating Temperature: -25°C to +60°C
• Glow Wire Test (Base): 650°C
• Glow Wire Test (Door): 850°C
• Standards Compliance: EN 62208, EN 61439-1, EN 60670-24
• Terminal Blocks Included: N+PE
• DIN Rail: Integrated

Recommendations

For optimal performance, ensure proper sealing of cable entries and use appropriate cable glands rated for IP65. The enclosure is suitable for use with NOARK modular devices and other standard DIN rail components.
