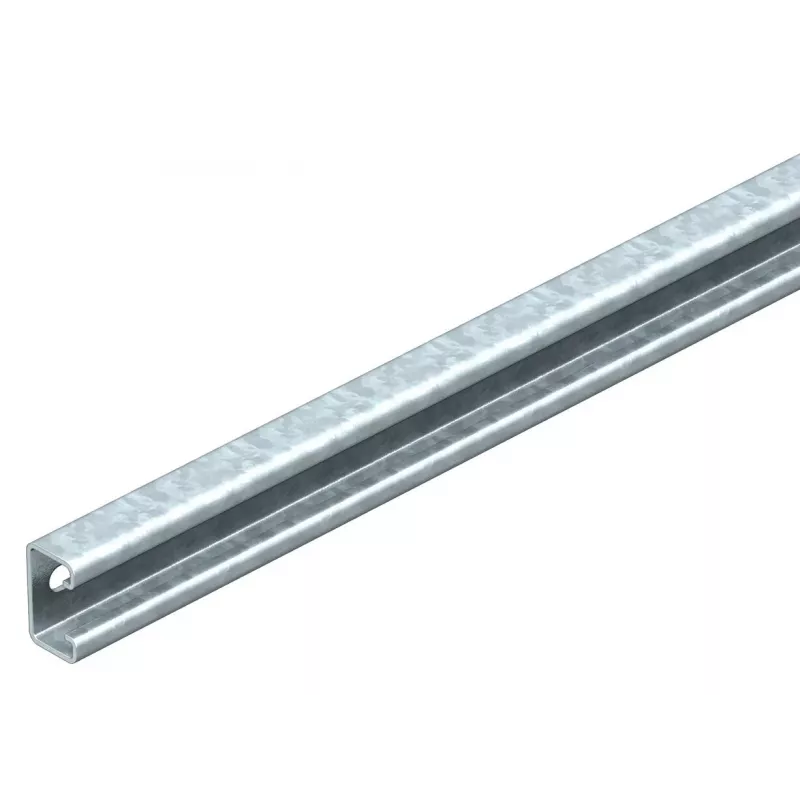

OBO Bettermann MS-sarja C-profiili asennuskisko 40x22 mm, kuumasinkitty teräs, 4920 mm pituus, uritettu 6007244

The OBO Bettermann MS series C-profile strut channel provides a robust and versatile support structure for electrical and industrial installations. Its slotted design allows for flexible positioning of fittings and accessories, enabling quick and secure assembly without field drilling.

Advantages

The 40 x 22 mm profile with 1.5 mm wall thickness delivers high load-bearing capacity while remaining lightweight. Pre-galvanized steel offers reliable corrosion resistance for indoor and dry outdoor environments. Continuous slot holes (9 x 15 mm) every 50 mm ensure precise alignment and easy adjustment of mounted components.

Suitable for

• Supporting cable trays, conduits, and pipework
• Building service installations in commercial and industrial buildings
• Constructing frames, racks, and mounting structures
• Use with OBO Bettermann MS system connectors and clamps

Key specifications

• Profile dimensions: 40 mm width x 22 mm height
• Length: 4920 mm
• Material: Steel, pre-galvanized (strip galvanized)
• Wall thickness: 1.5 mm
• Slot holes: 9 x 15 mm
• Weight per meter: 1.5 kg/m

Recommendations

For outdoor or highly corrosive environments, consider OBO Bettermann hot-dip galvanized or stainless steel profiles. Always use compatible MS series fittings to maintain system integrity and load ratings.
