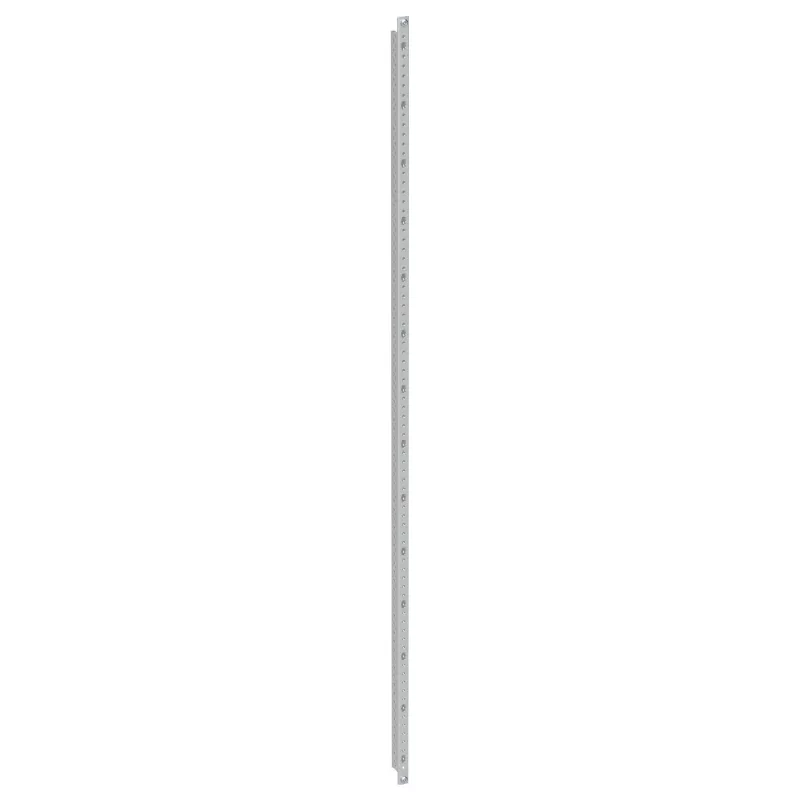

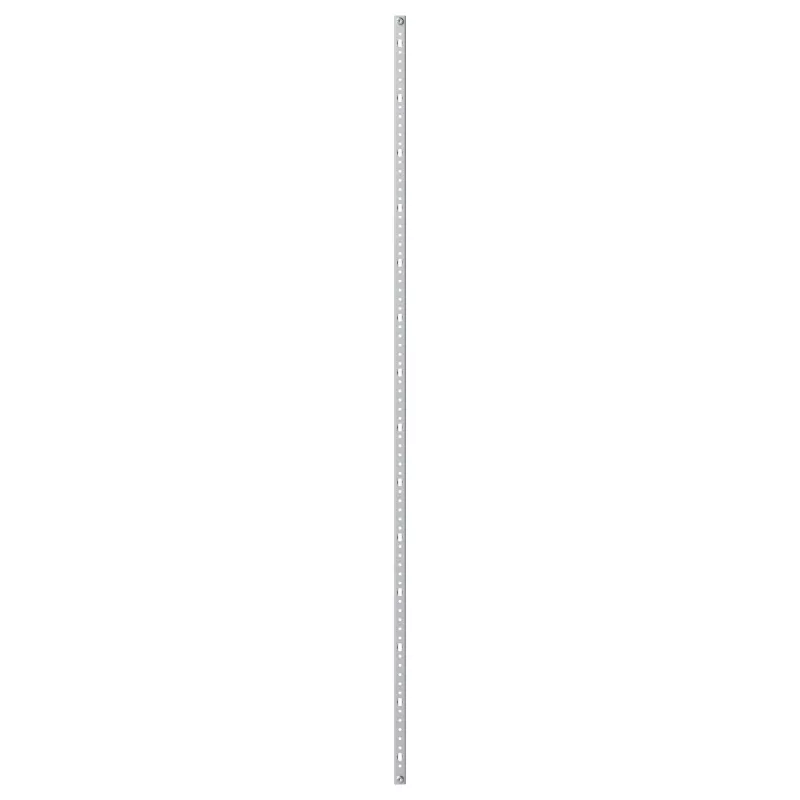

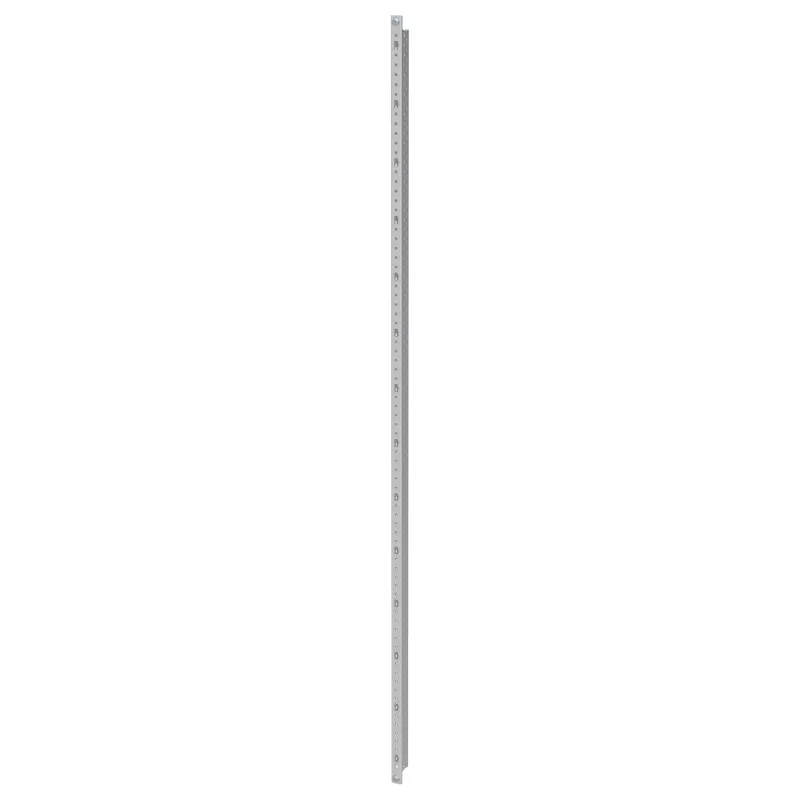

Striebel & John ED13 profiilikisko DIN-kisko 240 mm

The Striebel & John ED13 Profilschiene is a high-quality DIN rail designed for mounting modular electrical devices in distribution boards. Manufactured by ABB Striebel & John, this perforated top-hat profile rail complies with EN 60715 TH35-7.5 standards, ensuring reliable performance and easy installation.

Advantages

Galvanized steel construction provides excellent corrosion protection and durability. The perforated design allows for flexible positioning of devices and efficient heat dissipation. Compatible with the ED13 series distribution boards, it offers a secure mounting solution for up to 12 modules.

Suitable for

• Mounting modular electrical devices such as circuit breakers, contactors, and terminals
• Use in Striebel & John ED13 series distribution boards
• Industrial and commercial electrical installations requiring standardized DIN rail mounting

Key specifications

• Rail Type: DIN Rail (Top-Hat Profile)
• Standard: EN 60715 TH35-7.5
• Material: Galvanized Steel
• Length: 240 mm
• Width: 35 mm
• Height: 7.5 mm
• Perforation: Perforated
• Mounting Type: Screw Mounting
• Color: Metallic
• Module Capacity: 12 Modules
• Product Series: ED13

Recommendations

For optimal installation, use with compatible Striebel & John ED13 distribution boards and appropriate screw mounting hardware. Ensure the rail is securely fixed to support the weight of mounted devices.
