Striebel & John mittarikenttä 7RE 2ZBF17B2 esikokoonpantu BKE-I:llä 2CPX054075R9999

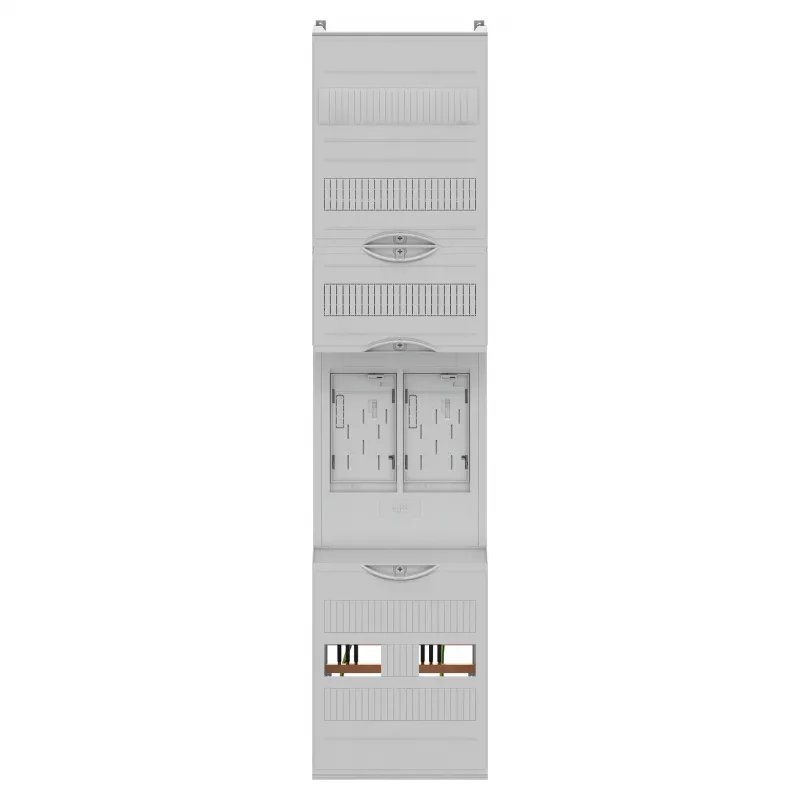

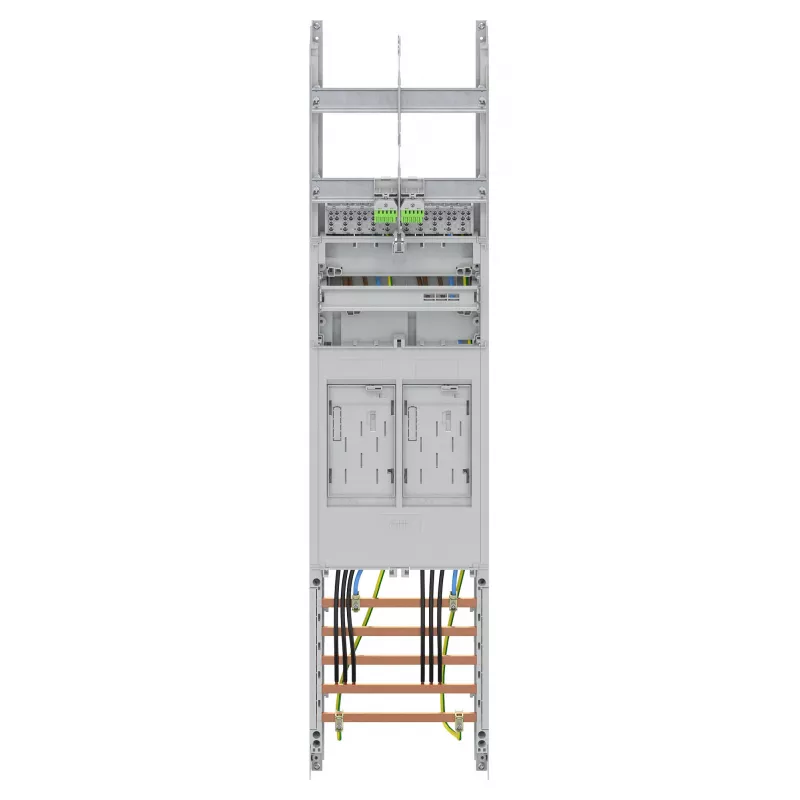

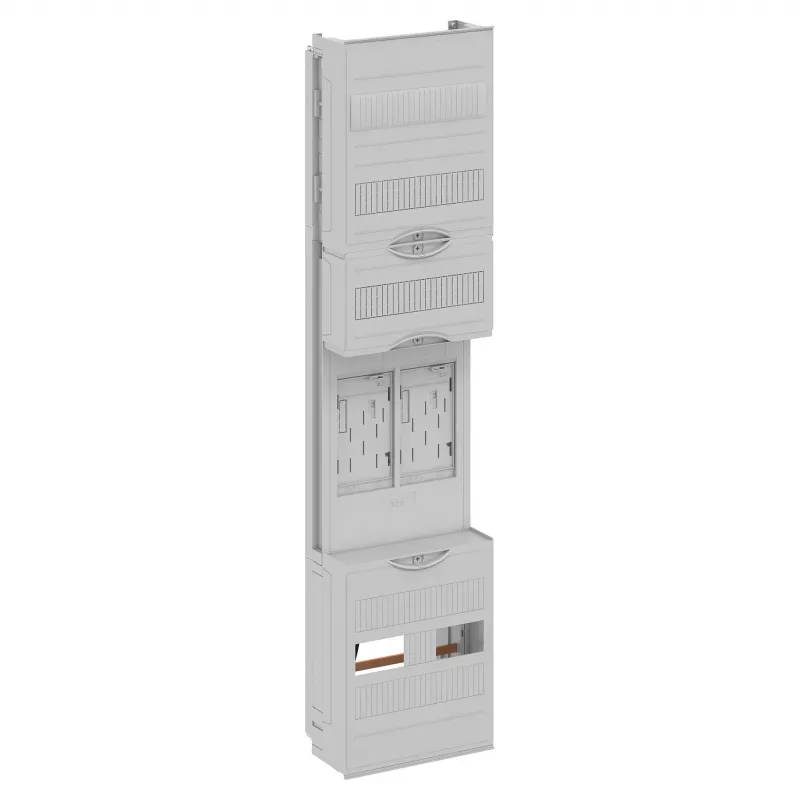

The Striebel & John Meter Panel 7RE 2ZBF17B2 is a pre-wired meter field designed for residential and commercial electrical installations. It features 2 eHZ meter places with integrated BKE-I, 7 distribution rows with 12 TE each, and a 5-pole busbar system (10 mm²). The panel is VDE-tested and comes with a main terminal block (HLAK) 5-pole, 25 mm². Rated current up to 63 A, rated voltage 230/400 V AC. Made of galvanized sheet steel, suitable for flush-mounted or surface-mounted cabinets.

Advantages

Pre-wired for quick installation; integrated BKE-I for eHZ meters; spacious 7 rows with 12 TE each; VDE certified for safety and reliability.

Suitable for

• Residential electrical distribution
• Commercial building installations
• Metering applications with eHZ meters

Key specifications

• Product Type: Meter Field
• Meter Places: 2 (eHZ with BKE-I)
• Distribution Rows: 7
• Module Units per Row: 12 TE
• Wiring: Pre-wired
• Main Terminal Block: 1x 5-pole, 25 mm²
• Rated Current: Up to 63 A
• Rated Voltage: 230/400 V AC
• APZ Space: Integrated
• Material: Galvanized Sheet Steel
• Mounting: For flush-mounted or surface-mounted cabinets
• Standards: VDE-tested
• Busbar System: 5-pole, 10 mm²
• SLS Breaker Space: Prepared for 3-pole SLS breakers

Recommendations

Ensure compatibility with your meter type and cabinet dimensions. Professional installation recommended.
