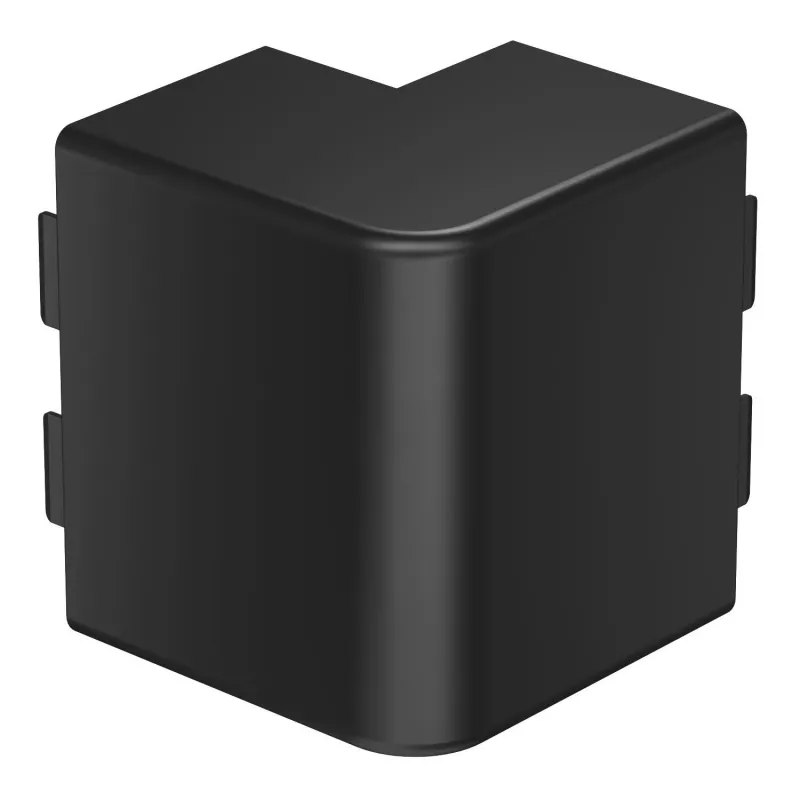

OBO WDK HA60110SW ulkokulmasuojus, 60 x 110 mm, musta 6191778

When cable trunking meets a 90-degree external corner, an open joint can leave cables exposed and the installation looking unfinished. The OBO WDK HA60110SW external corner cover closes that gap cleanly, snapping onto the duct to maintain a continuous, professional appearance.

Who is it for

Electricians and installers working with the OBO WDK cable trunking system in indoor electrical installations. It suits projects where a neat finish at external corners is required, without the need for cutting or mitring the duct.

Main features

• Designed for OBO WDK trunking with internal dimensions 60 x 110 mm
• 90-degree external corner cover, snap-on mounting
• Made from PVC, colour black (RAL 9005)
• Flame-retardant and self-extinguishing
• Matches the WDK system profile for a seamless look

Specifications

• Product type: External corner cover
• System compatibility: OBO WDK cable trunking
• Suitable duct dimensions (H x W): 60 x 110 mm
• Corner type: External, 90-degree
• Material: PVC (polyvinyl chloride)
• Colour: Black, RAL 9005
• Mounting method: Snap-on / clip-on
• Halogen-free: No
• Self-extinguishing: Yes
• UV-resistant: No
• Operating temperature range: -5 to +60 °C
• Fire behaviour: Flame-retardant
• Application area: Indoor cable management, electrical installations

Tips

Ensure the trunking is cut square and the cover is aligned before pressing firmly to snap it into place. For a consistent appearance, use OBO WDK covers at all corners of the installation.
