Off-Grid Hybrid Solar -vaihtosuuntaaja AZO Digital ESB 6KW-24

The AZO Digital ESB 6KW-24 Off-Grid Hybrid Solar Inverter is a high-performance power solution designed for off-grid and backup power applications. With a rated output of 6000W and pure sine wave output, it ensures clean and stable power for sensitive electronics. The inverter supports a 24V battery system and integrates an MPPT solar charge controller with a maximum PV input of 6000W, making it ideal for solar energy systems.

Advantages

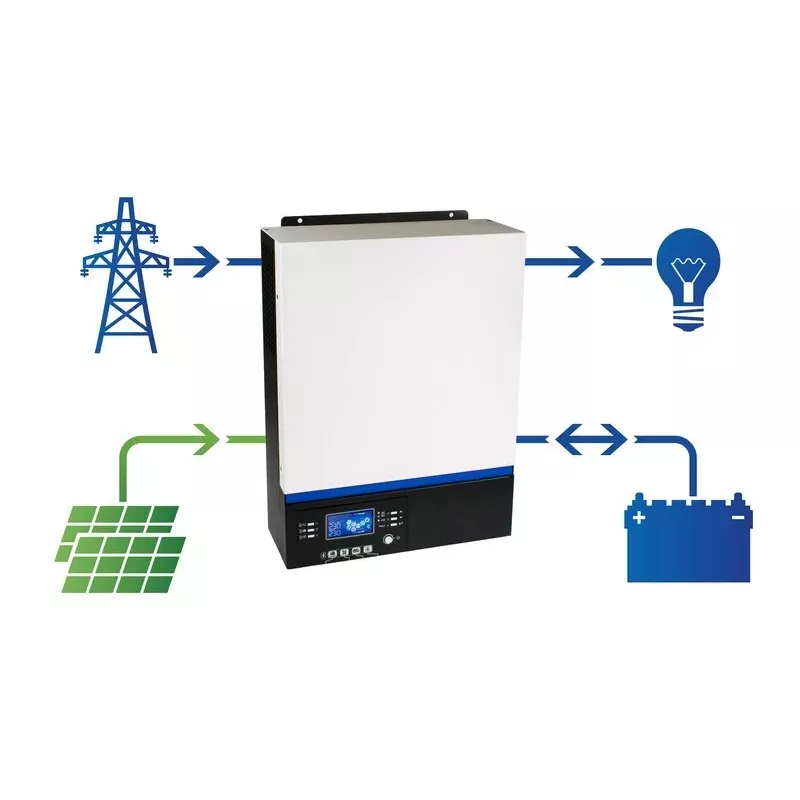

This inverter offers seamless switching between grid and battery power with a transfer time of just 10ms in UPS mode, protecting your devices from power interruptions. Its hybrid functionality allows simultaneous use of solar, battery, and grid power, optimizing energy usage. The built-in MPPT controller maximizes solar harvest with a voltage range of 120V-450V DC and a charge current of up to 120A.

Suitable for

• Off-grid homes and cabins
• Backup power for critical loads
• Solar energy storage systems
• Remote monitoring stations

Key specifications

• Rated Power: 6000W (6kW)
• Battery Voltage: 24V DC
• Output Waveform: Pure Sine Wave
• Peak Surge Power: 12000VA (5 seconds)
• Max PV Array Power: 6000W
• Max PV Open Circuit Voltage: 500V DC
• MPPT Voltage Range: 120V-450V DC
• Max Solar Charge Current: 120A
• Max AC Charge Current: 100A
• AC Output Voltage: 230V AC (Single Phase)
• AC Output Frequency: 50/60Hz (Auto Sensing)
• Efficiency: >93%
• Transfer Time: 10ms (UPS) / 20ms (Appliance)

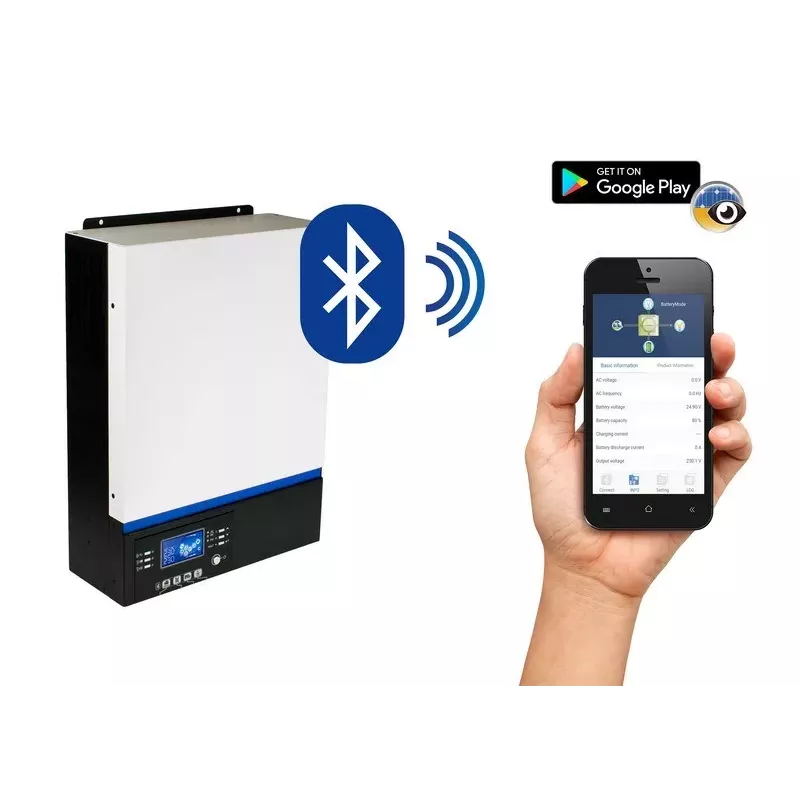

• Communication: RS232, USB, CAN, RS485, Dry Contact
• Protection: Overload, Over Temperature, Short Circuit, Battery Overcharge/Discharge
• Operating Temperature: -10°C to 50°C

Recommendations

For optimal performance, pair this inverter with a 24V battery bank and solar panels with a total capacity of up to 6000W. Ensure proper ventilation and installation by a qualified electrician. The inverter is compatible with most lead-acid and lithium batteries.
