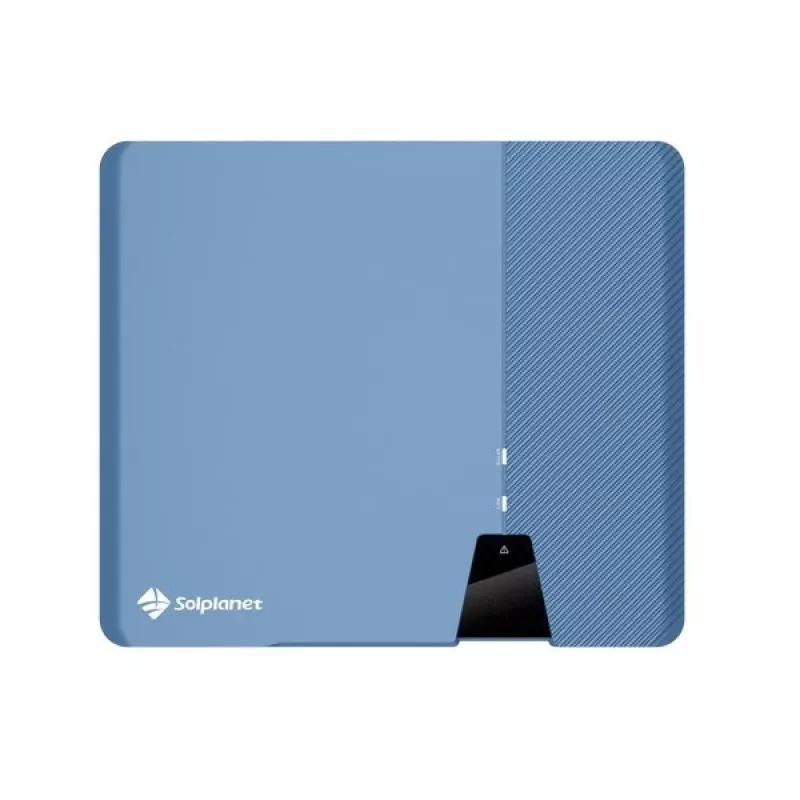

Solplanet ASW 4K-LT-G2 Pro 3-vaihe invertteri 4kW, 2 MPPT 16A, RS485

The Solplanet ASW 4K-LT-G2 Pro is a high-efficiency three-phase grid-tied inverter designed for residential and commercial solar installations. With a nominal output of 4kW and dual MPPT trackers rated at 16A each, it maximizes energy harvest from partially shaded or multi-orientation arrays. The integrated RS485 communication interface enables seamless monitoring and integration with energy management systems.

Advantages

This inverter offers a compact and lightweight design, easy installation with plug-and-play connectors, and robust performance across a wide input voltage range. Its dual MPPT ensures optimal power point tracking for each string independently, increasing overall system yield. The unit is fanless for silent operation and features a built-in DC switch for safety.

Suitable for

• Residential and small commercial solar systems up to 4kWp
• Three-phase grid connections
• Installations with multiple roof orientations or partial shading
• Systems requiring remote monitoring via RS485

Key specifications

• Nominal AC output: 4kW
• Number of MPPT trackers: 2
• Max input current per MPPT: 16A
• Communication: RS485
• Phase: Three-phase
• Efficiency: up to 97.5%
• Operating temperature range: -25°C to +60°C
• Dimensions: 430 x 370 x 140 mm
• Weight: 12.5 kg

Recommendations

For optimal performance, pair this inverter with high-efficiency monocrystalline panels and ensure proper ventilation. Use the Solplanet monitoring platform for real-time data access. Professional installation by a certified electrician is recommended.
