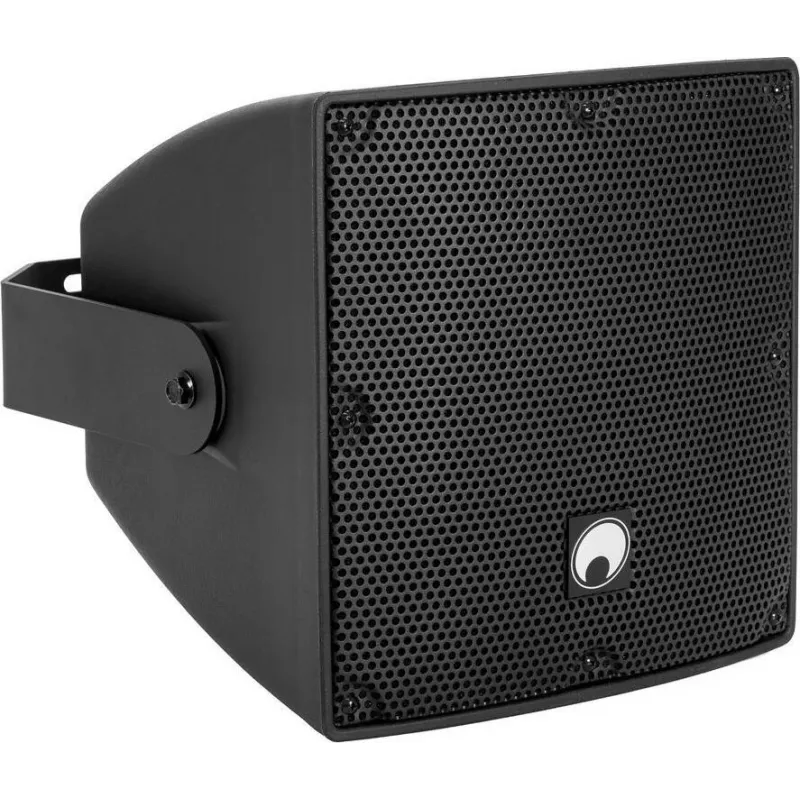

OMNITRONIC ODX-208TMB 100V uppokaiutin 8 tuuman 30W musta 11036971

Commercial sound installations often suffer from uneven coverage and complicated wiring. The OMNITRONIC ODX-208TMB solves this with a 100V line system that lets you connect multiple speakers over long distances using simple parallel wiring. This 2-way speaker delivers clear, intelligible audio for background music and announcements in shops, restaurants, offices, and public spaces.

Who is it for

This speaker is ideal for system integrators, electricians, and business owners who need reliable, scalable audio distribution. It suits retail stores, hospitality venues, schools, and corporate environments where consistent sound levels across multiple zones are required.

Main features

• 8-inch polypropylene woofer and 1-inch dome tweeter for balanced full-range sound
• 100V line transformer with power taps at 30W, 15W, 7.5W, and 3.75W for flexible system design
• Wide 100° x 100° dispersion for even coverage in large areas
• Durable ABS plastic housing with metal grille for long-lasting performance
• Adjustable wall bracket included for easy mounting and aiming
• Screw terminal connectors for secure, low-impedance wiring

Specifications

• Speaker type: 2-way passive installation speaker
• Woofer: 8" (20 cm) polypropylene cone
• Tweeter: 1" (2.5 cm) dome
• Power taps (100V): 30W / 15W / 7.5W / 3.75W
• Frequency response: 60 Hz – 20 kHz
• Sensitivity (1W/1m): 90 dB
• Maximum SPL: 105 dB
• Dispersion (H x V): 100° x 100°
• Input connectors: Screw terminals
• Housing material: ABS plastic
• Grille material: Metal
• Colour: Black
• Mounting: Adjustable wall bracket (included)

Tips

When designing a 100V system, ensure the amplifier's output power exceeds the sum of all speaker taps. Use high-quality speaker cable to minimise signal loss over long runs. For best coverage, mount speakers at least 2.5 metres high and angle them towards the listening area.
