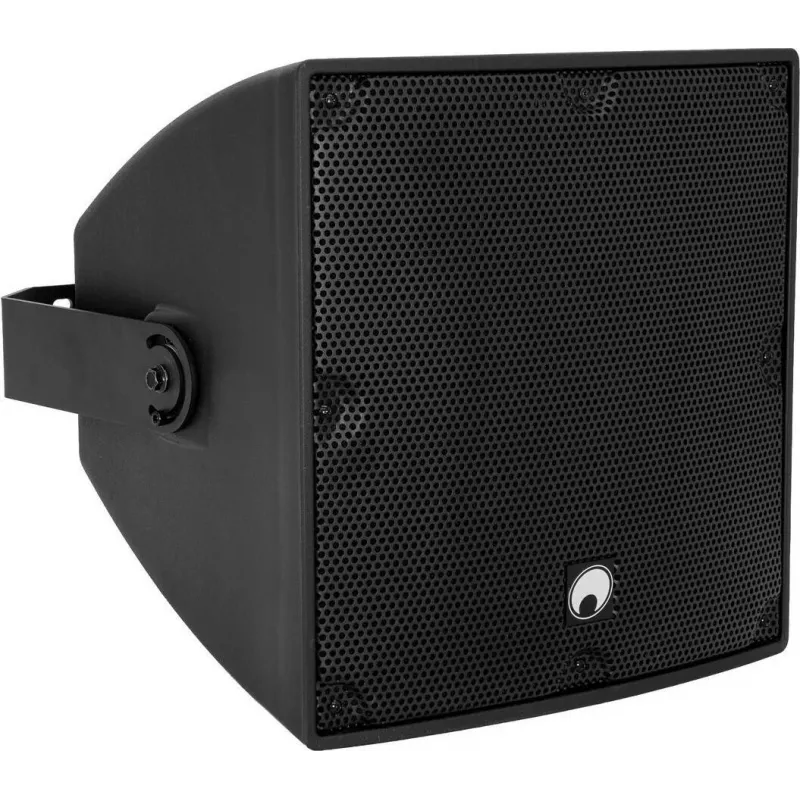

OMNITRONIC ODX-212TMB 100V uppokaiutin 2-tie 5,25" musta 11036973

With a maximum SPL of 101 dB from a compact ABS enclosure, the OMNITRONIC ODX-212TMB delivers clear, powerful audio for commercial installations. This 2-way 100V line speaker handles 40W RMS at 8 ohms, making it ideal for restaurants, retail spaces, and offices where background music and paging need to cut through ambient noise.

Overview

The ODX-212TMB is a wall-mountable installation speaker engineered for both 100V distributed audio systems and low-impedance setups. Its 5.25-inch woofer and 0.5-inch dome tweeter produce a balanced frequency response from 90 Hz to 20 kHz. The built-in 100V transformer offers four power taps—20W, 10W, 5W, and 2.5W—allowing flexible volume control across multiple zones. A screw terminal connection ensures secure wiring, while the included metal bracket simplifies mounting on walls or ceilings.

What stands out

• Dual-mode operation: 100V line or 8-ohm low impedance
• Wide 100° x 100° dispersion for even sound coverage
• Durable ABS plastic housing with metal grille
• Four selectable power taps for zoning flexibility
• Compact design blends into any decor

Technical details

• Speaker type: 2-way installation speaker
• Woofer: 5.25" (13 cm)
• Tweeter: 0.5" (1.3 cm) dome
• 100V power taps: 20W, 10W, 5W, 2.5W
• Low impedance power: 40W RMS @ 8 ohms
• Frequency response: 90 Hz – 20 kHz
• Sensitivity: 88 dB (1W/1m)
• Maximum SPL: 101 dB
• Dispersion: 100° horizontal x 100° vertical
• Connections: screw terminals
• Housing material: ABS plastic
• Grille material: metal
• Mounting: wall-mounted with included bracket
• Colour: black

Our verdict

The ODX-212TMB is a versatile and reliable choice for installers who need consistent coverage without bulky cabinets. Its high sensitivity and multiple power taps make it easy to integrate into any 100V system, while the robust construction ensures long-term performance.
