OMNITRONIC ROD-1283 aktiivinen pylväs-PA-järjestelmä 400W 12 inch subwooferilla ja Bluetoothilla 11039105

With a peak power output of 800 W and a maximum SPL of 120 dB, the OMNITRONIC ROD-1283 delivers club-level volume from a compact, portable column system. The active 2.1 configuration pairs a 12" plywood subwoofer with an 8-driver column for full-range sound that reaches down to 45 Hz.

Overview

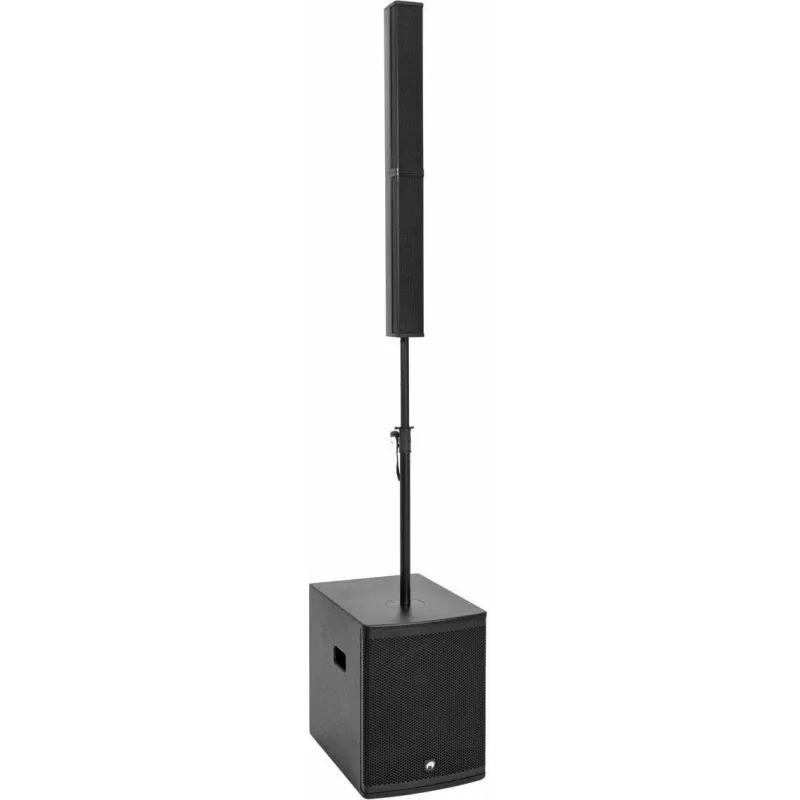

The ROD-1283 is a self-contained PA solution for live performances, DJ sets, presentations, and installations. The subwoofer houses a Class D amplifier rated at 400 W RMS, driving both the sub and the column through a Speakon connection. The column itself consists of eight 3" full-range drivers arranged vertically to provide 120° horizontal coverage, ensuring even sound distribution across the audience. A built-in DSP offers four presets—Music, Live, Speech, and DJ—to optimize the system for different content without external processing.

What stands out

• Powerful low end: The 12" subwoofer in a plywood enclosure delivers punchy bass with minimal resonance.
• Flexible connectivity: Two combo XLR/6.3 mm inputs accept microphones or line-level sources, while a stereo RCA/3.5 mm input and Bluetooth allow connection of playback devices. An XLR mix output lets you link additional systems or record the mix.
• Easy setup: The column sections lock together and mount on the subwoofer via an M20 threaded pole, with no external speaker cables needed.
• Built-in protection: Overload, short circuit, and limiter circuits safeguard the amplifier and drivers during demanding use.

Technical details

• System type: Active 2.1 column PA system
• Power output: 400 W RMS, 800 W peak
• Frequency response: 45 Hz – 20 kHz
• Maximum SPL: 120 dB
• Subwoofer driver: 12" (30 cm)
• Column drivers: 8 x 3" (7.6 cm) full-range
• Amplifier class: D
• DSP presets: Music, Live, Speech, DJ
• Inputs: 2 x Mic/Line (XLR/6.3 mm combo), 1 x Line (RCA/3.5 mm), Bluetooth
• Outputs: 1 x XLR mix out, 1 x Speakon (column)
• Bluetooth: A2DP
• Dispersion (column): 120° x 30° (H x V)
• Subwoofer enclosure: Plywood
• Column enclosure: Aluminum, plastic
• Pole mount: M20 thread
• Controls: Master volume, input gain, DSP mode selector
• Protection: Overload, short circuit, limiter

Our verdict

The ROD-1283 is a versatile and powerful column PA that punches above its size. With robust construction, comprehensive I/O, and DSP presets, it's ready for gigs, events, and fixed installations where space is limited but sound quality can't be compromised.
