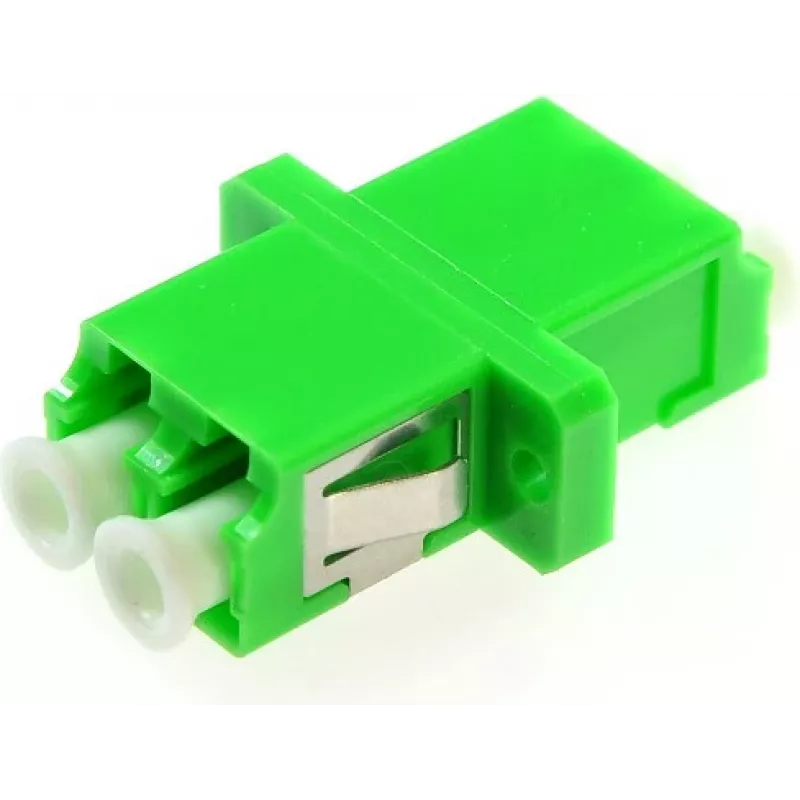

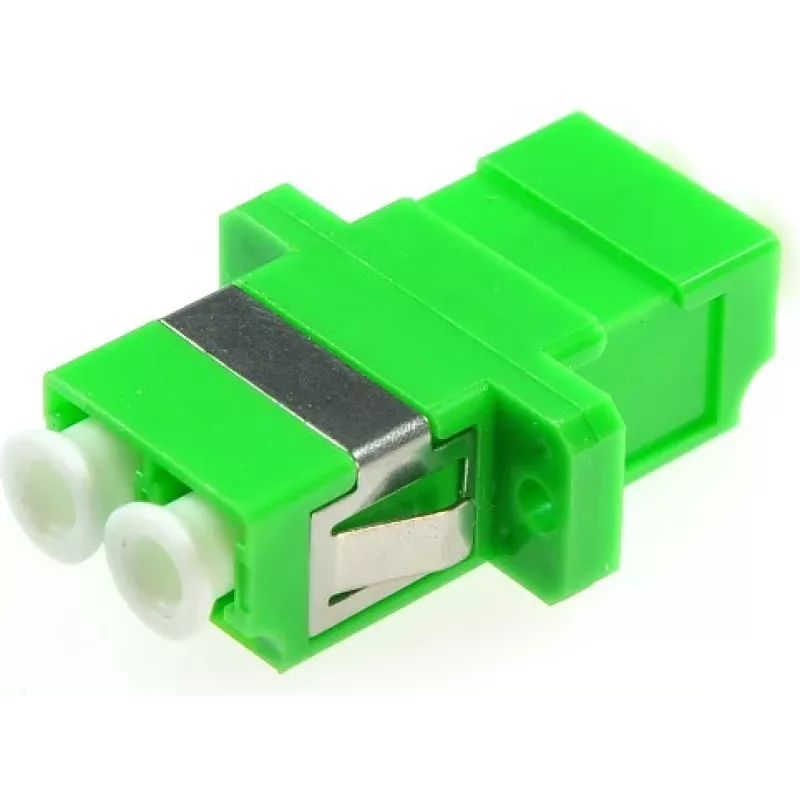

OPTIX Qoltec LC/APC Duplex Singlemode -kuituadapteri

Fiber optic adapter with LC/APC duplex configuration for single-mode networks, delivering reliable low-loss connections with an insertion loss of ≤0.2 dB and return loss ≥60 dB. The angled physical contact (APC) polish minimizes back reflections, making it ideal for high-speed data transmission in FTTx, LAN, WAN, data centers, and telecommunication systems.

Advantages

Precision zirconia ceramic ferrules ensure accurate fiber alignment and long-term durability, rated for over 1000 mating cycles. The green housing provides easy identification of APC connectors, while the flanged panel-mount design simplifies installation in patch panels, wall plates, and enclosures. Compliant with RoHS, IEC 61754-20, and TIA/EIA-604-10 standards, this adapter supports 1310 nm and 1550 nm wavelengths for versatile network applications.

Suitable for

• FTTx deployments requiring stable single-mode connections
• Data centers and telecommunication rooms with high-density fiber patching
• LAN and WAN backbone links using LC/APC terminations
• Panel and enclosure mounting in structured cabling systems

Key specifications

• Connector type: LC/APC to LC/APC (duplex)
• Fiber mode: Singlemode (SM)
• Insertion loss: ≤0.2 dB
• Return loss: ≥60 dB
• Ferrule material: Zirconia ceramic
• Housing material: Plastic (ABS)
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Durability: >1000 mating cycles
• Compliance: RoHS, IEC 61754-20, TIA/EIA-604-10
• Wavelength compatibility: 1310 nm, 1550 nm
• Mounting type: Flanged (panel mount)

Recommendations

For optimal performance, pair this adapter with LC/APC single-mode patch cords and ensure proper cleaning of connector end faces before mating. Use in controlled environments to maintain low insertion loss and high return loss over the product lifetime.
