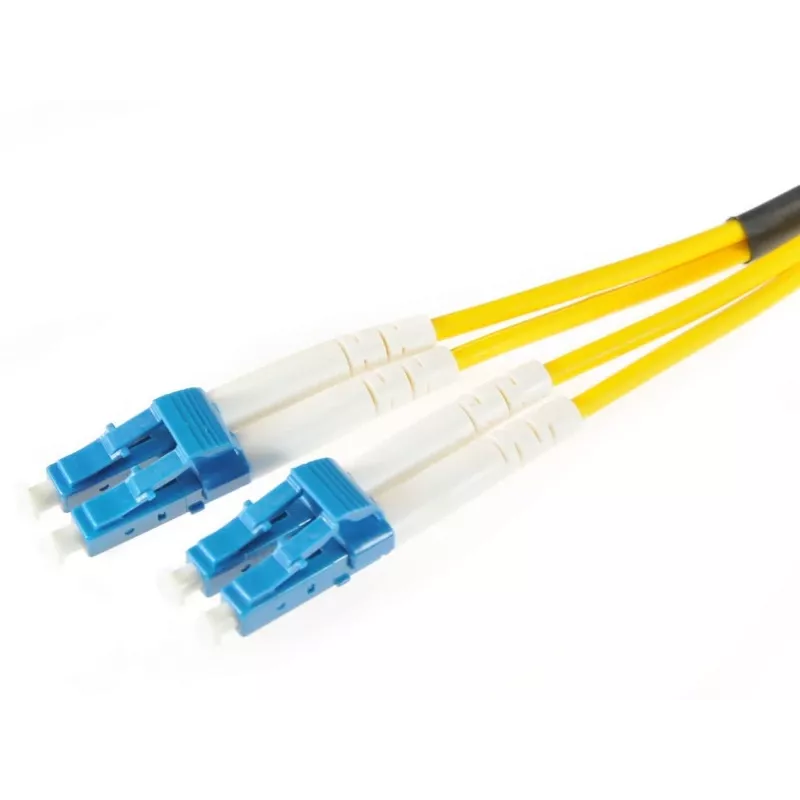

OPTIX yksimuotodupleksi kuituverkkokaapeli LC/UPC - LC/UPC 3 m LSZH keltainen

Engineered for high-performance optical networks, this single-mode duplex fiber patch cord delivers exceptional signal integrity with insertion loss ≤ 0.3 dB and return loss ≥ 50 dB. The 3-meter length and LC/UPC connectors on both ends make it a reliable choice for data centers, FTTH, and telecommunication links.

Overview

The OPTIX 12305 is a premium single-mode fiber optic patch cable featuring a 9/125 µm core/cladding diameter, optimized for 1310 nm and 1550 nm wavelengths. Its duplex design with two fibers ensures full-duplex communication, while the yellow LSZH jacket provides safety in fire-sensitive environments. The cable is compliant with RoHS, CE, IEC 61754-20, and TIA/EIA-604-10 standards.

What stands out

• Ultra-low insertion loss (≤ 0.3 dB) for minimal signal degradation
• High return loss (≥ 50 dB) to reduce reflections and ensure stable transmission
• LSZH (Low Smoke Zero Halogen) jacket for enhanced fire safety
• Durable 2.0 mm cable diameter with flexible routing
• Wide operating temperature range (-20°C to +70°C)

Technical details

• Cable Type: Fiber Optic Patch Cord
• Fiber Mode: Single-Mode (SM)
• Fiber Count: Duplex (2 Fibers)
• Connector Type (End A): LC/UPC
• Connector Type (End B): LC/UPC
• Cable Length: 3 meters
• Fiber Core/Cladding Diameter: 9/125 µm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Diameter: 2.0 mm
• Connector Polish: UPC (Ultra Physical Contact)
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 50 dB
• Wavelengths Supported: 1310 nm, 1550 nm
• Attenuation (1310 nm): ≤ 0.35 dB/km
• Attenuation (1550 nm): ≤ 0.25 dB/km
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Cable Color: Yellow
• Standards Compliance: RoHS, CE, IEC 61754-20, TIA/EIA-604-10

Our verdict

With its robust construction, premium connectors, and compliance with international standards, the OPTIX 12305 is an excellent choice for professionals seeking reliable single-mode connectivity in demanding network environments.
