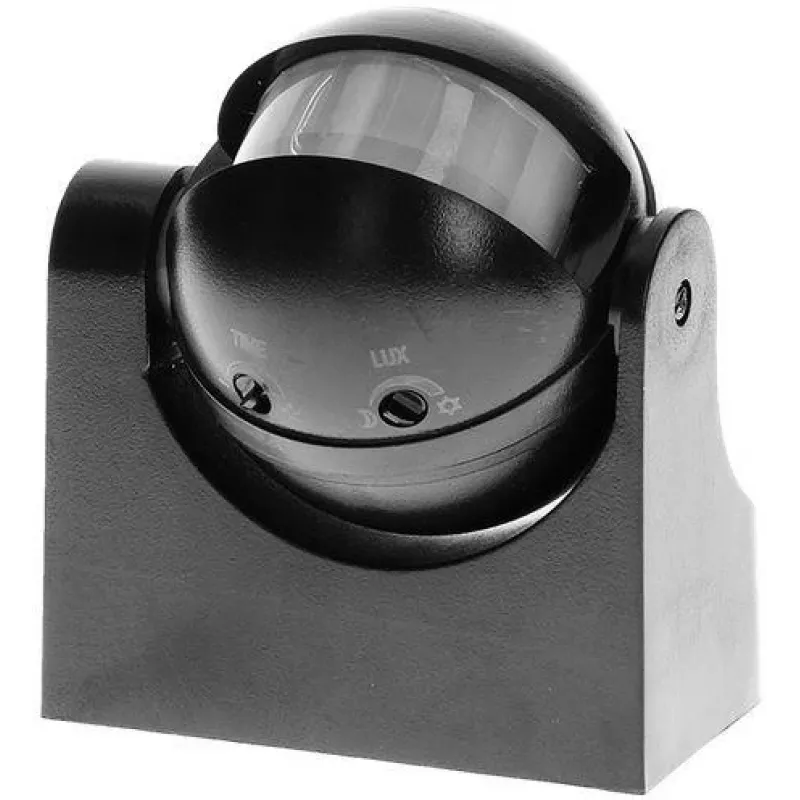

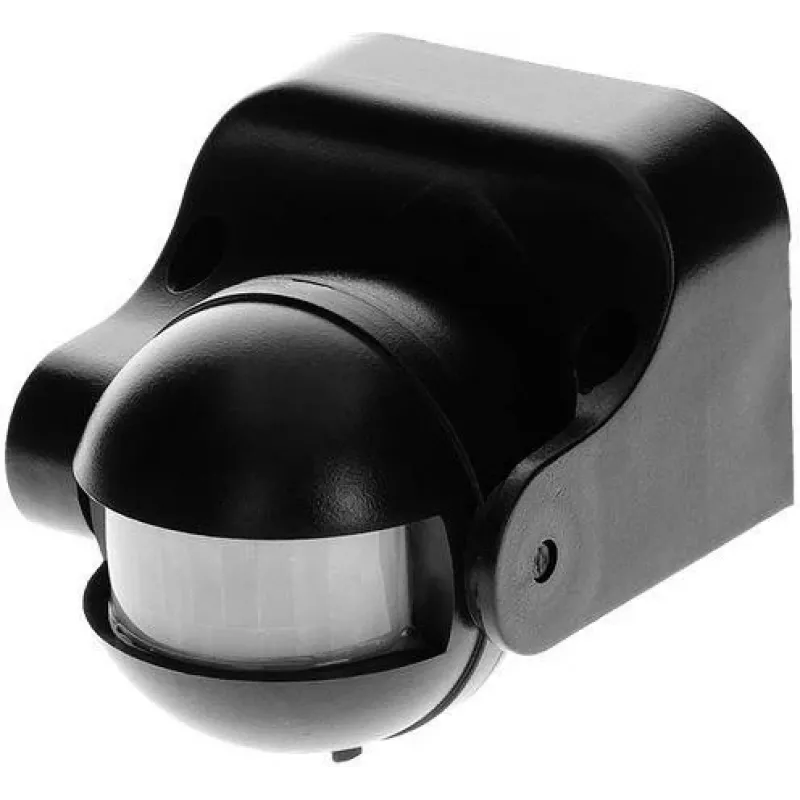

ORNO OR-CR-201/B PIR-liiketunnistin musta

The ORNO OR-CR-201/B is a high-quality passive infrared (PIR) motion sensor designed for reliable automatic lighting control in indoor and outdoor areas. With a detection angle of 180° and a maximum range of 12 meters, it ensures comprehensive coverage. The sensor is wall-mounted and features adjustable time delay and light sensitivity, making it versatile for various applications. Its robust IP44 rating provides protection against splashing water, suitable for covered outdoor use.

Advantages

Energy-saving automatic lighting control; easy installation and adjustment; durable polycarbonate housing; reliable detection even in challenging conditions.

Suitable for

• Corridors, staircases, and hallways
• Garages and basements
• Covered outdoor areas like terraces and entrances
• Warehouses and storage rooms

Key specifications

• Sensor Type: PIR (Passive Infrared)
• Detection Angle: 180°
• Detection Range: Max. 12 m (at <24°C)
• Power Supply: 230V AC, 50Hz
• Max. Incandescent Load: 1200W
• Max. LED/Fluorescent Load: 300W
• IP Rating: IP44
• Adjustable Time Delay: 10 s – 15 min
• Adjustable Light Sensitivity: 3 – 2000 LUX
• Recommended Mounting Height: 1.8 – 2.5 m
• Operating Temperature: -20°C to +40°C
• Colour: Black
• Material: PC (Polycarbonate)
• Power Consumption (Operation): <0.45W

Recommendations

For optimal performance, mount the sensor at the recommended height and avoid direct exposure to heat sources or air conditioning. Adjust the time delay and LUX settings according to your environment. Suitable for use with incandescent, LED, and fluorescent lamps within the specified load limits.
