OXT Mini WiFi relemoduuli 3-kanava Tuya T223

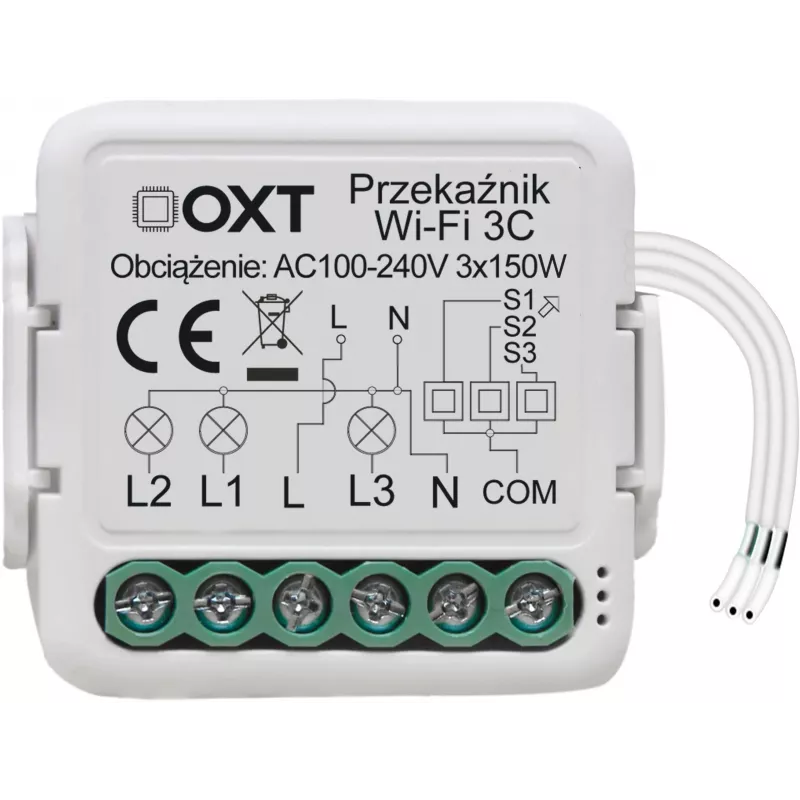

The OXT T223 is a compact 3-channel smart WiFi relay module designed for remote control of lighting, appliances, and other electrical devices. Powered by the Tuya Smart platform, it enables seamless integration with Amazon Alexa and Google Assistant for voice control. Ideal for home automation, this module fits into standard in-wall boxes and supports up to 10A per channel (30A total) with a wide input voltage range of AC 85-250V.

Advantages

Easy to install and configure via the Tuya Smart or Smart Life app. Features include remote ON/OFF, timer, schedule, and scene automation. The module is made from PC V0 fire retardant material for safety and has a standby power consumption of less than 0.5W.

Suitable for

• Smart home automation projects
• Remote control of lights, fans, and small appliances
• Retrofit installations in existing switch boxes

Key specifications

• Product Type: Smart WiFi Relay Module
• Number of Channels: 3
• Wireless Connectivity: Wi-Fi 2.4GHz (IEEE 802.11 b/g/n)
• Smart Home Ecosystem: Tuya Smart / Smart Life
• Voice Control: Amazon Alexa, Google Assistant
• Input Voltage: AC 85-250V
• Max Current per Channel: 10A
• Max Total Current: 30A
• Max Load Power per Channel: 2200W
• Max Total Load Power: 6600W
• Operating Temperature: -20°C to 50°C
• Material: PC V0 Fire Retardant

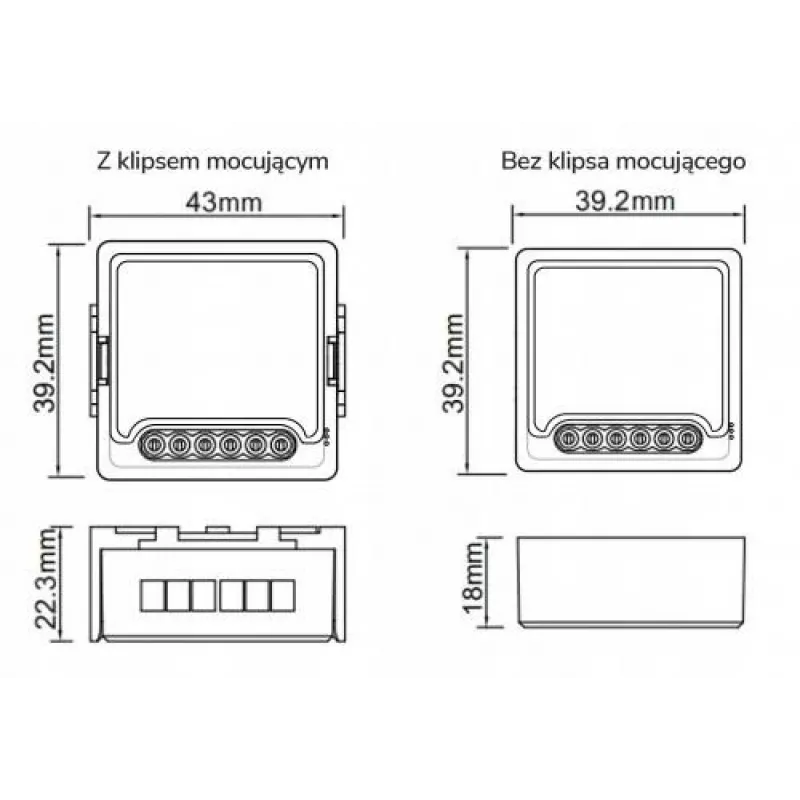

• Installation Type: In-wall box
• Standby Power Consumption: <0.5W
• Security Protocol: WPA/WPA2
• Certifications: CE, RoHS

Recommendations

For best performance, ensure a stable 2.4GHz WiFi network. Compatible with standard single-gang wall boxes. Professional installation recommended for high-power loads.
