OXT T228 Mini WiFi rullaverho-ohjain 2-kanava Tuya Smart

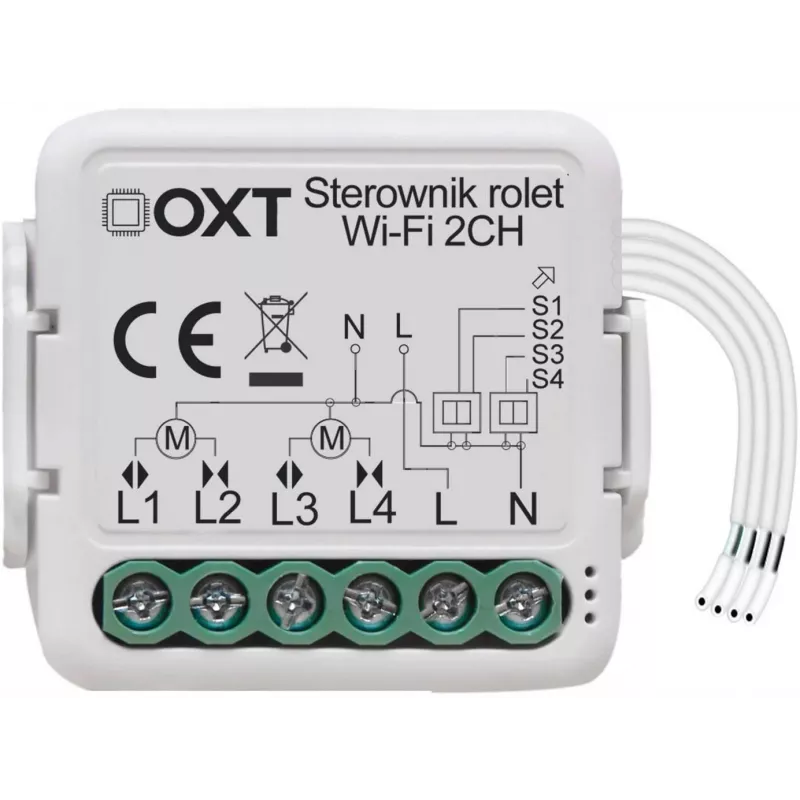

The OXT T228 Mini WiFi Roller Shutter Controller is a compact and intelligent device designed for controlling two independent roller shutters, blinds, or projection screens via the Tuya Smart or Smart Life app. With built-in Wi-Fi 2.4GHz connectivity, it enables remote control, scheduling, and voice commands through Amazon Alexa and Google Assistant. The flush-mount design fits standard junction boxes, making it ideal for both new installations and retrofits.

Advantages

This controller offers seamless integration into smart home ecosystems, allowing you to manage your window coverings from anywhere. Its compact size and easy installation save space and effort. The two independent channels provide individual control for each shutter, while advanced features like timer, scene, and group control enhance convenience and energy efficiency.

Suitable for

• Electric roller shutters and blinds
• Projection screens
• Smart home automation projects
• Residential and commercial buildings

Key specifications

• Wireless Connectivity: Wi-Fi 2.4GHz (IEEE 802.11 b/g/n)
• Smart Home Platform: Tuya Smart / Smart Life App
• Voice Assistant Compatibility: Amazon Alexa, Google Assistant
• Number of Channels: 2 (Independent)
• Input Voltage: AC 100-240V, 50/60Hz
• Max Load Current: 2 x 3A
• Max Output Power: 600W (Resistive Load)
• Operating Temperature: -10°C to +40°C
• Operating Humidity: 5% - 95% RH (Non-condensing)

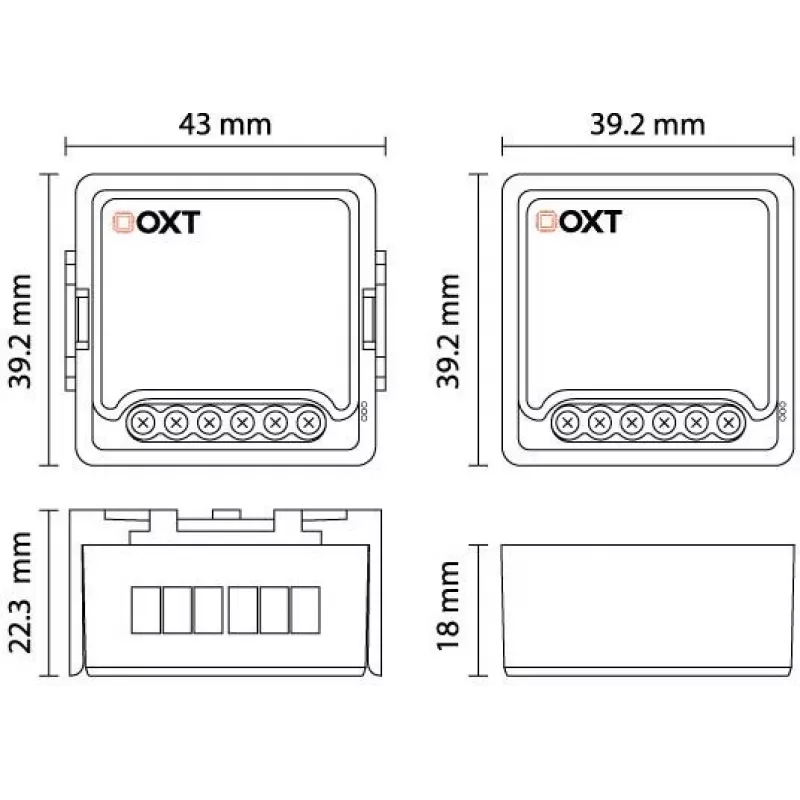

• Mounting Type: Flush-mount (in standard junction box)
• Housing Material: PC V0 (Fire-retardant)

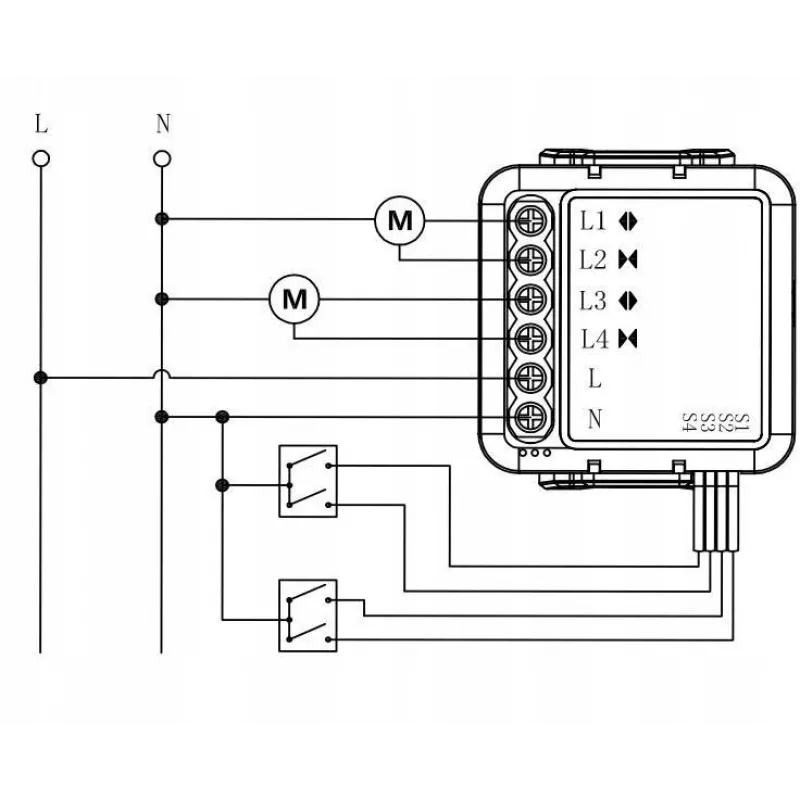

• Control Methods: Mobile App, Manual Wall Switch (Momentary)
• Key Features: Timer, Schedule, Scene Control, Group Control, Blind Calibration
• Standby Power Consumption: < 0.5W
• Wireless Range: Up to 30m (Indoor, Line of Sight)
• Certifications: CE, RoHS

Recommendations

For optimal performance, ensure a stable 2.4GHz Wi-Fi network. The device is compatible with standard momentary wall switches. Always follow local electrical codes during installation.
