InLine S-76602U-1.83 Patch-kaapeli, kulmikas (molemmat päät alaspäin), S/FTP PiMf, Cat.6, 250 MHz, PVC, 1,83 m

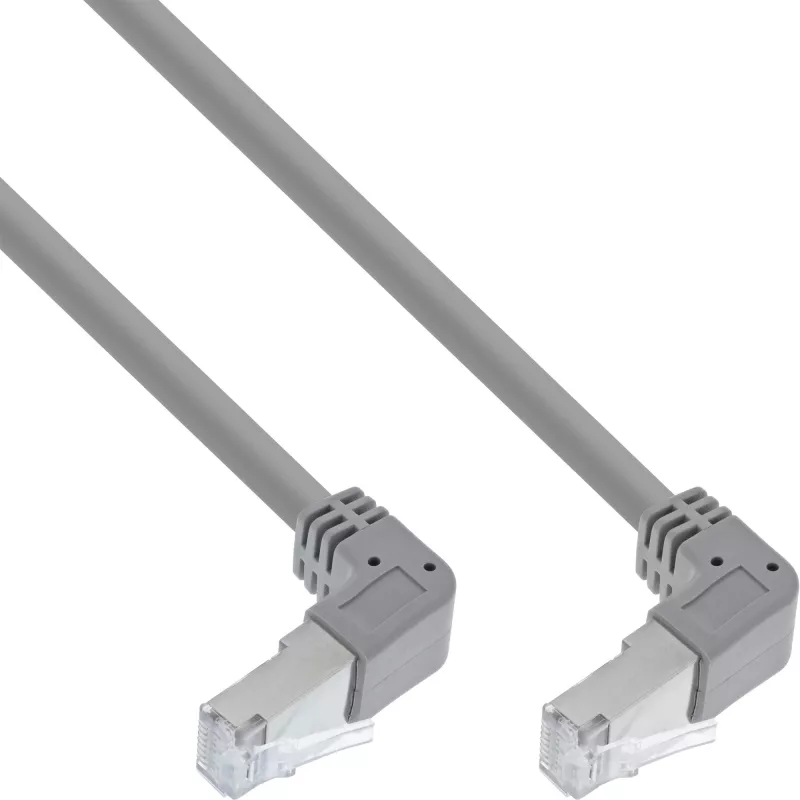

The InLine S-76602U-1.83 is a Cat.6 S/FTP patch cable with angled RJ45 plugs on both sides (angled down). It supports Gigabit connections up to 250 MHz and features a PVC jacket, AWG26 full copper wires, and 1:1 pin assignment according to EIA/TIA 568B.

Key features

• Cat.6 S/FTP (PiMf) cable with overall braid shielding and pairs in metal foil
• 2x RJ45 (8P8C) moulded plugs with moulded boot and latch protection
• Angled RJ45 plugs on both sides (angled down)
• Gigabit compatible (1 Gb/s) at maximum frequency of 250 MHz
• AWG26 full copper wires
• 1:1 pin assignment according to EIA/TIA 568B
• UL94V-2
• PoE/PoE+/PoE++: Yes
• Bulk bag with EAN code

Specifications

• Brand: InLine
• MPN: S-76602U-1.83
• Product colour: Grey
• Type: Cat.6
• Length: 1.83 m
• Shielding: S/FTP (PiMf)
• Conductor material: CU (copper)
• Outer diameter: 6.0 mm
• Design: Round cable
• Sheath: PVC
• Side A: RJ45 plug angled
• Side B: RJ45 plug angled
• Data transmission rate: 1 Gb/s
• UL: Yes
• UL E-number: E310848
• Country of origin: Taiwan
