Patch-paneeli EFB Elektronik 37666.1M

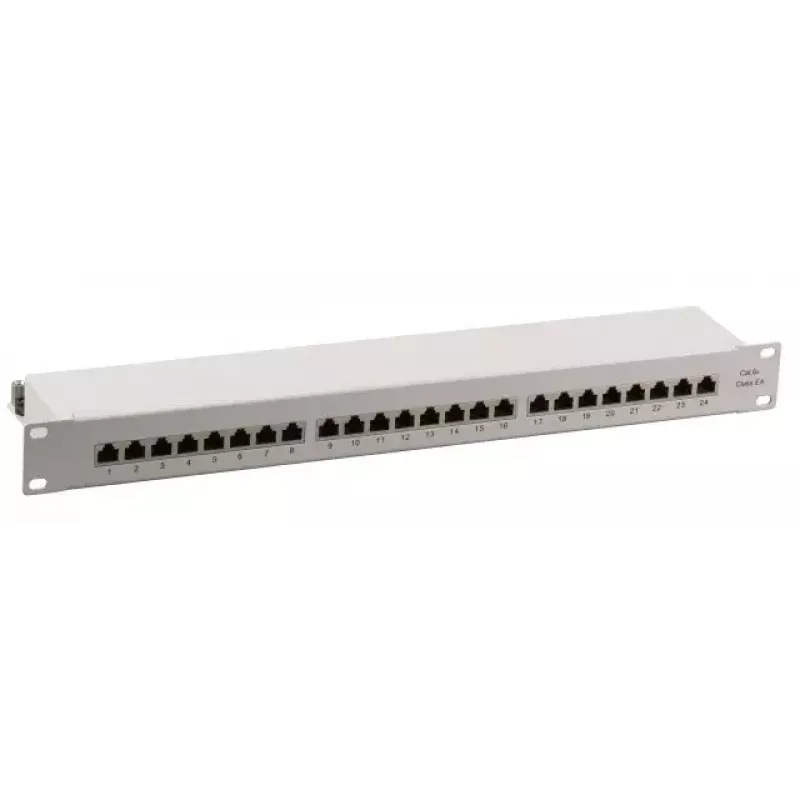

The EFB Elektronik 37666.1M patch panel is a 1U rack-mountable network panel designed to organize and terminate Ethernet cabling in server rooms and communications cabinets. It provides 24 RJ-45 ports with gold plating on the connector contacts to improve conductivity and support high-speed data transfers up to 10000 Mbit/s. The panel is finished in grey and sized to standard 19-inch rack dimensions, offering a compact solution for structured cabling installations.

Advantages

This patch panel centralizes copper Ethernet connections in a single 1U unit, reducing cable clutter and simplifying network management. Gold-plated RJ-45 contacts enhance signal integrity and corrosion resistance, contributing to reliable high-speed transmission. The panel’s standard rack width and compact height allow straightforward installation in common server racks and cabinets while maintaining a professional appearance.

Suitable for

• Data center rack installations and network cabinets
• SMB and enterprise LAN patching
• Structured cabling projects and telecommunications closets
• Laboratory or test bench network setups

Key specifications

• Ports: 24 RJ-45 ports
• Maximum data transfer rate: 10000 Mbit/s
• Connector contact finish: gold plating
• Mounting: 1U, 19-inch rack compatible
• Dimensions (W×H×D): 483 mm × 44.5 mm × 112 mm
• Color: grey

How to use

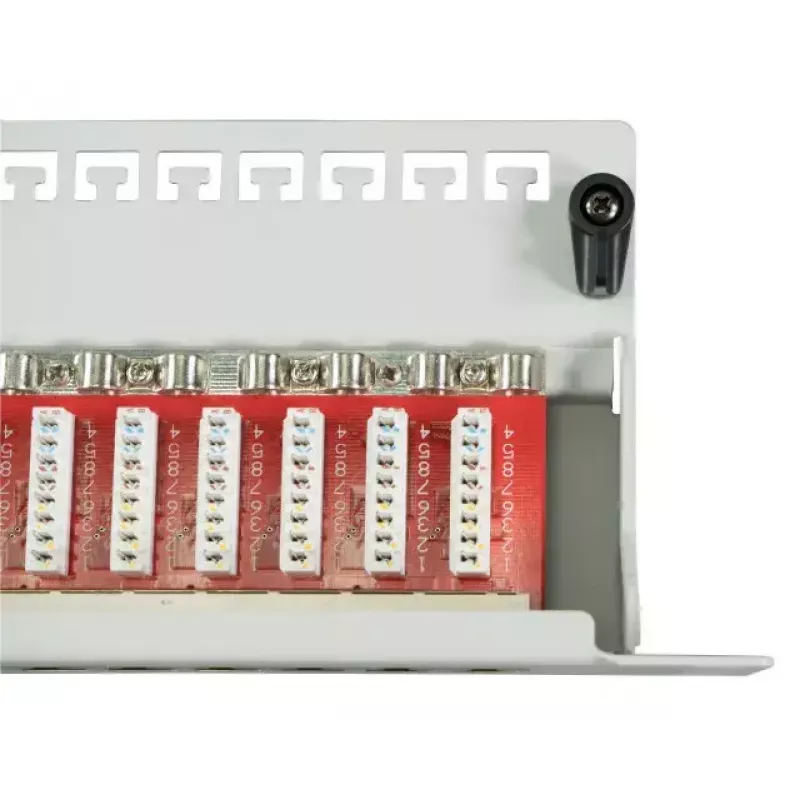

Mount the patch panel into a standard 19-inch rack occupying a single U of rack space. Terminate individual Ethernet cables to the rear-side punch-down or IDC termination points according to the chosen wiring standard (T568A or T568B). Route patch cords to the front RJ-45 jacks for connection to switches, patch panels, or end devices. Label ports as required to maintain organized documentation and facilitate troubleshooting.

Recommendations

To ensure optimal performance, pair the panel with compatible cable categories and maintain proper cable management to avoid excessive bend radii. Regularly inspect gold-plated contacts for contamination and use appropriate dust covers or blanking panels in unused rack positions to preserve signal quality.
