Patch-paneeli EFB Elektronik VSB-FP-24SC-D-V

The EFB Elektronik VSB-FP-24SC-D-V is a 1U rack-mount front panel for fiber cable management, equipped with 24 SC duplex ports and LC quad breakouts. Designed for standard 1U splice and breakout boxes, the front panel provides horizontally shifted breakouts to simplify routing and maintain organized fiber runs in data centers and telecommunication racks.

Advantages

This patch panel supports high-density fiber termination with 24 SC duplex ports and integrated LC quad breakouts for flexible connector options. The 1U form factor ensures compatibility with standard racks and splice/breakout boxes, while the horizontally shifted breakouts reduce cable bend and improve access during installation and maintenance. Constructed for professional networking environments, it facilitates orderly cable management and reliable connector placement.

Suitable for

• Data center fiber distribution and termination
• Telecommunication rack installations
• Splice and breakout box integration in 1U spaces
• Patch field consolidation and organized fiber routing

Key specifications

• Brand: EFB Elektronik
• Model / MPN: VSB-FP-24SC-D-V
• EAN: 4049759228446
• Form factor: 1U rack-mount front panel
• Ports: 24 × SC Duplex with LC Quad breakouts
• Compatibility: Standard 1U splice and breakout boxes

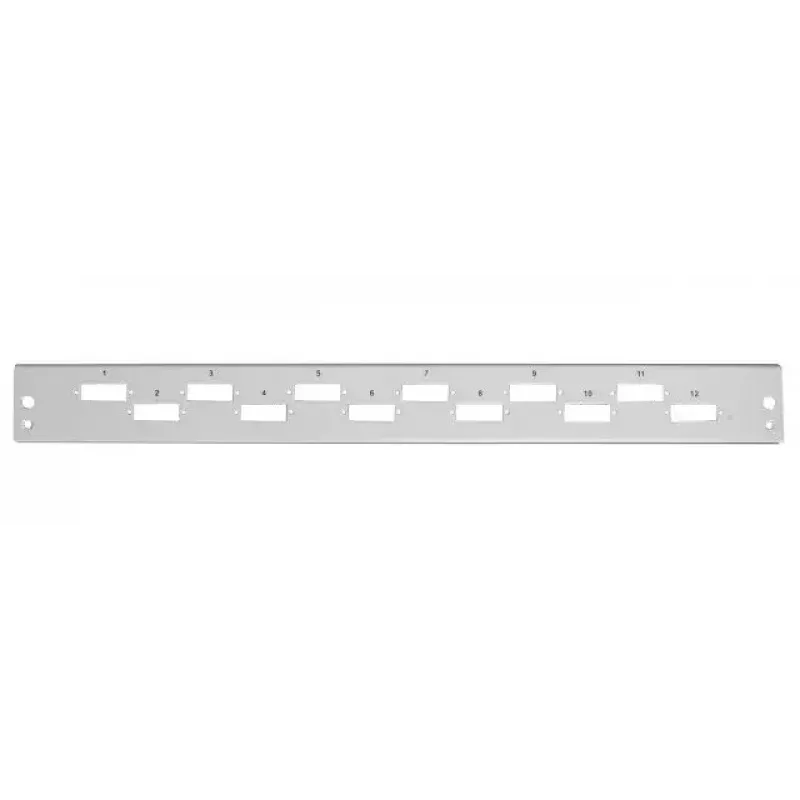

• Breakout orientation: Horizontally shifted

How to use

Mount the panel into a standard 19" 1U rack space and secure it with appropriate rack screws. Route fiber cables into the splice or breakout box behind the panel, perform splicing or connector termination as required, and guide the duplex SC and LC quad breakout connectors into the front ports. Ensure bend-radius protection and tidy cable ties or management trays to maintain signal integrity and ease future access.

Recommendations

Install bend-radius protectors and label ports for clear identification. Use compatible splice trays and follow standard fiber-installation guidelines to avoid excessive stress on fibers and connectors.
