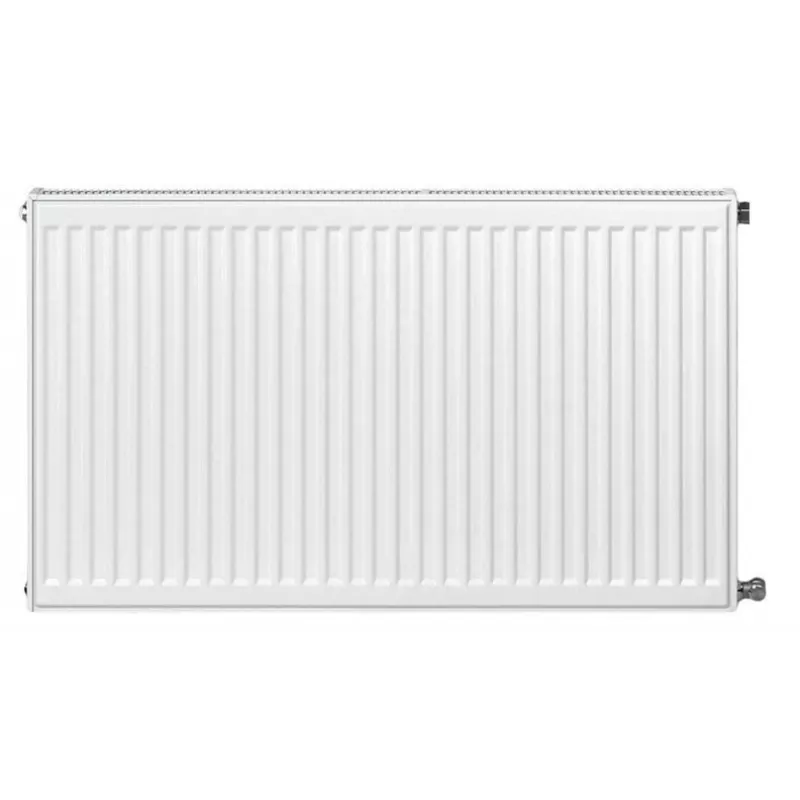

Patteri Klasik-R 22 550x1200 mm valkoinen

The RADIATOR KLASIK-R 22 550x1200 mm is a high-quality panel radiator designed for efficient central heating. With Type 22 construction (double panel, double convector), it delivers a heat output of 2850 W (75/65/20°C), making it suitable for medium to large rooms. Its compact dimensions (550 mm height, 1200 mm length, 100 mm depth) allow flexible installation. The radiator is made from cold-rolled steel sheet with a durable cataphoretic dip coating and powder-coated finish in white (RAL 9016). It features side connections with 4 x G1/2" internal threads, maximum operating pressure of 1.0 MPa (10 bar), and maximum operating temperature of 110 °C. The water volume is 6.5 liters. The radiator complies with EN 442 and comes with a 10-year manufacturer warranty. Included accessories: air vent, blanking plug, and mounting set.

Advantages

High heat output, robust construction, corrosion protection, easy wall mounting, long warranty.

Suitable for

• Central heating systems in residential and commercial buildings
• Rooms requiring efficient and reliable heat distribution
• Replacement or new installations

Key specifications

• Type: Panel Radiator Type 22
• Height: 550 mm
• Length: 1200 mm
• Depth: 100 mm
• Material: Cold-rolled Steel Sheet
• Connection: Side, 4 x G1/2" Internal Thread
• Max. Operating Pressure: 1.0 MPa (10 bar)
• Max. Operating Temperature: 110 °C
• Heat Output (75/65/20°C): 2850 W
• Colour: White (RAL 9016)
• Water Volume: 6.5 L
• Mounting: Wall Mounting
• Standard: EN 442
• Warranty: 10 Years

Recommendations

Ensure compatibility with your heating system's pressure and temperature. Professional installation recommended.
