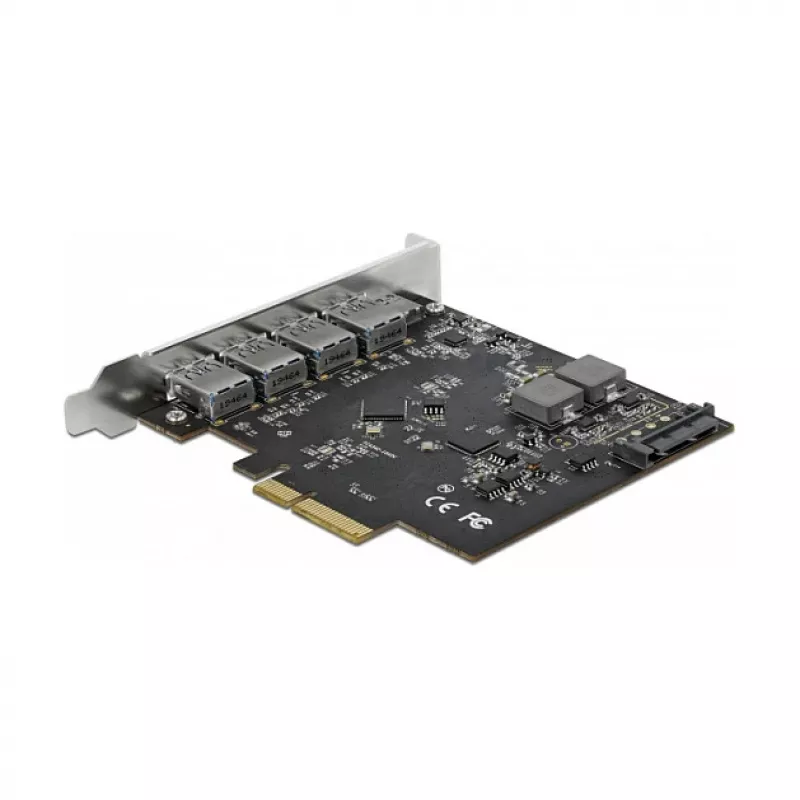

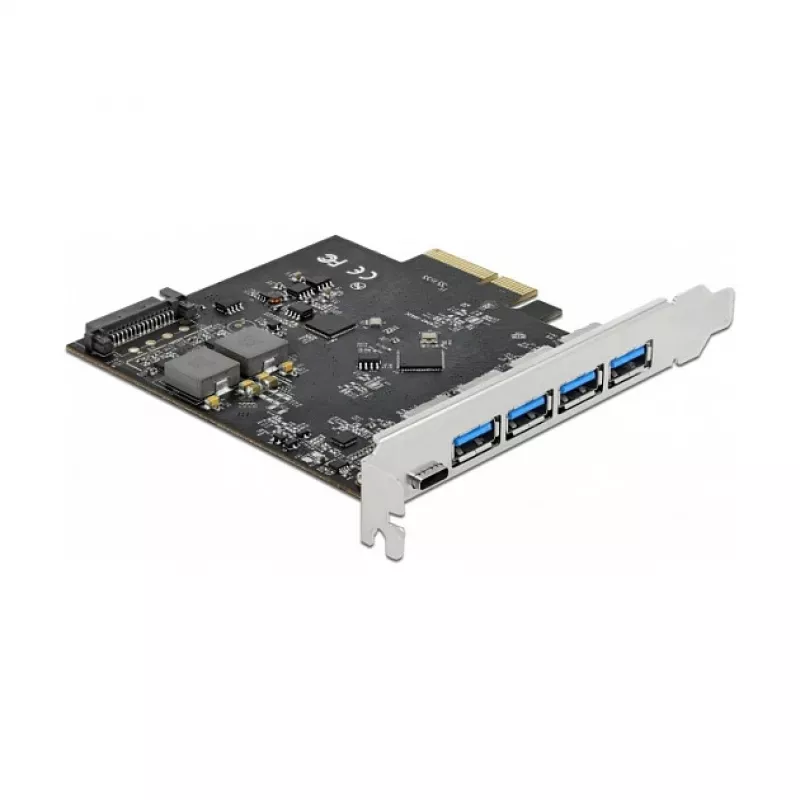

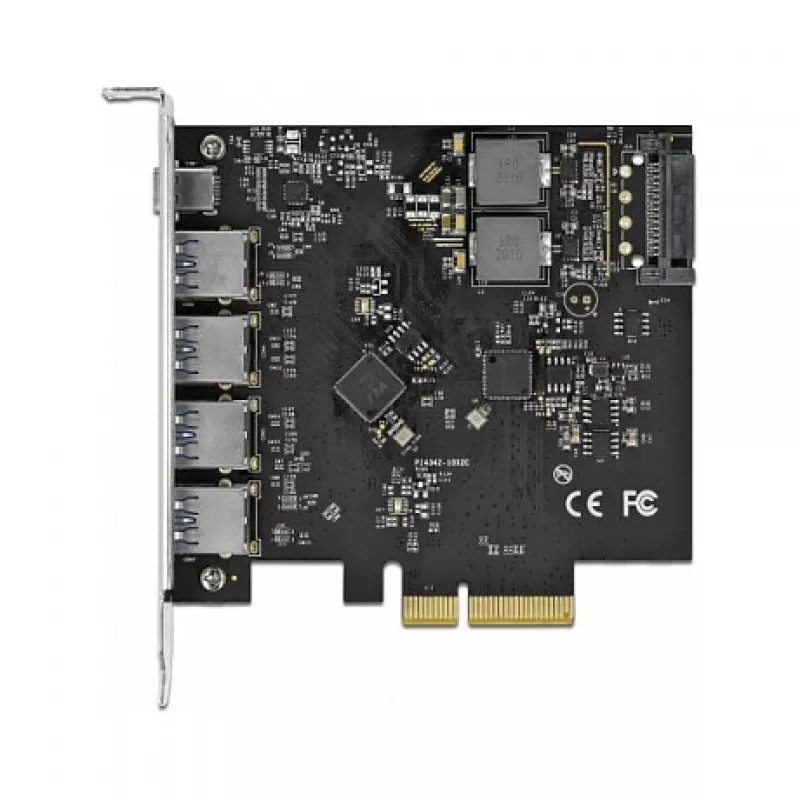

PCI Express x4 -kortti DeLOCK 89026

This PCI Express x4 Card DeLOCK 89026 expands a PC with five external USB 3.2 ports: one USB Type-C and four USB Type-A ports. The card uses a PCIe host interface and provides USB 3.2 Gen 2 output with up to 10 Gbps per port. It requires a SATA 15-pin power connector and is compatible with Windows 10 and Windows Server 2016.

Advantages

The card supplies one USB-C and four USB-A connectors on a single PCIe x4 card, enabling simultaneous connections of docking stations, card readers, external enclosures and other USB peripherals. Each port supports up to 10 Gbps data transfer rate and the additional SATA power connector ensures stable power delivery under load.

Suitable for

Key specifications

How to use

Install the card into an available PCIe x4 (or higher) slot on the desktop motherboard. Connect the SATA 15-pin power cable from the power supply to the card. After physical installation, boot the system and install drivers if required by the operating system. Connect USB devices to the external USB-C or USB-A ports and verify device recognition in the OS.

Recommendations

For reliable performance, use a stable SATA power connection and place the card in a PCIe x4 or higher slot. Ensure Windows 10 or Windows Server 2016 drivers are up to date. If multiple high-bandwidth devices are connected simultaneously, monitor system load to avoid saturation of available host bandwidth.
